SELECT A DIAGRAM

01 - Cabinet Parts

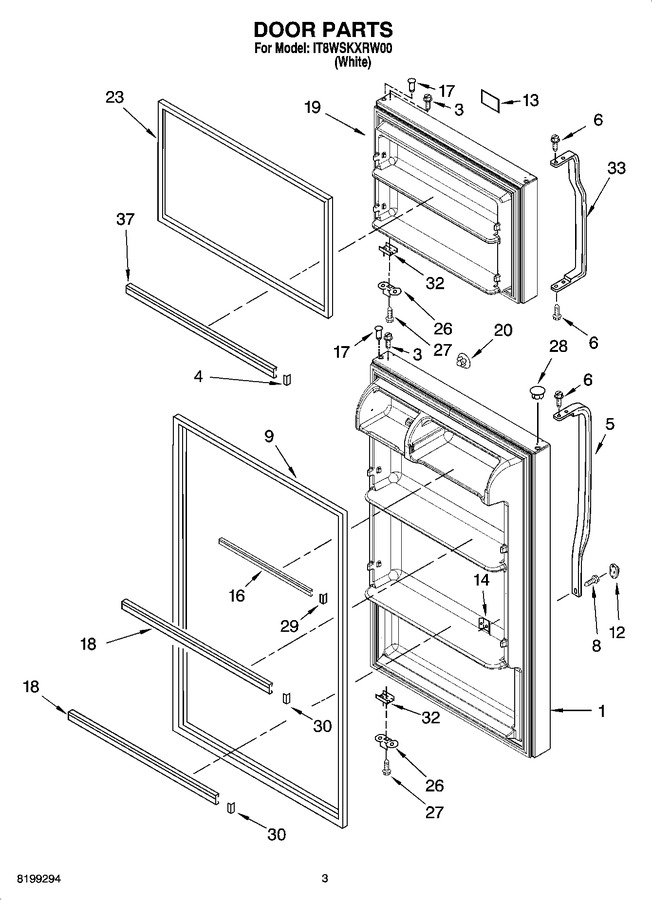

02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2263256W		Refrigerator Door Panel (includes Illus. 9,14 17 & 32)		Appelez-nous	-
3	WP8281206		Screw   (Replaces: 8281206)				$ 8.37
4	WP2156003		Plug-trim   (Replaces: 2156003)			Immediately	$ 13.25
5	WP2221946W		Handle, Refrigerator   (Replaces: 2221946W)			Immediately	$ 130.11
6	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.55
8	WP8281146		Screw   (Replaces: 8281146)				$ 8.18
9	WP2319264T		Door Gasket, Magnetic   (Replaces: 2263258)			Immediately	$ 192.71
12	WP2202819W		Screw Cover   (Replaces: 2202819W)			Immediately	$ 8.14
13	2302439W		Nameplate		Appelez-nous	-
14	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.88
16	W11129820		Trim, Door Shelf (upper)   (Replaces: 2264785)			Immediately	$ 127.34
17	WP2183003		Thimble   (Replaces: 2262054)				$ 8.14
18	WP2266738		Trim, Door (2)   (Replaces: 2263259)				$ 111.69
19	2263254W		Freezer Door Panel (includes Illus. 17,23 & 32)		Appelez-nous	-
20	WP2189000		Hole Plug   (Replaces: 2189000)			Immediately	$ 7.77
23	WP2319263T		Door Gasket, Magnetic   (Replaces: 2263257)			Immediately	$ 169.53
26	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
27	WP488921		Screw   (Replaces: 488921)			Immediately	$ 8.24
28	WP2212648		Hole Plug (2)   (Replaces: 2212648)			Immediately	$ 8.19
29	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 8.03
30	WP2195916K		Plug, Trim   (Replaces: 2195916)			Immediately	$ 13.18
32	2183000		Tap Plate				$ 36.19
33	WP2202098		Handle, Freezer   (Replaces: 2202098)				$ 156.82
37	WP2266727		Trim-door (2)   (Replaces: 2263260)			Immediately	$ 92.50

    View Diagram in Separate Window       Print Part List
