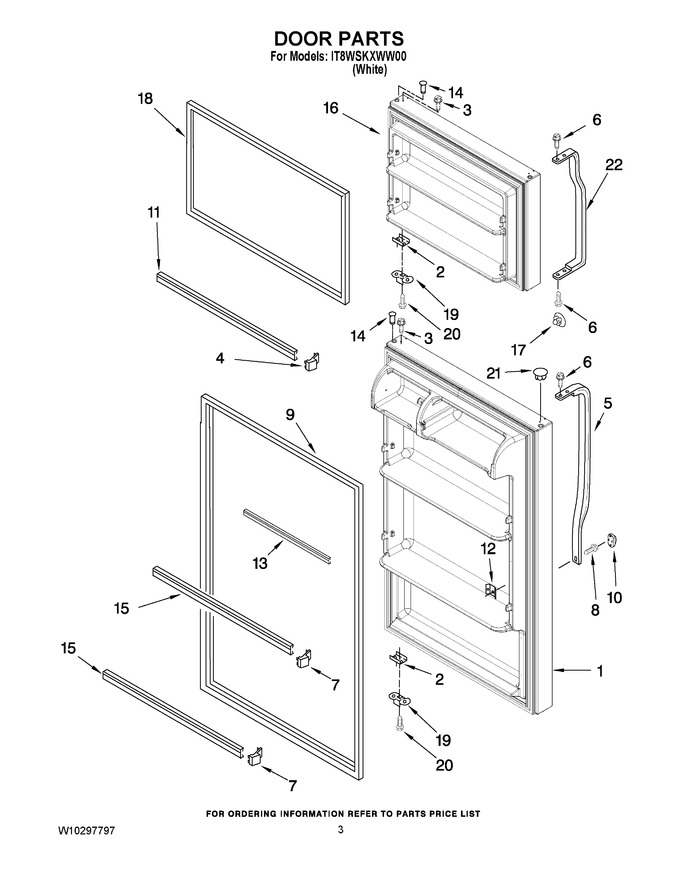

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2263256W		Refrigerator Door (includes Illus. 2, 9, 12 & 14) (white)		Appelez-nous	-
2	2183000		Tap Plate				$ 36.19
3	WP8281206		Screw   (Replaces: 8281206)				$ 8.37
4	WP2156003		Endcap, Trim   (Replaces: 2156003)			Immediately	$ 13.25
5	WP2221946W		Handle, Refrigerator   (Replaces: 2221946W)			Immediately	$ 130.11
6	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.55
7	WP2195916K		Endcap, Trim   (Replaces: 2195916)			Immediately	$ 13.18
8	WP8281146		Screw   (Replaces: 8281146)				$ 8.18
9	WP2319264T		Door Gasket, Magnetic   (Replaces: W10190032)			Immediately	$ 192.71
10	WP2202819W		Screw Cover   (Replaces: 2202819W)			Immediately	$ 8.14
11	WP2266727		Trim, Door Narrow   (Replaces: 2266727)			Immediately	$ 92.50
12	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.88
13	W11129820		Trim, Door Shelf (upper)   (Replaces: W10234242)			Immediately	$ 127.34
14	WP2183003		Thimble   (Replaces: 2262054)				$ 8.14
15	WP2266738		Trim, Door (wide)   (Replaces: 2266738)				$ 111.69
16	2263254W		Freezer Door (includes Illus. 11,14 & 18) (white)		Appelez-nous	-
17	WP2189000		Hole Plug, Handle   (Replaces: 2189000)			Immediately	$ 7.77
18	WP2319263T		Door Gasket, Magnetic   (Replaces: W10190031)			Immediately	$ 169.53
19	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
20	WP488921		Screw   (Replaces: 488921)			Immediately	$ 8.24
21	WP2212648		Hole Plug   (Replaces: 2212648)			Immediately	$ 8.19
22	WP2202098		Handle, Freezer   (Replaces: 2202098)				$ 156.82
