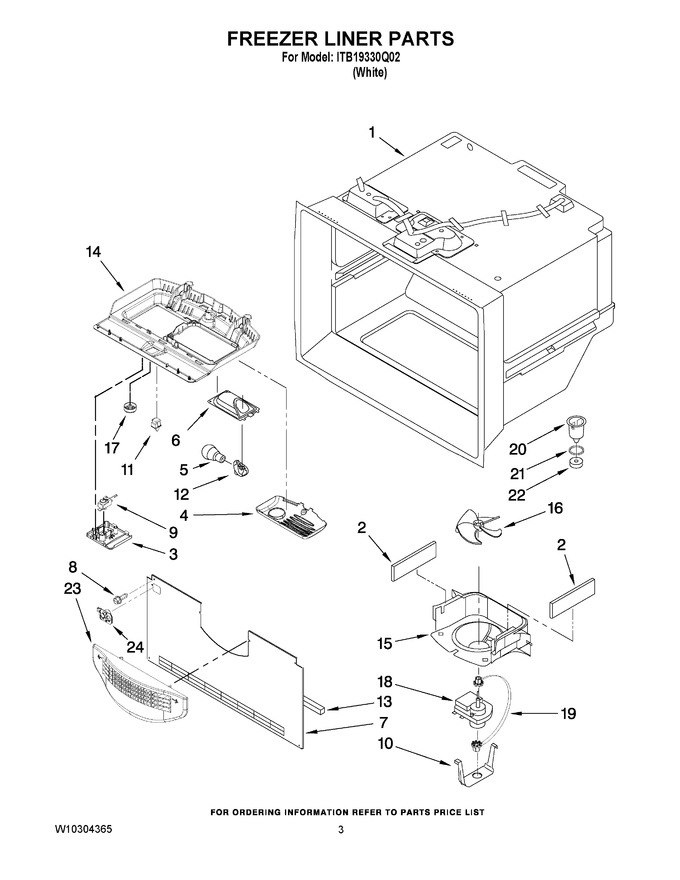

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not Aseviceable Part) |
|
- | |||||
| 2 | W10856123 | Gasket, Foam (2) (Replaces: A3189392) |
|
Immediately | $ 7.68 | ||||
| 3 | 12476101 | Panel, Fz Control |
|
- | |||||
| 4 | 12476302 | Cover, Light |
|
- | |||||
| 5 | W11679940 | Bulb, Light (Replaces: W10194422V) |
|
Immediately | $ 11.30 | ||||
| 6 | W11702858 | Housing (Replaces: 12476401V) |
|
$ 85.82 | |||||
| 7 | 12226107 | Cover, Evaporator |
|
$ 27.60 | |||||
| 8 | WP489349 | Screw (8) (Replaces: 12990101) |
|
Immediately | $ 7.88 | ||||
| 9 | WP67003000 | Control, Fz Temp (Replaces: 12351008) |
|
Immediately | $ 184.98 | ||||
| 10 | 13058002 | Clip, Motor |
|
$ 12.66 | |||||
| 11 | W11396033 | Switch, Light (Replaces: 12466105) |
|
Immediately | $ 37.30 | ||||
| 12 | W11447232 | Socket (Replaces: 12570701V) |
|
Immediately | $ 13.21 | ||||
| 13 | W11451451 | Gasket, Bottom (Replaces: A3189397) |
|
$ 12.41 | |||||
| 14 | 12476002 | Module, Freezer |
|
$ 60.80 | |||||
| 15 | WPW10167023 | Shroud, Evaporator (Replaces: 13057901) |
|
Immediately | $ 66.28 | ||||
| 16 | WP2169142 | Blade (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 17 | 12476209 | Knob, Fz Control |
|
- | |||||
| 18 | WPW10128551 | Motor, Evaporator (Replaces: W10128551) |
|
Immediately | $ 78.75 | ||||
| 19 | W10121318 | Grommet |
|
$ 48.38 | |||||
| 20 | W10815413 | Funnel, Drain (Replaces: D7753903) |
|
Immediately | $ 49.05 | ||||
| 21 | WPB8381501 | Gasket (Replaces: B8381501) |
|
$ 7.41 | |||||
| 22 | WPM0500703 | Seal (Replaces: M0500703) |
|
$ 10.92 | |||||
| 23 | WPW10175909 | Grille, Freezer (Replaces: 13024803) |
|
Immediately | $ 85.72 | ||||
| 24 | W11448709 | Guide, Fill Tube (Replaces: 12932103) |
|
$ 24.64 | |||||
| NI | W10280150 | Harness, Lights (freezer) |
|
- |
