SELECT A DIAGRAM

01 - Cover


03 - Control Panel

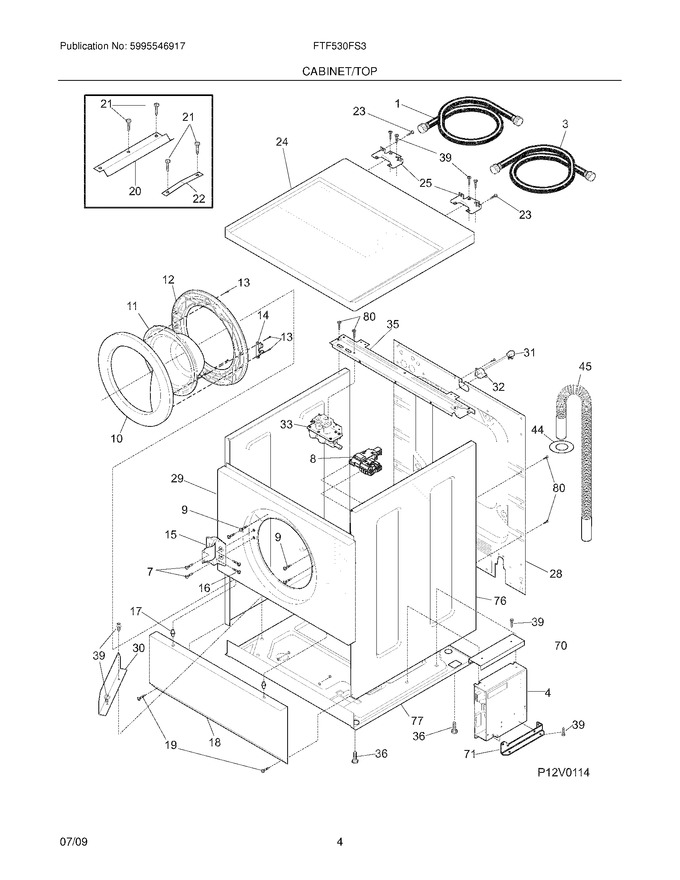

05 - Cabinet/top


07 - Motor/tub


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131279602		Hose,water Inlet ,cold		Appelez-nous	-
3	5303912532		Hose,water Inlet ,hot   (Replaces: 131279603)				$ 98.00
7	131205300		Screw,10-16 X 0.750			Immediately	$ 13.44
9	131303300		Screw,pan Head ,10-16ab X 0.500 ,locking		Appelez-nous	-
10	131278700		Frame,outer Door ,white				$ 217.35
11	131278800		Panel,door Glass				$ 209.27
12	134426500		Frame,inner Door ,white   (Replaces: 131278900)			Immediately	$ 177.56
13	134227100		Screw,flat Head ,10-16 X 0.600 ,quadrex				$ 10.61
14	131763302		Striker,door/lock/sw   (Replaces: 131763310)			Immediately	$ 38.98
15	134264600		Hinge,door				$ 71.07
16	131696300		Screw,quad Pan Head ,10-16 X 0.312				$ 11.03
17	131346400		Pin,panel Locator				$ 12.44
18	131279300		Panel,service ,white ,front				$ 231.95
19	218362501		Screw,hex Washer Hd ,8-18ab X 1.125   (Replaces: 131358400)				$ 13.39
20	131460900		Bracket,top Panel Mtg. ,front				$ 48.56
21	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.73
22	131279500		Retainer,spring Steel				$ 30.43
23	131243800		Screw,pan Hd Locking ,8-32ca X 0.375 ,cup Point				$ 11.62
24	134086842		Panel,white ,top				$ 240.45
25	131668200		Bracket,top Panel Mtg.				$ 40.48
28	134896900		Panel,back				$ 97.44
29	131752030		Panel,cabinet Front ,white				$ 226.75
30	131859600		Shield-overflow				$ 38.12
32	5303209428		Bushing,power Cord				$ 18.90
35	134897000		Bracket,reinforcement ,top Rear				$ 33.34
36	134548800		Leveling Leg,screw ,plastic			Immediately	$ 33.55
39	134178901		Screw,8-18ab X 0.455				$ 16.54
44	131707800		Ring-drain Hose				$ 50.28
70	134048600		Shield,drip Protector		Appelez-nous	-
71	134048400		Base,controller Mtg		Appelez-nous	-
76	134390701		Panel,side ,white ,rs/ls ,(2)				$ 155.24
77	134773000		Base Plate				$ 124.43
80	131168200		Screw,10-16ab X 0.375   (Replaces: 134547800)			Immediately	$ 15.75
F31	5304505407		Power Cord,electric Svce   (Replaces: 134501000)				$ 98.00
F33	131900200		Valve,water ,115 V				$ 184.73
F4	134149220		Controller Assy,speed ,w/base & Shield				$ 245.12
F45	134592700		Hose,drain			Immediately	$ 99.23
F8	131763256		Door Lock/switch Assy   (Replaces: 131763245)			Immediately	$ 163.07
NI	131931201		Dampener,vibration ,3.5 X 2 X 2 In. ,foam				$ 14.02
NI	5303937142		Shipping Brace Kit				$ 248.43

    View Diagram in Separate Window       Print Part List
