SELECT A DIAGRAM
New Model Search:

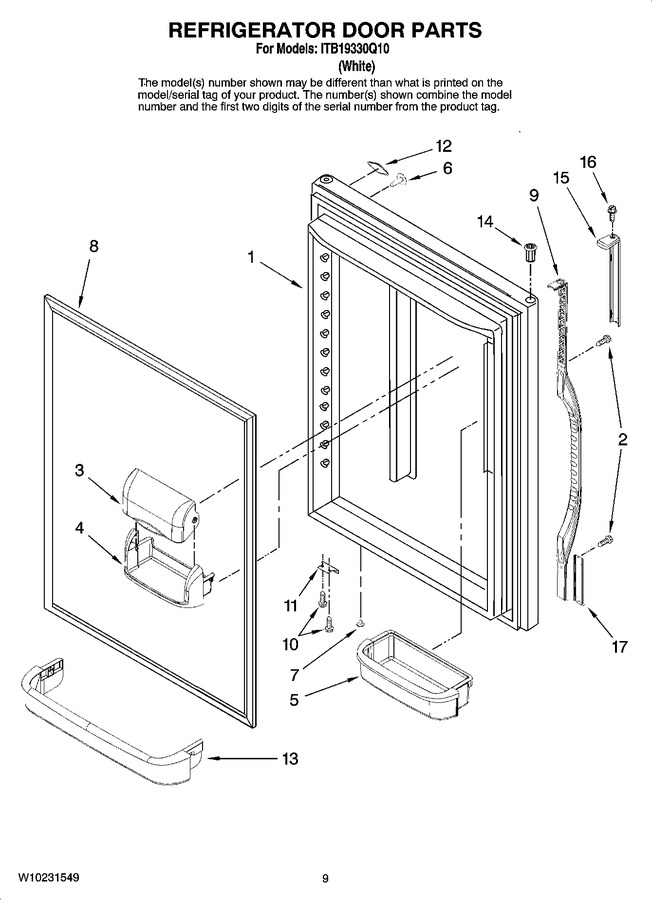

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67001138 | Door, Refrigerator (white) |
|
$ 514.71 | |||||
| 2 | 67006682 | Screw-handle (2) |
|
- | |||||
| 3 | WP67003637 | Door, Dairy (Replaces: 67003637) |
|
Immediately | $ 78.73 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 67001279) |
|
Immediately | $ 83.82 | ||||
| 5 | WP67001021 | Bucket, Door (medium (2)) (Replaces: 67001021) |
|
$ 80.90 | |||||
| 5 | 67001141 | Bucket, Door (small (2)) |
|
Immediately | $ 75.15 | ||||
| 6 | WP67001130 | Plug-handle Hole (white) (Replaces: 12246601) |
|
Immediately | $ 5.98 | ||||
| 7 | 10712401 | Plug, Button (2) (white) |
|
$ 7.79 | |||||
| 8 | WPW10443309 | Gasket, Door (white) (Replaces: W10164030) |
|
Immediately | $ 347.85 | ||||
| 9 | 67003129 | Handle, Door (white) |
|
$ 79.41 | |||||
| 10 | WP98165 | Screw (Replaces: 67006287) |
|
$ 8.00 | |||||
| 11 | 12968202W | Stop, Door (white) (Replaces: 67003779) |
|
$ 65.99 | |||||
| 12 | 2263431 | Nameplate |
|
$ 74.36 | |||||
| 13 | 12690501 | Retainer, Ref Door |
|
$ 41.75 | |||||
| 14 | WP67004977 | Bushing (4) (white) (Replaces: 67004977) |
|
$ 7.81 | |||||
| 15 | 67005131 | Trim, Handle-top (white) |
|
$ 5.83 | |||||
| 16 | 12248201 | Screw |
|
$ 5.48 | |||||
| 17 | 67005137 | Trim-handle, Bottom (white) |
|
$ 16.90 |
