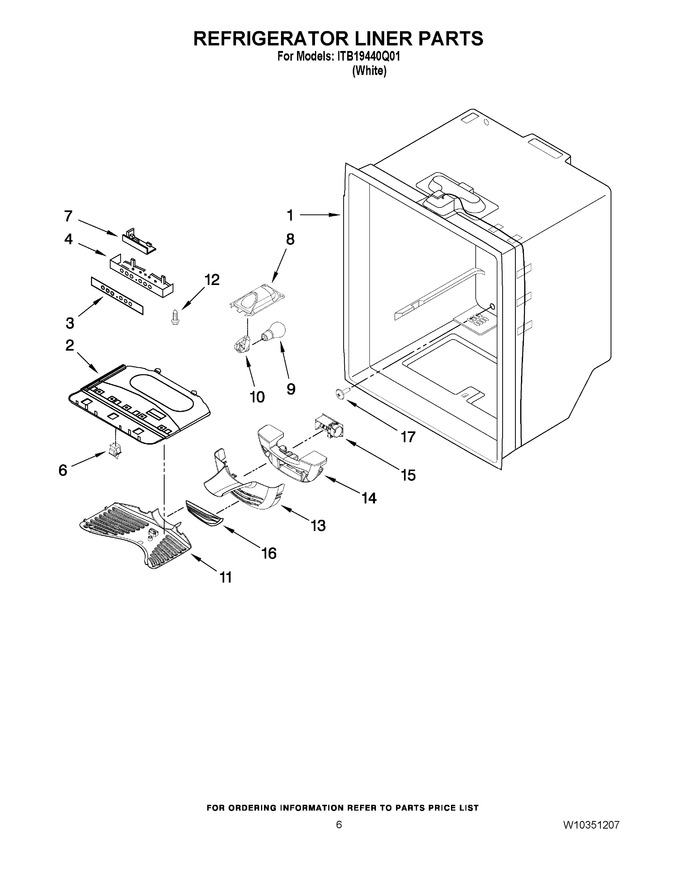

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 12806301 | Bracket, Control And Lights |
|
- | |||||
| 3 | W10207257 | Overlay, Control |
|
$ 89.88 | |||||
| 4 | WPW10464769 | Housing, Electronic Control (Replaces: 12806406) |
|
Immediately | $ 113.76 | ||||
| 6 | W11384469 | Switch, Light (Replaces: C3680310V) |
|
Immediately | $ 39.09 | ||||
| 7 | WPW10503278 | Board, Control (Replaces: 12784415V) |
|
Immediately | $ 55.44 | ||||
| 8 | 12806601 | Housing, Light (Replaces: 12806601V) |
|
$ 110.20 | |||||
| 9 | W11679940 | Bulb, Light (2) (Replaces: 2255743N) |
|
Immediately | $ 11.30 | ||||
| 10 | W11447232 | Socket, Light (2) (Replaces: 12570701V) |
|
Immediately | $ 13.87 | ||||
| 11 | W11284721 | Cover, Light (Replaces: 12806501) |
|
$ 106.02 | |||||
| 12 | W11772394 | Screw (2) (Replaces: 12990604) |
|
Immediately | $ 13.22 | ||||
| 13 | WP12806701 | Cover, Damper (Replaces: 12806701) |
|
$ 118.65 | |||||
| 14 | W11750607 | Insulation (Replaces: 13012402) |
|
$ 50.15 | |||||
| 15 | WPW10196393 | Control, Damper (Replaces: W10196393) |
|
Immediately | $ 166.07 | ||||
| 16 | 67003900 | Insert, Damper Cover (Replaces: 12806801) |
|
Immediately | $ 8.55 | ||||
| 17 | M0310343 | Plug-button |
|
$ 11.20 | |||||
| NI | W11619328 | Harness, Controls (refrigerator) (Replaces: 12868701) |
|
Immediately | $ 95.67 |
