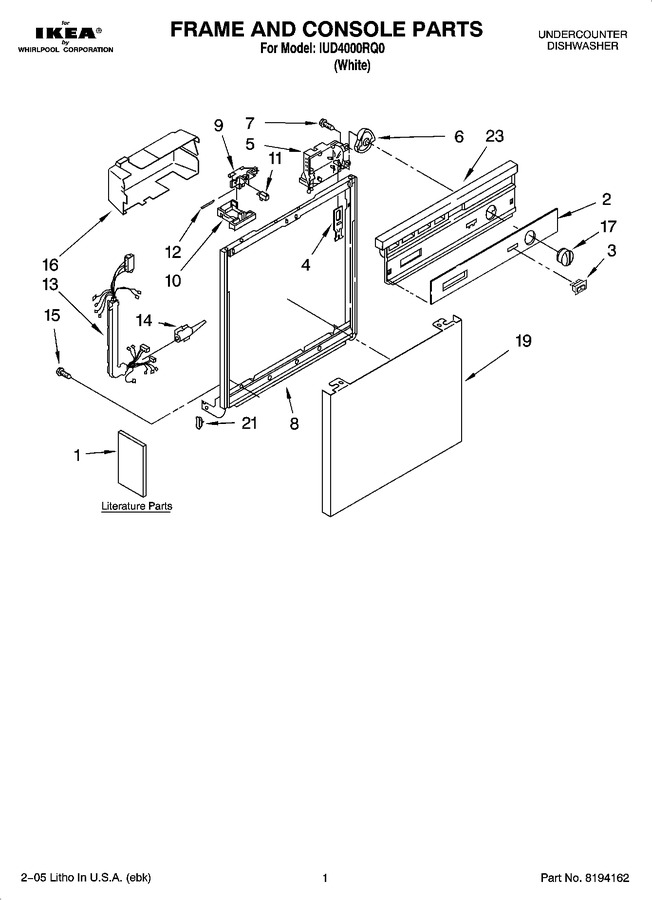

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8535436 | Instructions, Installation |
|
- | |||||
| 1 | 3367007 | Instructions, Installation (supplement) (location Your Water Supply) |
|
- | |||||
| 1 | 3385885 | Guide, Energy |
|
- | |||||
| 1 | 3385881 | Guide, Use & Care |
|
- | |||||
| 1 | 3385496 | Diagram, Wiring |
|
- | |||||
| 2 | 3385887 | Insert, Console |
|
- | |||||
| 3 | 8051730 | Switch, Rocker |
|
$ 83.48 | |||||
| 4 | WP3369529 | Follower, Cam (Replaces: 3369529) |
|
$ 65.43 | |||||
| 5 | WP8535372 | Timer (Replaces: 8535372) |
|
$ 333.90 | |||||
| 6 | WP8271510 | Cam (Replaces: 8271510) |
|
$ 8.96 | |||||
| 7 | WP304231 | Screw, (Replaces: 304231) |
|
Immediately | $ 8.14 | ||||
| 8 | 9743028 | Door Frame |
|
$ 62.19 | |||||
| 9 | WP3380854 | Bolt, Latch (Replaces: 3380854) |
|
Immediately | $ 66.11 | ||||
| 10 | 3372231 | Lever, Latch |
|
- | |||||
| 11 | 3369325 | Switch, (2) |
|
- | |||||
| 12 | 3368955 | Pin, Switch (2) |
|
$ 7.75 | |||||
| 13 | 3385498 | Harness And Protector |
|
- | |||||
| 14 | 3376405 | Elbow, Harness |
|
$ 14.02 | |||||
| 15 | WP3400892 | Screw (Replaces: 3400892) |
|
$ 8.24 | |||||
| 16 | 8051644 | Cover, Timer |
|
- | |||||
| 17 | 8275308 | Knob, Timer (Replaces: 8275309) |
|
$ 75.05 | |||||
| 19 | 3379376 | Front Panel |
|
$ 116.81 | |||||
| 21 | WP3373234 | Bearing Spring (2) (Replaces: 3373234) |
|
$ 11.01 | |||||
| 23 | 3385893 | Console (includes Item 2) |
|
- |
