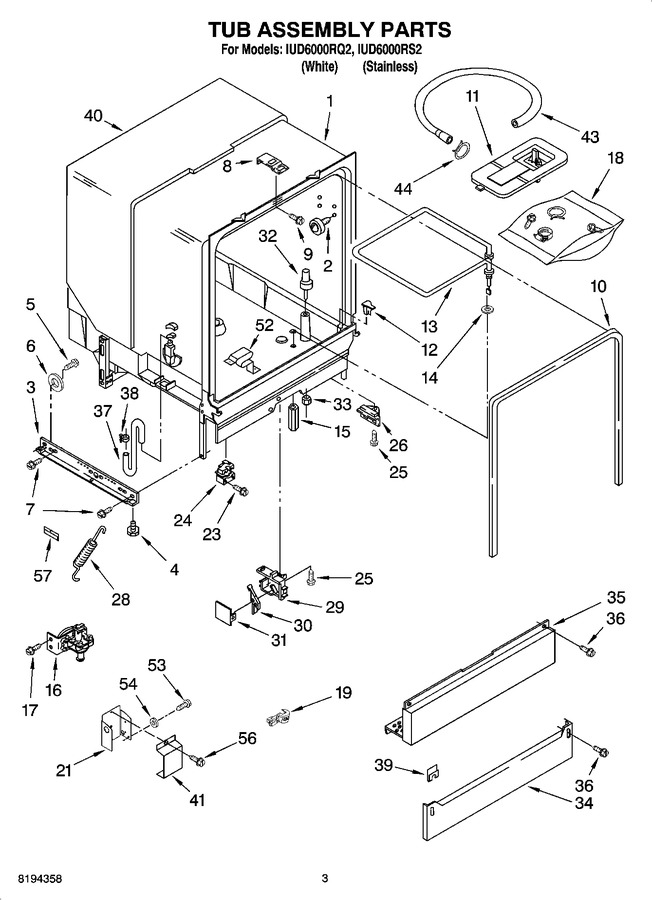

03 - Tub Assembly Parts


04 - Pump And Spray Arm Parts


05 - Pump And Motor Parts


06 - Dishrack Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8533815		Tub And Support Assembly		Appelez-nous	-
2	WP8528831		Tub, Wheel Assembly (8)   (Replaces: 8528831)			Immediately	$ 17.61
3	3368933		Runner (2)				$ 15.85
4	8193716		Leveler (2)   (Replaces: 3374849)			Immediately	$ 84.72
5	3370389		Screw, Shoulder (2)				$ 5.70
6	302819		Wheel (2)				$ 5.65
7	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.85
8	3378149		Plate, Latch				$ 44.37
9	3374720		Screw				$ 28.23
10	WPW10509257		Gasket   (Replaces: 3376927)			Immediately	$ 74.12
11	WP3369322		Grate   (Replaces: 3369322)				$ 94.34
12	WP8528862		Deflector (2)   (Replaces: 8528862)				$ 63.90
13	WPW10082894		Heater   (Replaces: 8519827)				$ 134.78
14	WP717273		Washer, Rubber (2)   (Replaces: 717273)			Immediately	$ 7.19
15	WPW10477552		Nut (2) (heater Terminal)   (Replaces: 8268548)			Immediately	$ 7.76
16	W10844024		Water Valve   (Replaces: 8283345)			Immediately	$ 96.30
17	WP489069		Screw 8-18 X 1/2   (Replaces: 304392)			Immediately	$ 7.86
18	3369816		Miscellaneous Parts Bag (includes 2 Screws & 2 Hose Clamps				$ 34.93
19	W11384788		Strain, Relief   (Replaces: 8573061)				$ 21.51
21	8573951		Terminal Box				$ 6.33
23	WP489128		Screw   (Replaces: 3370225)				$ 10.88
24	W10102260		Relay   (Replaces: 3369063)				$ 143.07
25	WP304231		Screw, 8-18 X 1/2   (Replaces: 304231)			Immediately	$ 7.75
26	WP3368928		Fuse, Thermal   (Replaces: 3368928)			Immediately	$ 77.69
28	WP3379383		Spring, Door (2)   (Replaces: 3379383)			Immediately	$ 25.30
29	8318218		Housing, Float Switch				$ 46.38
30	3369067		Switch, Float		Appelez-nous	-
31	8318219		Cover, Switch Housing				$ 14.53
32	WP8519552		Float   (Replaces: 8519552)				$ 118.97
33	717488		Nut				$ 12.83
34	3368942		Panel, Toe (black)		Appelez-nous	-
34	9742861		Panel, Toe (white)		Appelez-nous	-
35	9744517		Panel, Access (includes Item 39) (stainless)		Appelez-nous	-
35	3379918		Panel, Access (includes Item 39) (white)				$ 21.91
36	WP302868		Screw, 8-18 X 1/2 (4)   (Replaces: 302868)			Immediately	$ 7.75
37	3369414		Hose, Inlet		Appelez-nous	-
38	WP596669		Clamp   (Replaces: 301958)			Immediately	$ 8.40
39	3378123		Clip, Grounding				$ 7.79
40	W11086533		Sound Shield   (Replaces: 8573243)			Immediately	$ 31.30
41	300068		Cover Assembly Terminal Box				$ 30.14
43	WP3374077		Drain Hose   (Replaces: 3374077)			Immediately	$ 102.23
44	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 8.52
52	3379740		Support, Heater (3)				$ 51.56
53	WP3400014		Screw   (Replaces: 3400014)				$ 7.75
54	WP3378128		Washer   (Replaces: 3378128)				$ 9.03
56	3369138		Screw, 8-18				$ 5.81
57	8052018		Friction Pad (velcro)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
