SELECT A DIAGRAM

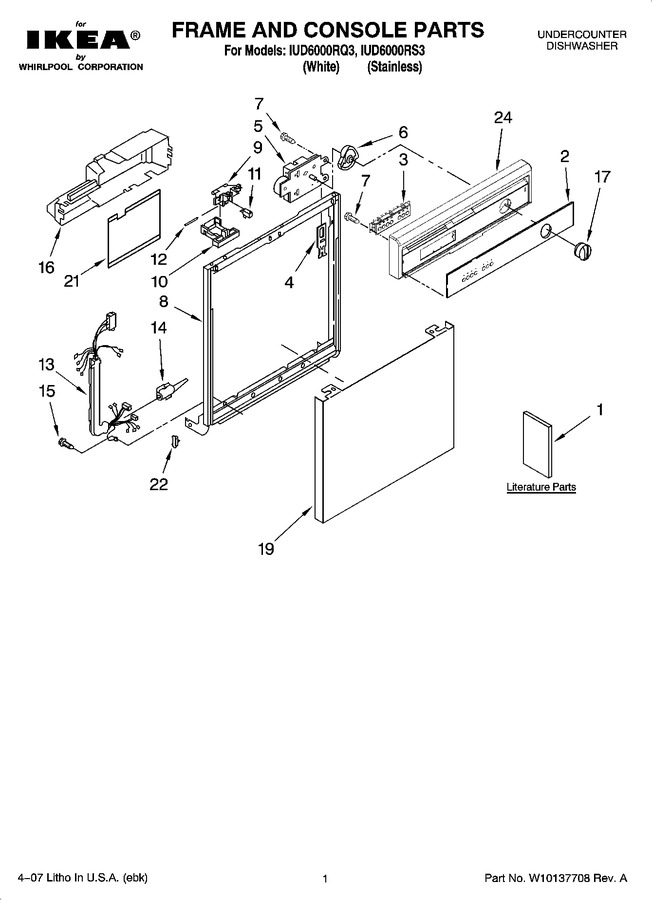

01 - Frame And Console Parts


02 - Inner Door Parts


03 - Tub Assembly Parts


04 - Pump And Spray Arm Parts


05 - Pump And Motor Parts


06 - Dishrack Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	677967		D0-it Yourself Manual		Appelez-nous	-
1	8535436		Instructions, Installation		Appelez-nous	-
1	W10127562		Guide, Energy		Appelez-nous	-
1	W10039810		Guide, Use & Care		Appelez-nous	-
2	W10066810		Insert, Console (white)		Appelez-nous	-
2	W10039590		Insert, Console (black)		Appelez-nous	-
3	8269367		Switch		Appelez-nous	-
4	WP3369529		Follower, Cam   (Replaces: 3369529)				$ 65.43
5	WPW10199587		Timer   (Replaces: W10039480)				$ 345.81
6	WP8271510		Cam   (Replaces: 8271510)				$ 8.96
7	WP304231		Screw, 8-18 X 1/2 (5)   (Replaces: 304231)			Immediately	$ 8.14
8	9743028		Door Frame (black)				$ 62.19
9	WP3380854		Bolt, Latch   (Replaces: 3380854)			Immediately	$ 66.11
10	3369457		Lever, Latch (black)				$ 5.84
10	3372231		Lever, Latch White		Appelez-nous	-
11	3369325		Switch, (2)		Appelez-nous	-
12	3368955		Pin, Switch (2)				$ 7.75
13	8573182		Harness And Protector		Appelez-nous	-
14	3376405		Elbow, Harness				$ 14.02
15	WP3400892		Screw   (Replaces: 3400892)				$ 8.24
16	8269526		Cover, Timer		Appelez-nous	-
17	8275308		Knob, Timer (black)				$ 75.05
17	8275308		Knob, Timer (white)   (Replaces: 8275309)				$ 75.05
19	3379376		+front Panel (white)				$ 116.81
19	9743581		Front Panel (stainles Steel)		Appelez-nous	-
21	3379671		Shield, Control Cover		Appelez-nous	-
22	WP3373234		Bearing Spring (2)   (Replaces: 3373234)				$ 11.01
24	W10127561		Console (includes Item 2) (black)		Appelez-nous	-
24	W10127560		Console (includes Item 2) (white)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
