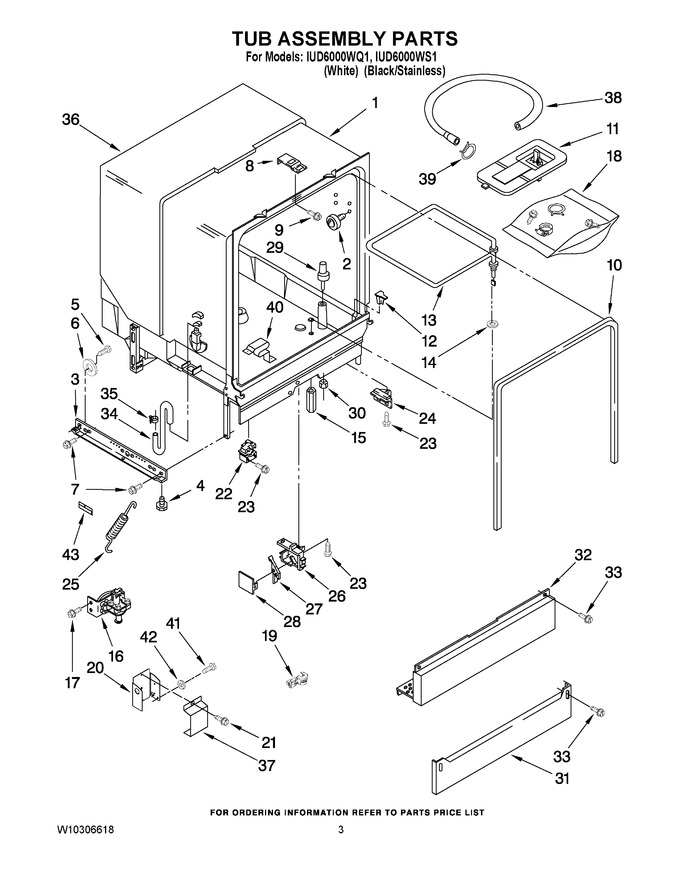

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10082657 | Tub And Support Assembly |
|
- | |||||
| 2 | WP8528831 | Tub, Wheel Assembly (Replaces: 8528831) |
|
Immediately | $ 19.58 | ||||
| 3 | 3368933 | Runner |
|
$ 15.85 | |||||
| 4 | 8193716 | Leveler (Replaces: 3374849) |
|
Immediately | $ 88.96 | ||||
| 5 | 3370389 | Screw, Shoulder |
|
$ 5.70 | |||||
| 6 | 302819 | Wheel |
|
$ 5.65 | |||||
| 7 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 8 | 3378149 | Plate, Latch |
|
$ 44.37 | |||||
| 9 | 3374720 | Screw |
|
$ 28.23 | |||||
| 10 | WPW10509257 | Gasket (Replaces: W10082795) |
|
Immediately | $ 74.12 | ||||
| 11 | WP3369322 | Grate (Replaces: 3369322) |
|
$ 99.06 | |||||
| 12 | WP8528862 | Deflector (Replaces: 8528862) |
|
$ 63.90 | |||||
| 13 | WPW10082894 | Heater (Replaces: W10082894) |
|
$ 141.52 | |||||
| 14 | WP717273 | Washer, Rubber (Replaces: 717273) |
|
Immediately | $ 7.55 | ||||
| 15 | WPW10477552 | Nut (heater Terminal) (Replaces: 8268548) |
|
Immediately | $ 8.23 | ||||
| 16 | W10844024 | Water Valve (Replaces: 8283345) |
|
Immediately | $ 96.30 | ||||
| 17 | WP489069 | Screw 8-18 X 1/2 (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 18 | 3369816 | Miscellaneous Parts Bag (includes 2 Screws & 2 Hose Clamps |
|
$ 34.93 | |||||
| 19 | W11384788 | Strain, Relief (Replaces: 8573061) |
|
$ 22.59 | |||||
| 20 | W10136706 | Terminal Box |
|
$ 36.99 | |||||
| 21 | W10844024 | Screw (Replaces: W10219643) |
|
Immediately | $ 96.30 | ||||
| 22 | W10102260 | Relay (Replaces: 3369063) |
|
$ 143.07 | |||||
| 23 | WP304231 | Screw, 8-18 X 1/2 (Replaces: 304231) |
|
Immediately | $ 8.14 | ||||
| 24 | WP3368928 | Fuse, Thermal (Replaces: 3368928) |
|
Immediately | $ 81.57 | ||||
| 25 | WP3379383 | Spring, Door (Replaces: 3379383) |
|
Immediately | $ 25.30 | ||||
| 26 | 8318218 | Housing, Float Switch |
|
$ 46.38 | |||||
| 27 | 3369067 | Switch, Float |
|
- | |||||
| 28 | 8318219 | Cover, Switch Housing |
|
$ 14.53 | |||||
| 29 | WP8519552 | Float (Replaces: 8519552) |
|
$ 124.92 | |||||
| 30 | 717488 | Nut |
|
$ 12.83 | |||||
| 31 | 9742861 | Panel, Toe (white) |
|
- | |||||
| 31 | 3368942 | Panel, Toe (black) |
|
- | |||||
| 32 | W10176621 | Panel, Access (stainless) |
|
$ 73.67 | |||||
| 32 | 3379388 | Panel, Access (white) |
|
$ 75.13 | |||||
| 33 | WP302868 | Screw, 8-18 X 1/2 (Replaces: 302868) |
|
Immediately | $ 8.18 | ||||
| 34 | 3369414 | Hose, Inlet |
|
- | |||||
| 35 | WP596669 | Clamp (Replaces: 301958) |
|
Immediately | $ 8.82 | ||||
| 36 | W11086533 | Sound Shield (Replaces: 8573243) |
|
Immediately | $ 31.30 | ||||
| 37 | 300068 | Cover Assembly Terminal Box |
|
$ 30.14 | |||||
| 38 | WP3374077 | Drain Hose (Replaces: 3374077) |
|
Immediately | $ 102.23 | ||||
| 39 | WP356138 | Hose, Clamp (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 40 | 3379740 | Support, Heater |
|
$ 51.56 | |||||
| 41 | WP3400014 | Screw (Replaces: 3400014) |
|
$ 8.24 | |||||
| 42 | WP3378128 | Washer (Replaces: 3378128) |
|
$ 11.81 | |||||
| 43 | 8052018 | Friction Pad (velcro) |
|
- |
