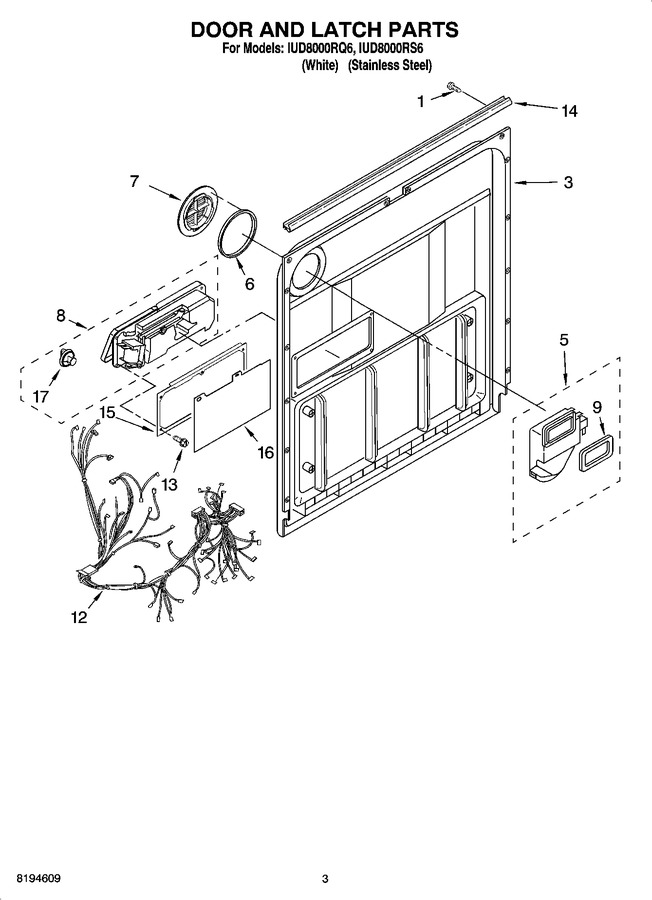

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10348409 | Screw, Door (Replaces: 3369051) |
|
Immediately | $ 8.20 | ||||
| 3 | WP3378179 | Inner Door (also Order Item 6) (Replaces: 3378179) |
|
$ 323.02 | |||||
| 5 | WP8558980 | Vent Assembly (also Order Item 6) (Replaces: 8542603) |
|
$ 119.16 | |||||
| 6 | WP8269259 | Gasket, Vent (Replaces: 8269259) |
|
Immediately | $ 63.50 | ||||
| 7 | 8542566 | Deflector, Vent (also Order Item 6) |
|
$ 45.08 | |||||
| 8 | WPW10224428 | Dispenser, Assembly (Replaces: 8565814) |
|
Immediately | $ 84.06 | ||||
| 9 | WP8269258 | Seal. Front (Replaces: 8269258) |
|
Immediately | $ 96.86 | ||||
| 12 | W10070130 | Wiring Harness Main |
|
$ 177.46 | |||||
| 13 | WPW10177098 | Screw (Replaces: 8281154) |
|
Immediately | $ 8.02 | ||||
| 14 | WP8269296 | Seal, Console/door (Replaces: 8269296) |
|
Immediately | $ 188.17 | ||||
| 15 | WPW10462232 | Bracket, Dispenser (Replaces: 8535637) |
|
$ 37.79 | |||||
| 16 | WP8531865 | Shield, Dispenser (Replaces: 8531865) |
|
$ 113.15 | |||||
| 17 | WP8558307 | Cap, Rinse Aid (Replaces: 8558307) |
|
Immediately | $ 21.27 |
