SELECT A DIAGRAM

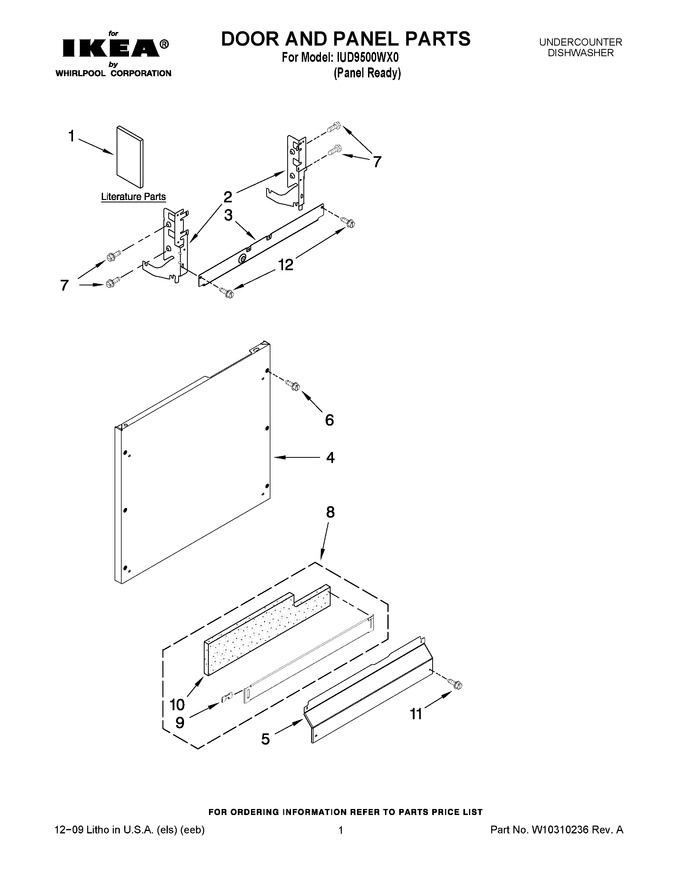

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Fill Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm And Strainer Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10254924		Guide, Use & Care (spanish)		Appelez-nous	-
1	W10254955		Instructions, Installation		Appelez-nous	-
1	W10254925		Energy Guide		Appelez-nous	-
1	W10254923		Guide, Use & Care (enlish/french)		Appelez-nous	-
1	W10142800		Tech Sheet		Appelez-nous	-
2	W11806608		Arm, Hinge (right)   (Replaces: 8534853)			Immediately	$ 142.24
2	W11806565		Arm, Hinge (left)   (Replaces: 8534854)			Immediately	$ 142.39
3	8268983		Stiffener, Door				$ 38.77
4	W11113792		Panel Front   (Replaces: 8535133)			Immediately	$ 373.42
5	WPW10348409		Access Panel   (Replaces: 3369051)			Immediately	$ 8.20
6	W11763736		Screw (black)   (Replaces: 8573255)			Immediately	$ 42.25
7	WP3400071		Screw Door Assembly   (Replaces: 3400071)				$ 8.26
8	W10871196		Toe Panel (includes 9 & 10) (black)   (Replaces: W10205336)				$ 174.04
9	WP8269016		Clip, Ground   (Replaces: 8269016)				$ 11.21
10	W10831329		Insulation Toe Panel   (Replaces: W10073540)			Immediately	$ 43.30
11	WP302868		Screw   (Replaces: 302868)			Immediately	$ 8.18
12	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40

    View Diagram in Separate Window       Print Part List
