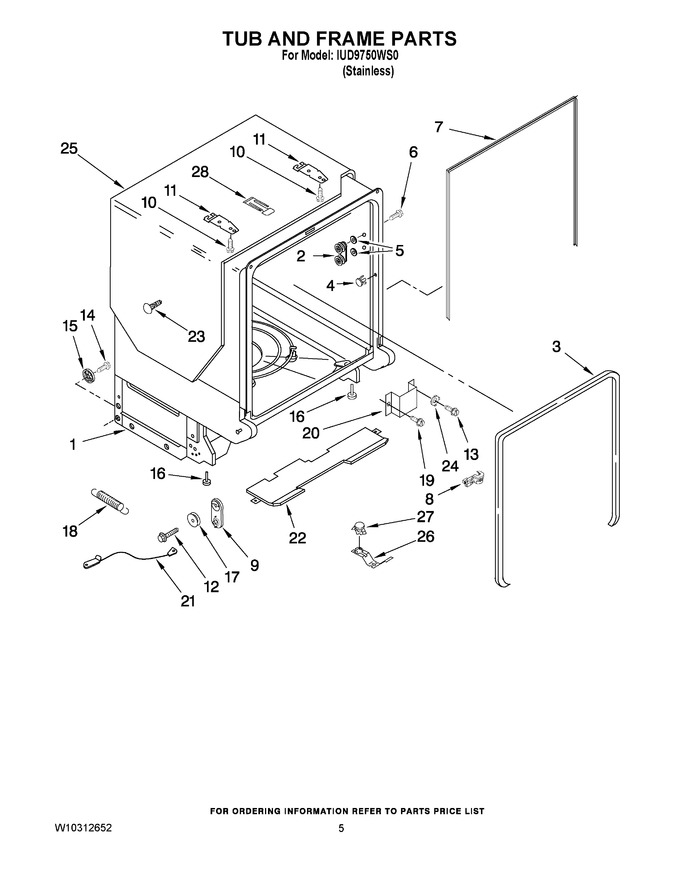

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10164353 | Tub Assembly (includes Heater Assembly) |
|
- | |||||
| 2 | WP8270019 | Wheel & Mount Assembly (also Order Item 5) (Replaces: 8270019) |
|
Immediately | $ 10.48 | ||||
| 3 | W11196317 | Door Seal (Replaces: W10112096) |
|
Immediately | $ 94.26 | ||||
| 4 | W10795980 | Plug Tub (Replaces: 8270119) |
|
Immediately | $ 15.06 | ||||
| 5 | WP9743002 | Gasket, Bracket Mounting (Replaces: 9743002) |
|
Immediately | $ 10.04 | ||||
| 6 | WPW10348407 | Screw (Replaces: 3400072) |
|
$ 8.06 | |||||
| 7 | W10864081 | Seal, Cabinet (Replaces: 8269110) |
|
Immediately | $ 84.31 | ||||
| 8 | W11384788 | Strain, Relief (Replaces: 8573061) |
|
$ 22.59 | |||||
| 9 | WPW10084086 | Mount, Door Balance (Replaces: W10084086) |
|
Immediately | $ 33.02 | ||||
| 10 | WP308685 | Screw (Replaces: 3367670) |
|
Immediately | $ 7.87 | ||||
| 11 | WP8269145 | Bracket,undercounter (Replaces: 8269145) |
|
Immediately | $ 19.33 | ||||
| 12 | WP3400074 | Screw (Replaces: 3400074) |
|
$ 7.55 | |||||
| 13 | WP3400014 | Screw (Replaces: 3400014) |
|
$ 8.24 | |||||
| 14 | 3370389 | Screw |
|
$ 5.70 | |||||
| 15 | WP8268977 | Wheel Leg (Replaces: 8268977) |
|
$ 15.19 | |||||
| 16 | 8193716 | Leveler, Leg (Replaces: 8524584) |
|
Immediately | $ 88.96 | ||||
| 17 | WPW10084086 | Wheel, Door Balance (Replaces: W10084085) |
|
Immediately | $ 33.02 | ||||
| 18 | WP8270020 | Spring, Door Balance (Replaces: 8270020) |
|
Immediately | $ 36.69 | ||||
| 19 | WPW10277003 | Screw (Replaces: W10277003) |
|
$ 7.55 | |||||
| 20 | W11779375 | Cover, Terminal Box (Replaces: 8268991) |
|
$ 29.53 | |||||
| 21 | 8194001 | Link, Door Balance (Replaces: W10158291) |
|
Immediately | $ 43.06 | ||||
| 22 | WPW10746770 | Insulator, Sound (Replaces: W10266857) |
|
$ 44.84 | |||||
| 23 | WP304666 | Retainer, Push (Replaces: 304666) |
|
$ 29.45 | |||||
| 24 | WP3378128 | Washer, Pronged Cup (Replaces: 3378128) |
|
$ 11.81 | |||||
| 25 | W10877094 | Shield, Sound Tub (Replaces: 8573239) |
|
$ 233.63 | |||||
| 26 | 9742648 | Bracket,thermostat |
|
$ 51.51 | |||||
| 27 | WP661566 | Thermostat (Replaces: 661566) |
|
Immediately | $ 31.28 | ||||
| 28 | W10077370 | Strike, Plate |
|
- |
