SELECT A DIAGRAM

01 - Cabinet Parts

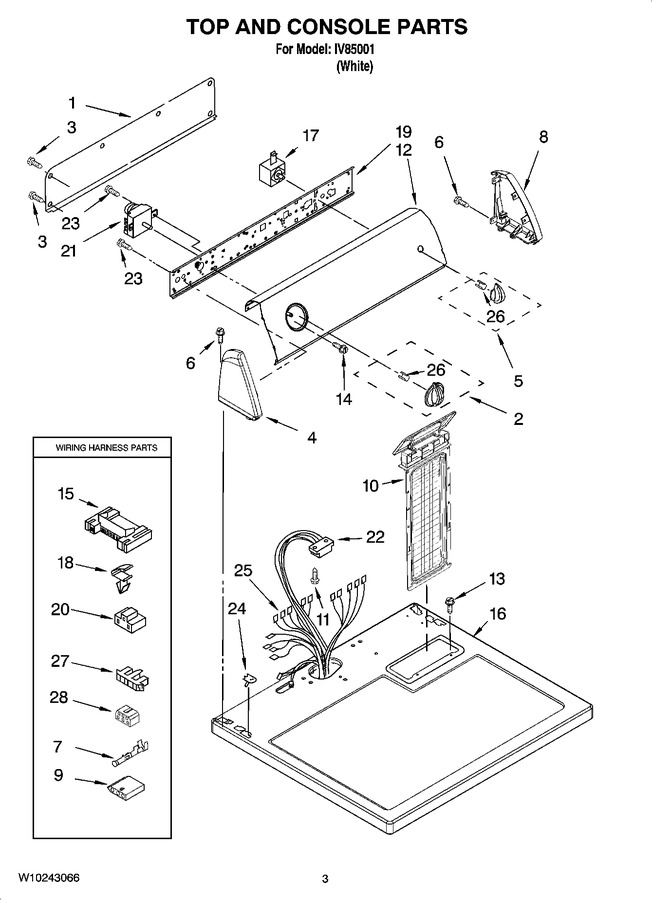

02 - Top And Console Parts


03 - Bulkhead Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
2	8543273		Knob, Timer Assembly				$ 6.44
3	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
4	8271365		Cap, End (l.h.)		Appelez-nous	-
5	WP8544941		Knob, Assembly Push-to-start   (Replaces: 8544941)				$ 101.62
6	WP388326		Screw, Console   (Replaces: 388326)				$ 9.29
7	WP94614		Terminal   (Replaces: 94614)				$ 8.05
8	8271359		Cap, End (r.h.)		Appelez-nous	-
9	3936144		Connector				$ 21.22
10	W10874409		Screen, Lint   (Replaces: 8558467)			Immediately	$ 67.01
11	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
12	W10167869		Panel, Control				$ 89.82
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	3400859		Screw, Grounding   (Replaces: 8533951)				$ 13.88
15	3395683		Connector (motor)			Immediately	$ 54.45
16	8557930		Top		Appelez-nous	-
17	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 26.66
18	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
19	8271418		Bracket, Control				$ 57.15
20	3401144		Connector, (pts Relay)				$ 12.81
21	WPW10185970		Timer, 60 Hz.   (Replaces: W10185970)			Immediately	$ 170.44
22	3391885		Connector, Edge				$ 90.72
23	WP90767		Screw, Mounting (8-18 X 5/16)   (Replaces: 8533971)			Immediately	$ 8.25
24	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
25	W10186073		Harness, Wiring		Appelez-nous	-
26	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
27	3397269		Connector, Timer				$ 25.55
28	3347243		Connector 6-circuit		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
