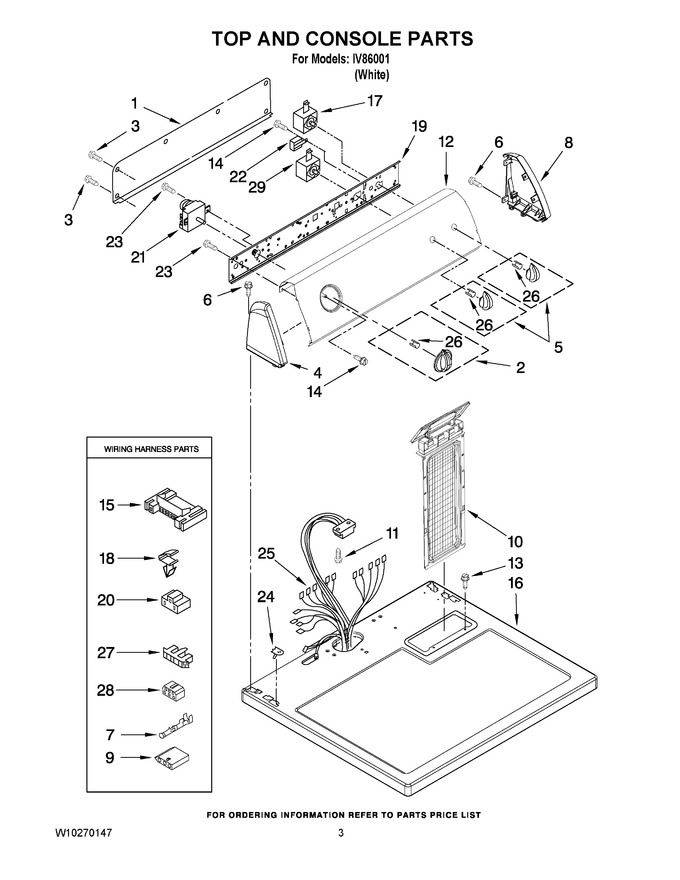

01 - Cabinet Parts


02 - Top And Console Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 128.87
2	8543273		Knob, Timer Assembly				$ 6.44
3	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.19
4	8271365		Cap, End (l.h.)		Appelez-nous	-
5	WP8543270		Knob, Controls (2)   (Replaces: 8543270)			Immediately	$ 8.84
6	WP388326		Screw, Console   (Replaces: 388326)				$ 8.11
7	WP94614		Terminal   (Replaces: 94614)				$ 7.67
8	8271359		Cap, End (r.h.)		Appelez-nous	-
9	3936144		Connector				$ 20.21
10	W11778253		Screen, Lint   (Replaces: 8558463)			Immediately	$ 52.03
11	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
12	W10167870		Panel, Control				$ 34.68
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.06
14	3400859		Screw, Grounding   (Replaces: 8533951)				$ 13.22
15	3395683		Connector (motor)			Immediately	$ 51.86
16	8557930		Top		Appelez-nous	-
17	WP3398095		Switch, Push-to-start   (Replaces: 3398095)			Immediately	$ 92.88
18	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.79
19	8271418		Bracket, Control				$ 57.15
20	3401144		Connector, (pts Relay)				$ 12.20
21	WPW10185982		Timer, 60 Hz.   (Replaces: W10185982)			Immediately	$ 150.34
22	WP694419		Mini Buzzer   (Replaces: 694419)				$ 127.67
23	WP90767		Screw, Mounting (8-18 X 5/16)   (Replaces: 8533971)			Immediately	$ 7.82
24	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.39
25	W10186089		Harness, Wiring				$ 100.04
26	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.81
27	3397269		Connector, Timer				$ 25.55
28	3347243		Connector 6-circuit		Appelez-nous	-
29	WP3399639		Switch, Rotary (temperature)   (Replaces: 3399639)				$ 124.91
