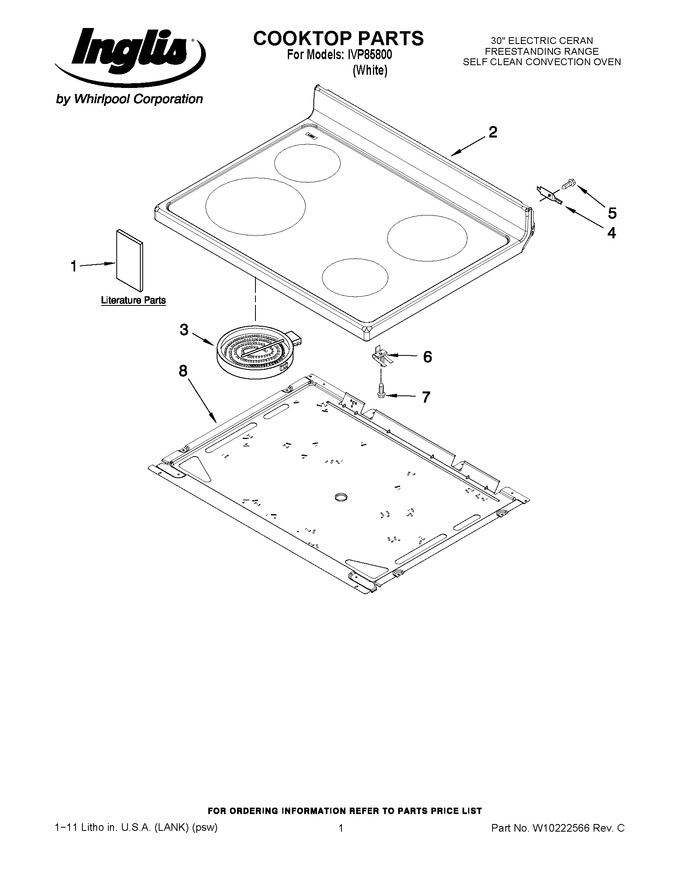

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10204317 | Owner`s Manual |
|
- | |||||
| 1 | W10198621 | Tech Sheet (english) |
|
- | |||||
| 1 | W10198622 | Tech Sheet (french) |
|
- | |||||
| 1 | W10196159 | Installation Instructions (english/french) |
|
- | |||||
| 1 | 9757143 | Template,anti-tip (english/french) |
|
- | |||||
| 1 | 9757142 | Template,anti-tip (english/spanish) |
|
- | |||||
| 1 | 9762761 | Brochure, Tips Safe Cooking (english) |
|
- | |||||
| 1 | W10065852 | Brochure, Tips Safe Cooking (french) |
|
- | |||||
| 2 | WPW10254671 | Cooktop (Replaces: W10202166) |
|
$ 715.27 | |||||
| 3 | W10823692 | Element, Surface (2400/1200 W - Lf) (Replaces: 9759351) |
|
Immediately | $ 227.59 | ||||
| 3 | W10823711 | Element, Surface (1200w Rf-lr) (Replaces: 8523698) |
|
Immediately | $ 204.39 | ||||
| 3 | W10823698 | Element, Surface (1800 W - Lr) (Replaces: 8523696) |
|
Immediately | $ 195.12 | ||||
| 4 | WP3195060 | Hinge, Cooktop (2) (Replaces: 3195060) |
|
Immediately | $ 13.18 | ||||
| 5 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 6 | WPW10225448 | Spring, Locator (Replaces: W10162042) |
|
Immediately | $ 10.40 | ||||
| 7 | WP3196170 | Screw (Replaces: 3196170) |
|
$ 7.55 | |||||
| 8 | W10170526 | Pan, Radiant Elmt |
|
$ 270.57 |
