SELECT A DIAGRAM

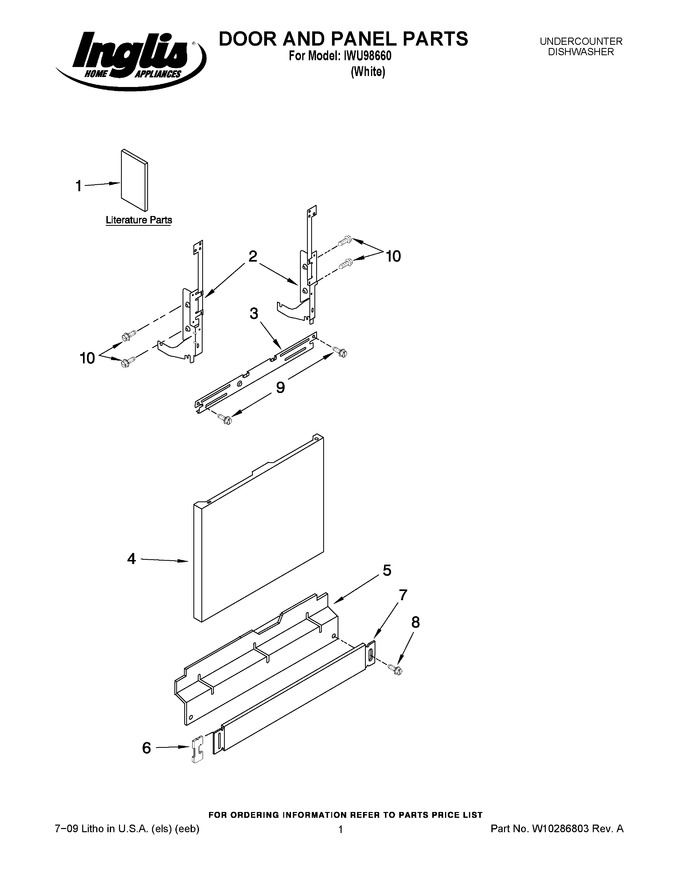

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Lower Washarm Parts


05 - Heater Parts


06 - Fill And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts


09 - Upper Rack And Track Parts


10 - Upper Wash And Rinse Parts


11 - Lower Rack Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10130978		Guide, Use & Care		Appelez-nous	-
1	W10142800		Tech Sheet		Appelez-nous	-
1	W10142914		Instructions, Installation		Appelez-nous	-
1	W10240264		Energy Guide		Appelez-nous	-
2	W11806566		Arm, Hinge (left)   (Replaces: W10143374)			Immediately	$ 66.52
2	W11613572		Arm, Hinge (right)   (Replaces: W10143373)			Immediately	$ 78.37
3	8268983		Stiffener, Door				$ 38.77
4	8269842		Panel Front		Appelez-nous	-
5	WPW10441007		Access Panel   (Replaces: 8573256)				$ 162.80
6	WP8269016		Clip, Ground   (Replaces: 8269016)				$ 10.68
7	WP8573287		Toe Panel (includes No.6)   (Replaces: 8573287)				$ 165.12
8	WP3400836		Screw   (Replaces: 3400836)				$ 7.53
9	WP489069		Screw   (Replaces: 304392)			Immediately	$ 7.86
10	WPW10109200		Screw   (Replaces: 489470)			Immediately	$ 8.00

    View Diagram in Separate Window       Print Part List
