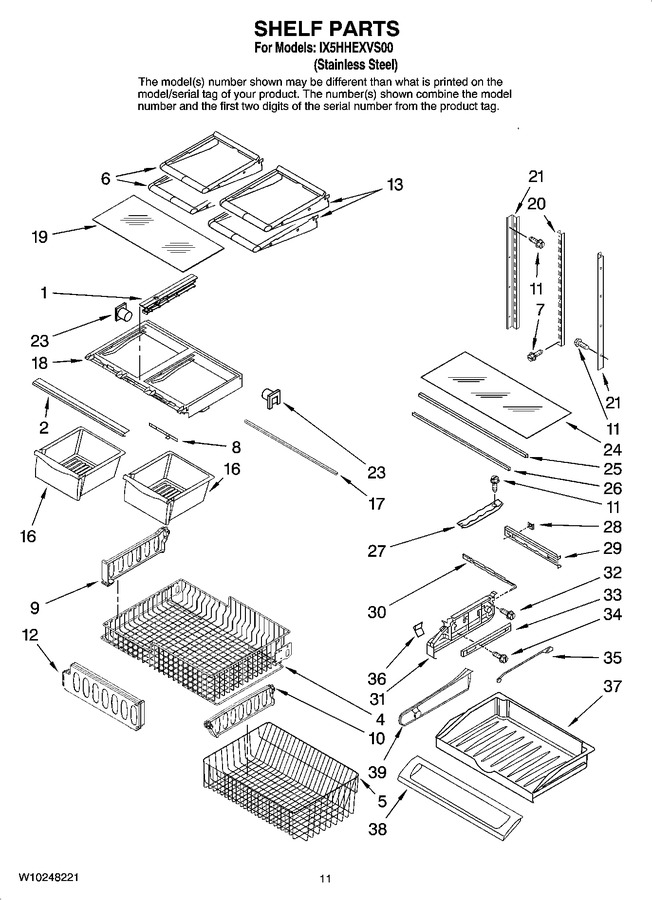

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10326469		Rail, Center Crisper   (Replaces: 67004514)			Immediately	$ 33.37
2	WPW10231345		Trim, Crisper   (Replaces: 67004510)				$ 137.67
4	W10201222		Basket, Freezer (upper)		Appelez-nous	-
5	W10150039		Basket, Freezer (lower)				$ 128.38
6	W10208663		Shelf, Glide (2)				$ 115.65
7	W10709795		Screw   (Replaces: 67006360)				$ 13.79
8	WP67005864		Slide, Humidity Control (2)   (Replaces: 67005864)			Immediately	$ 8.20
9	W10171557		Divider, Basket (upper)		Appelez-nous	-
10	W10205416		Divider, Basket (lower)		Appelez-nous	-
11	67006425		Screw   (Replaces: 67006400)			Immediately	$ 7.30
12	W10171558		Divider, Basket (upper)				$ 42.49
13	W10205737		Shelf-sta (2)				$ 304.16
16	WP67004515		Pan, Crisper   (Replaces: 67004515)			Immediately	$ 176.72
17	WP12642303WD		Brace, Crisper   (Replaces: 12642303WD)				$ 112.26
18	WP67003854		Frame, Crisper   (Replaces: 67003854)			Immediately	$ 227.55
19	WP67006704		Glass, Crisper Cover   (Replaces: 67006704)				$ 212.77
20	67001073		Ladder, Center				$ 56.89
21	67002489		Ladder, Side				$ 71.09
23	WP13062602		Support, Crisper Frame   (Replaces: 13062602)				$ 84.87
24	67002761		Glass, Pantry				$ 103.45
25	W11812285		Trim, Pantry Glass   (Replaces: 67006010)				$ 53.33
26	WP12227305WD		Brace, Pantry (2)   (Replaces: 12227305WD)				$ 108.36
27	WP67001719		Track, Pantry   (Replaces: 67001719)			Immediately	$ 8.99
28	67002329		Gasket, Pantry				$ 22.09
29	12656202		Housing, Control   (Replaces: 67005625)				$ 148.84
30	WP67003793		Slide, Control   (Replaces: 67003793)			Immediately	$ 78.49
31	W10874836		Endcap, Pantry (right)   (Replaces: 67005858)			Immediately	$ 38.43
31	W10874836		Endcap, Pantry (left)   (Replaces: 67005863)			Immediately	$ 38.43
32	WP98165		Screw (4)   (Replaces: 67006287)				$ 8.57
33	WPW10235370		Glide, Pantry (2)   (Replaces: 67007026)			Immediately	$ 199.80
34	WP67006415		Screw (4)   (Replaces: 67006415)				$ 8.38
35	WP67003795		Bar, Temp Cont.   (Replaces: 67003795)				$ 8.45
36	W11498983		Knob, Control   (Replaces: 67003791)				$ 30.64
37	WP67003531		Drawer, Pantry   (Replaces: 67003531)				$ 162.82
38	W10827015		Lid, Pantry   (Replaces: 67005903)			Immediately	$ 175.81
39	WP67002759		Divider, Pantry   (Replaces: 67002759)			Immediately	$ 61.25
	31462		Cleaner, 10 Oz. Stainless Steel		Appelez-nous	-
	1117510		Torx Key				$ 5.84
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	285006		Paint, Pressurized Spray (12 Oz.) (black)   (Replaces: 350939)				$ 59.89
	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
	833938		Kit, Terminal Connector				$ 8.47
	799344		Paint, Bulk (1 Qt.) (black) (uncut)				$ 237.46
	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	W11762633		Icemaker Ic13b   (Replaces: W10261234)			Immediately	$ 224.73
	350942		Paint, Pressurized Spray (12 Oz.) (primer, White)				$ 94.14
