Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10270272 Use & Care Guide Appelez-nous -
1 W10238844 Tech Sheet Appelez-nous -
1 W10270376 Energy Guide Appelez-nous -
2 N/P Cabinet (not A Servicable Part) Appelez-nous -
3 B5759655 Cover, Left Hinge (black) Special Order $ 13.03

4 B5759649 Gasket Appelez-nous -
5 W11820444 Roller Assy. (left)   (Replaces: W10275850) In-Stock Immediately $ 37.35

5 W11820445 Roller Assy. (right)   (Replaces: W10275849) In-Stock Immediately $ 37.35

6 10354002 Foot, Brake In-Stock Immediately $ 7.38

7 WP12566607ED Hinge, Left Top   (Replaces: 12566607ED) Special Order $ 91.09

9 WP8281196 Screw   (Replaces: 67006521) In-Stock Immediately $ 7.55

10 12684202B Cover, Right Hinge (black) Appelez-nous -
11 WP489349 Screw   (Replaces: 12990101) In-Stock Immediately $ 8.43

12 WP67003405 Block, Pivot   (Replaces: 12698403) In-Stock Immediately $ 8.21

14 WP489349 Screw (3)   (Replaces: 12992403) In-Stock Immediately $ 8.43

15 W10918164 Hinge, Center (lt) (black)   (Replaces: 13000007ED) Special Order $ 91.53

16 WP12566606ED Hinge, Right Top   (Replaces: 12566606ED) In-Stock Immediately $ 47.13

17 67003485 Cover, Corner (black)   (Replaces: 12587703B) In-Stock Immediately $ 22.14

20 67006564 Screw (4)   (Replaces: 12991302) In-Stock Immediately $ 8.15

21 W10211854 Cover, Unit Special Order $ 178.37

22 WPW10534153 Grille, Toe (black)   (Replaces: W10244561) Special Order $ 154.57

24 W10619951 Tube, Drain   (Replaces: W10210988) In-Stock Immediately $ 42.39

25 67006425 Screw   (Replaces: 12990511) In-Stock Immediately $ 7.30

26 12820505 Fiber, Acoustic Special Order $ 71.70

31 12579702 Shim, Top Hinge Appelez-nous -
32 WP7101P126-60 Screw, Block   (Replaces: 12990303) In-Stock Immediately $ 8.36

33 W10918164 Hinge, Center (rt) (black)   (Replaces: 13000008ED) Special Order $ 91.53

34 W10208592 Guard-water Valve Appelez-nous -
35 W10216614 Sweep-water Valve Special Order $ 18.51


    View Diagram in Separate Window     Print Icon   Print Part List

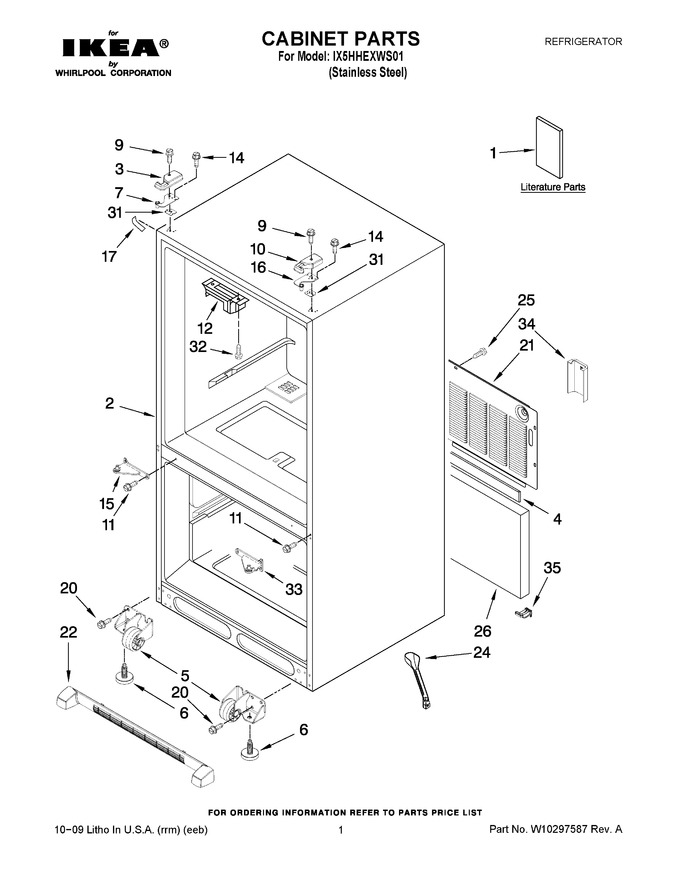

Diagram for IX5HHEXWS01
