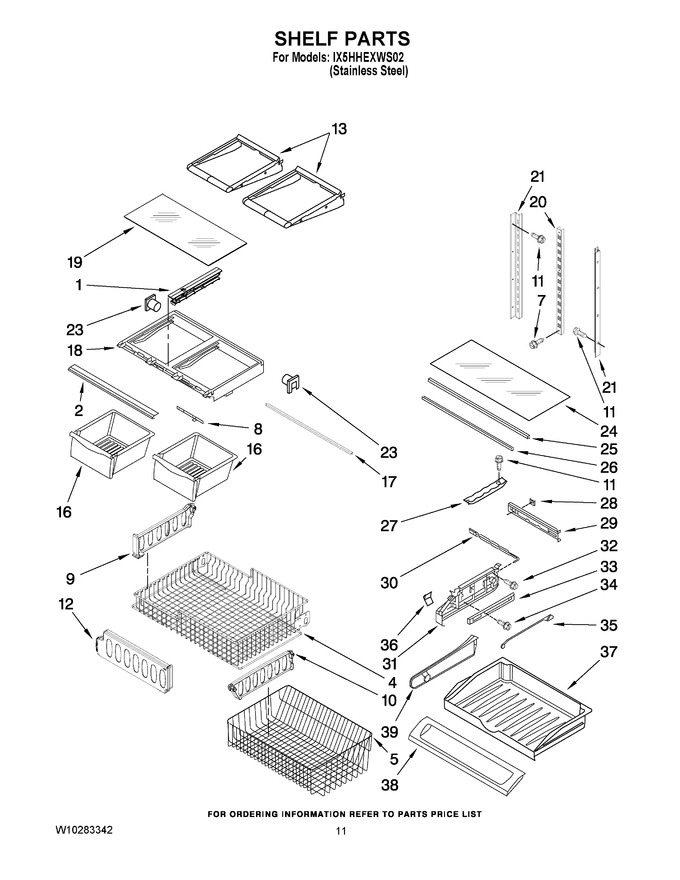

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10326469		Rail, Center Crisper   (Replaces: 12796401)			Immediately	$ 33.37
2	WPW10231345		Trim, Crisper   (Replaces: 12530631)				$ 137.67
4	W10201222		Basket, Freezer (upper)		Appelez-nous	-
5	W10150039		Basket, Freezer (lower)				$ 128.38
7	W10709795		Screw   (Replaces: 12990515)				$ 13.79
8	WP67005864		Slide, Humidity Control (2)   (Replaces: 12530805)			Immediately	$ 8.20
9	W10171557		Divider, Basket (upper)		Appelez-nous	-
10	W10205416		Divider, Basket (lower)		Appelez-nous	-
11	67006425		Screw   (Replaces: 12990513)			Immediately	$ 7.30
12	W10171558		Divider, Basket (upper)				$ 42.49
13	W10205737		Shelf-sta (2)				$ 304.16
16	WP67004515		Pan, Crisper   (Replaces: 12804601)			Immediately	$ 176.72
17	WP12642303WD		Brace, Crisper   (Replaces: 12642303WD)				$ 112.26
18	WP67003854		Frame, Crisper   (Replaces: 12796301)			Immediately	$ 227.55
19	WP67006704		Glass, Crisper Cover   (Replaces: 12204824)				$ 212.77
20	67001073		Ladder, Center   (Replaces: 12435807)				$ 56.89
21	12710608		Ladder, Side		Appelez-nous	-
23	WP13062602		Support, Crisper Frame   (Replaces: 13062602)				$ 84.87
24	12204817		Glass, Pantry		Appelez-nous	-
25	W11812285		Trim, Pantry Glass   (Replaces: 12655902)				$ 53.33
26	WP12227305WD		Brace, Pantry (2)   (Replaces: 12227305WD)				$ 108.36
27	WP67001719		Track, Pantry   (Replaces: 12531901)			Immediately	$ 8.99
28	67002329		Gasket, Pantry   (Replaces: 12656901)				$ 22.09
29	12656202		Housing, Control				$ 148.84
30	WP67003793		Slide, Control   (Replaces: 12655402)			Immediately	$ 78.49
31	W10874836		Endcap, Pantry (right)   (Replaces: 12656010)			Immediately	$ 38.43
31	W10874836		Endcap, Pantry (left)   (Replaces: 12656104)			Immediately	$ 38.43
32	WP98165		Screw (4)   (Replaces: 12990504)				$ 8.57
33	WPW10235370		Glide, Pantry (2)   (Replaces: 13058101)			Immediately	$ 199.80
34	WP67006415		Screw (4)   (Replaces: 12990512)				$ 8.38
35	WP67003795		Bar, Temp Cont.   (Replaces: 12655304)				$ 8.45
36	W11498983		Knob, Control   (Replaces: 12655204)				$ 30.64
37	WP67003531		Drawer, Pantry   (Replaces: 12731302)				$ 162.82
38	W10827015		Lid, Pantry   (Replaces: 12656815)			Immediately	$ 175.81
39	WP67002759		Divider, Pantry   (Replaces: 12731901)			Immediately	$ 61.25
