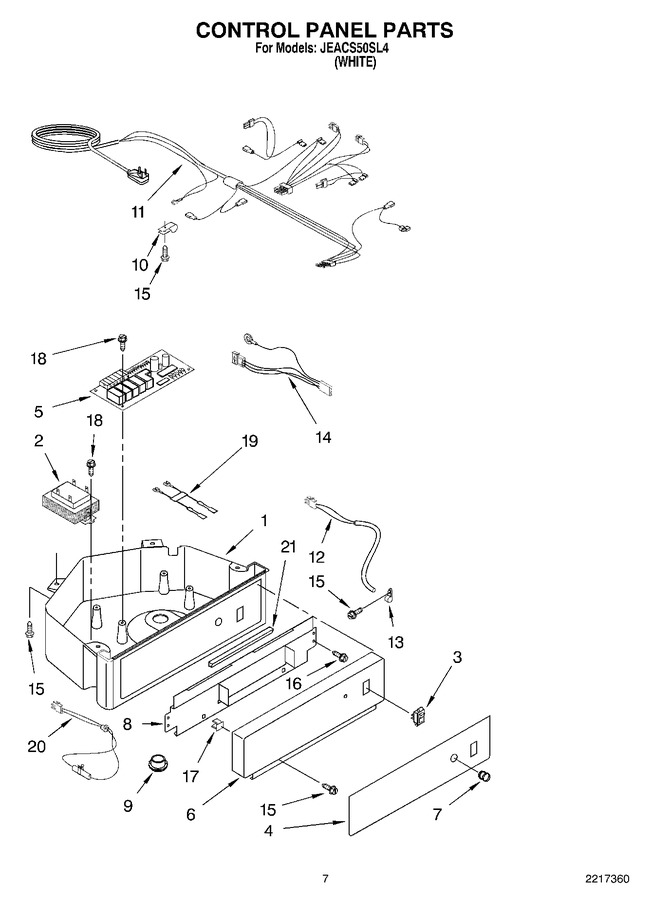

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2185761		Box, Control		Appelez-nous	-
2	2185657		Transformer				$ 163.75
3	2185622W		Switch, Rocker		Appelez-nous	-
4	2185896W		Overlay		Appelez-nous	-
5	6100499		P.c. Board		Appelez-nous	-
6	2185795W		Escutcheon		Appelez-nous	-
7	2185694		Lens, Led		Appelez-nous	-
8	2185786		Mounting Bracket, Escutcheon		Appelez-nous	-
9	2185816		Plug, Dome		Appelez-nous	-
10	W11456069		Clamp   (Replaces: 2185788)			Immediately	$ 22.40
11	2187286		Wiring Harness, Complete Unit (includes Power Cord)		Appelez-nous	-
12	WPW10503764		Thermostat, Bin   (Replaces: 2217288)				$ 125.23
13	2185825		Clamp		Appelez-nous	-
14	2185703		Wiring Harness, Main To Pump,		Appelez-nous	-
15	WP3400884		Screw 8-18 X 5/8   (Replaces: 3400884)				$ 8.10
16	WP999367		Screw 10-32x11/16   (Replaces: 489423)				$ 8.56
17	WP3400909		Nut, Push-in   (Replaces: 3400909)				$ 7.94
18	WP489443		Screw 8-16 X 3/8   (Replaces: 3400850)			Immediately	$ 8.33
19	2185808		Wiring Harness, Rocker Switch		Appelez-nous	-
20	2217289		Thermister, Ice Control		Appelez-nous	-
21	2208543		Grommet, Edge		Appelez-nous	-
