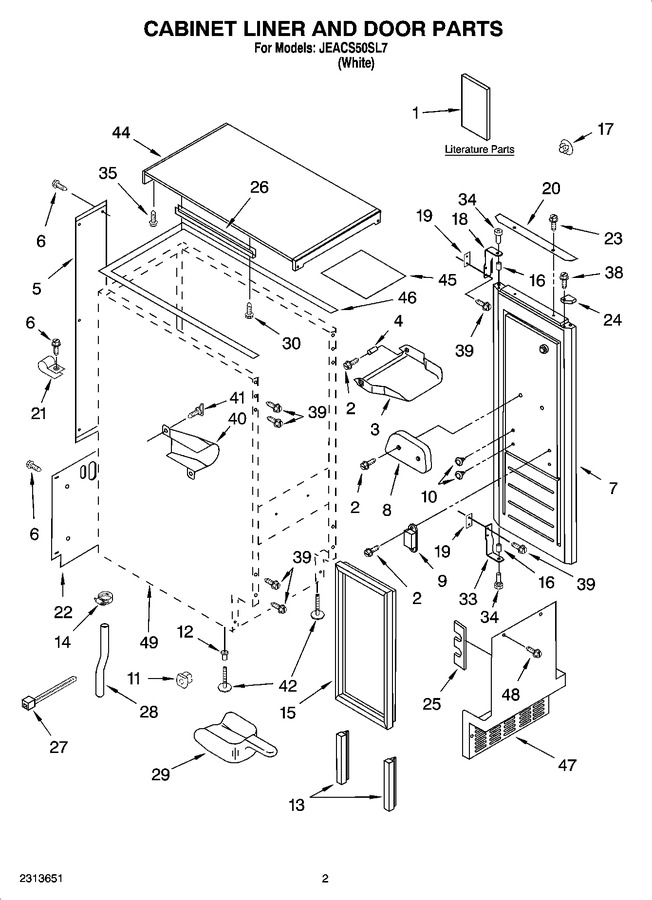

01 - Cabinet Liner And Door Parts


02 - Evaporator Ice Cutter Grid And Water Parts


03 - Pump Parts


04 - Control Panel Parts


05 - Unit Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2217407		Use & Care Guide		Appelez-nous	-
1	2313728		Service & Wiring Sheet		Appelez-nous	-
1	231365		Service Parts List (1)		Appelez-nous	-
2	3400886		Screw				$ 5.65
3	2185742		Bin, Door		Appelez-nous	-
4	2185678		Spacer				$ 11.03
5	2217394		Cover, Wiring		Appelez-nous	-
6	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
7	2932804W		Door		Appelez-nous	-
8	2185695		Cam, Door				$ 95.66
9	W11223751		Assembly, Magnetic Catch   (Replaces: 2217393)				$ 62.40
10	WP941839		Plug, Hole   (Replaces: 941839)				$ 8.03
11	WP692400		Nut, Push-in   (Replaces: 692400)			Immediately	$ 8.02
12	3400240		Nut, Leg Leveler		Appelez-nous	-
13	2217367		Gasket, Bottom		Appelez-nous	-
14	WP489503		Clamp   (Replaces: 489503)			Immediately	$ 11.29
15	2217291		Gasket, Door		Appelez-nous	-
16	2185640		Sleeve, Hinge		Appelez-nous	-
17	WP2189000		Hole Plug, Handle   (Replaces: 2189000)			Immediately	$ 7.77
18	2185710		Hinge, Top				$ 94.38
19	2185709		Shim, Hinge		Appelez-nous	-
20	2208495W		Handle, Door		Appelez-nous	-
21	WP488366		Clamp, Tube   (Replaces: 8533996)				$ 11.92
22	WPW10136199		Assembly, Unit Cover   (Replaces: 2185730)				$ 108.85
23	8281188		Screw, Handle		Appelez-nous	-
24	2185655W		Filler, Endcap (left Side)		Appelez-nous	-
24	2185656W		Filler, Endcap (right Side)		Appelez-nous	-
25	W10532250		Pad, Foam   (Replaces: 2185756)		Appelez-nous	-
26	2185691		Channel, Wiring		Appelez-nous	-
27	WPW10339879		Strap   (Replaces: 2155774)				$ 8.30
28	WP2185989		Tube, Drain   (Replaces: 2185989)				$ 115.22
29	W11420408		Scoop   (Replaces: 585158)				$ 28.61
30	WP3400884		Screw   (Replaces: 3400884)				$ 8.10
33	2185711		Hinge, Bottom				$ 96.36
34	2185712		Pin, Hinge				$ 49.37
35	WP250830		Screw, Ground   (Replaces: 489048)				$ 8.78
38	348689		Screw				$ 78.07
39	WP999367		Screw   (Replaces: 489423)				$ 8.56
40	2185927		Holder, Scoop				$ 89.07
41	8281228		Thumbscrew		Appelez-nous	-
42	8193716		Leg, Leveler (4)   (Replaces: 3374849)			Immediately	$ 88.96
44	2929700W		Top		Appelez-nous	-
45	2185690		Shield, Electrical		Appelez-nous	-
46	W11624957		Gasket, Top Panel   (Replaces: 2217293)		Appelez-nous	-
47	WP2185571W		Grill, Front   (Replaces: 2185571W)				$ 146.35
48	WP489474		Screw   (Replaces: 489474)			Immediately	$ 8.55
