SELECT A DIAGRAM

01 - Motor And Drive , Literature


02 - Frame


03 - Power Screw And Ram


04 - Cabinet And Control


05 - Container

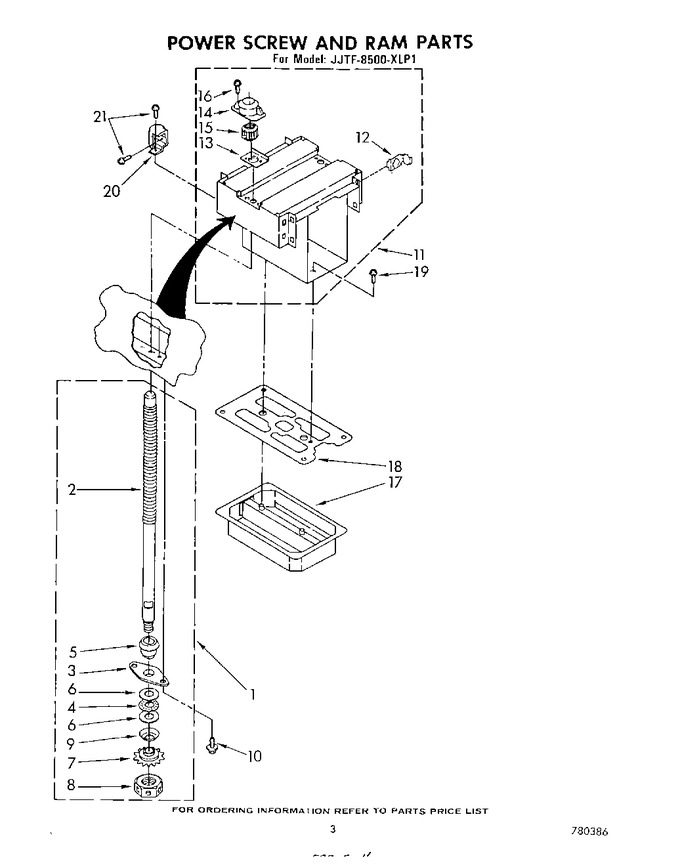

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	777876		Screw, Power Complete Assembly (2)		Appelez-nous	-
2	N/A		Screw, Power (available Only As Complete Assembly)		Appelez-nous	-
3	779121		Plate, Bearing (2)   (Replaces: 776942)				$ 29.22
4	W10917043		Bearing, Needle (2)   (Replaces: 775482)				$ 14.47
5	776941		Hub, Power Screw (2)				$ 28.14
6	775481		Race, Thrust (4)				$ 52.61
7	W11679164		Sprocket, Washer (2)   (Replaces: 777385)		Appelez-nous	-
8	4154842		Nut, Power Screw (2)   (Replaces: 780013)		Appelez-nous	-
9	WP777332		Washer, Cone (2)   (Replaces: 777332)				$ 7.30
10	775071		Screw, 1/4-20 X 3/4 (4)		Appelez-nous	-
11	780019		Ram Assembly		Appelez-nous	-
12	777758		Pad, Ram (8)		Appelez-nous	-
13	608733		Plate, Doubler (2)		Appelez-nous	-
14	780036		Retainer, Nut (2)		Appelez-nous	-
15	WP777533		Nut, Power (2)   (Replaces: 777533)				$ 89.38
16	WP3351614		Screw, 10-24 X 3/8 (4)   (Replaces: 780034)			Immediately	$ 7.30
17	608723		Cover, Ram		Appelez-nous	-
18	780021		Wiper, Ram		Appelez-nous	-
19	WP681414		Screw, 10-16 X 1/2   (Replaces: 777595)			Immediately	$ 8.47
20	777691		Block, Container Stop		Appelez-nous	-
21	285006		Paint, Spray 13 Oz. (black)				$ 59.89
21	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
21	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
21	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
21	261888		Avocado		Appelez-nous	-
21	261890		Harvest Gold		Appelez-nous	-
21	675167		Primer (tan)		Appelez-nous	-
21	978726		Stanford Brown		Appelez-nous	-
21	261886		Coffee		Appelez-nous	-
21	350956		Paint, Spray 13 Oz. (almond)				$ 54.01
21	WP90767		Screw, 8-18 X 3/8 (2)   (Replaces: 777444)			Immediately	$ 8.25
21	675351		Grease, 14 Oz. Tube (use On Power Screws & Ram Pressure Pads)   (Replaces: 675176)		Appelez-nous	-
21	778580		Harness, Wiring		Appelez-nous	-
21	777635		Deodorizer, Solid Stick-ups (2-pack)		Appelez-nous	-
21	DD81-03505A		Paint, Touch-up 1/2 Oz. (stanford Brown)   (Replaces: 72106)				$ 121.47
21	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 109.25
21	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 60.28
21	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86

    View Diagram in Separate Window       Print Part List
