SELECT A DIAGRAM

01 - Motor And Drive, Lit/optional


02 - Frame


03 - Powerscrew And Ram


04 - Cabinet And Control

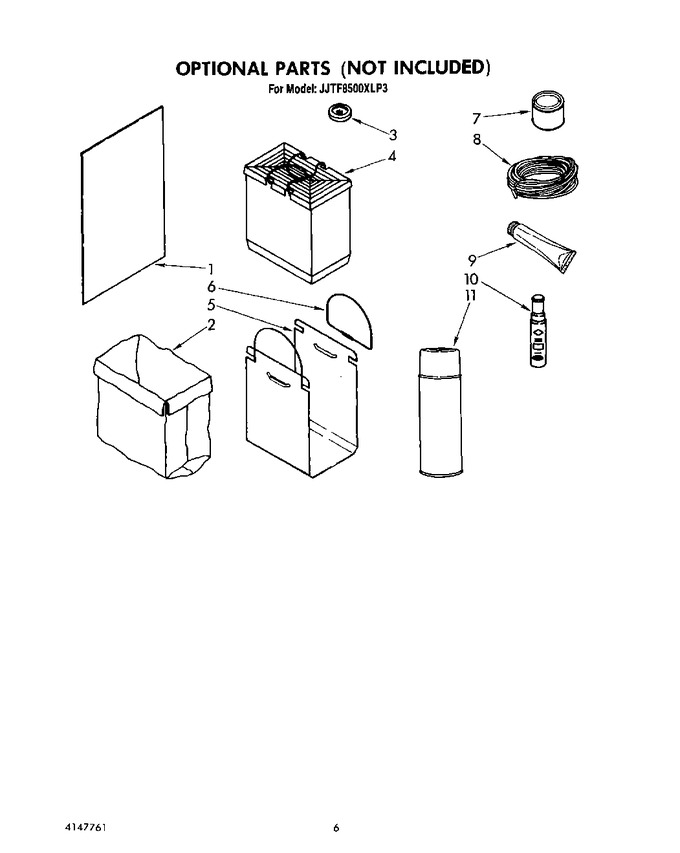

05 - Container


06 - Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	777714		Panel, Container Front (coffee & Harvest Gold)		Appelez-nous	-
1	780280		Panel, Container Front (platinum & Toast)		Appelez-nous	-
1	608438		Panel, Container Front (white & Copper Hi-lite)		Appelez-nous	-
1	777761		Panel, Contianer Front (white & New Avocado)		Appelez-nous	-
1	777762		Panel, Container Front (almond & Harvest Gold)		Appelez-nous	-
1	777941		Panel, Container Front (black & White)				$ 36.40
1	675378		Panel, Contianer Front (brushed Chrome)		Appelez-nous	-
1	777912		Panel, Container Front (coffee & Avocado)		Appelez-nous	-
2	675186		Bag, Trash (12 Pack)				$ 22.83
2	675350		Bag, Trash (96 Pack)		Appelez-nous	-
2	882652		Bag, Trash (48 Pack)				$ 82.10
3	777635		Deodorizer, Solid Stick-ups (2-pack)		Appelez-nous	-
4	882653		Trash, Container (reusable)		Appelez-nous	-
5	13030RP		Carrier, Bag (includes No.6)   (Replaces: 776989)			Immediately	$ 55.55
6	WP777108		Handle, Bag Carrier   (Replaces: 777108)				$ 35.23
7	675351		Grease 4 Oz. (use On Power Screw & Ram Pressure Pads)		Appelez-nous	-
8	47263		Wire, 25`` Roll (white 12 Ga.)		Appelez-nous	-
8	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
8	10875		Wire (16 Ga. 80 C Blue)			Immediately	$ 20.64
8	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
8	242826		Wire, 25`` Roll (white 14 Ga.)		Appelez-nous	-
8	47261		Wire, 25`` Roll (black 12 Ga.)		Appelez-nous	-
8	299885		Wire, 25` Roll (red 12 Ga.)		Appelez-nous	-
9	WP279368		Adhesive, Insulation (2oz Tube)   (Replaces: 279368)			Immediately	$ 110.91
10	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 60.28
10	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
10	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
10	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
10	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
10	DD81-03505A		Paint, Touch-up 1/2 Oz. (stanford Brown)   (Replaces: 72106)				$ 121.47
10	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 117.11
10	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
10	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 109.25
11	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
11	261888		Paint, Spray 13 Oz. (avocado)		Appelez-nous	-
11	285006		Paint, Spray 13 Oz. (black)				$ 57.04
11	261886		Paint, Spray 13 Oz. (coffee)		Appelez-nous	-
11	261890		Paint, Spray 13 Oz. (harvest Gold)		Appelez-nous	-
11	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
11	675167		Paint, Spray 13 Oz. (electro Tan)		Appelez-nous	-
11	978726		Paint, Spray 13 Oz. (stanford Brown)		Appelez-nous	-
11	285365		Paint, Spray (13 Oz.) (toast)		Appelez-nous	-
11	350956		Paint, Spray 13 Oz. (almond)				$ 51.44

    View Diagram in Separate Window       Print Part List
