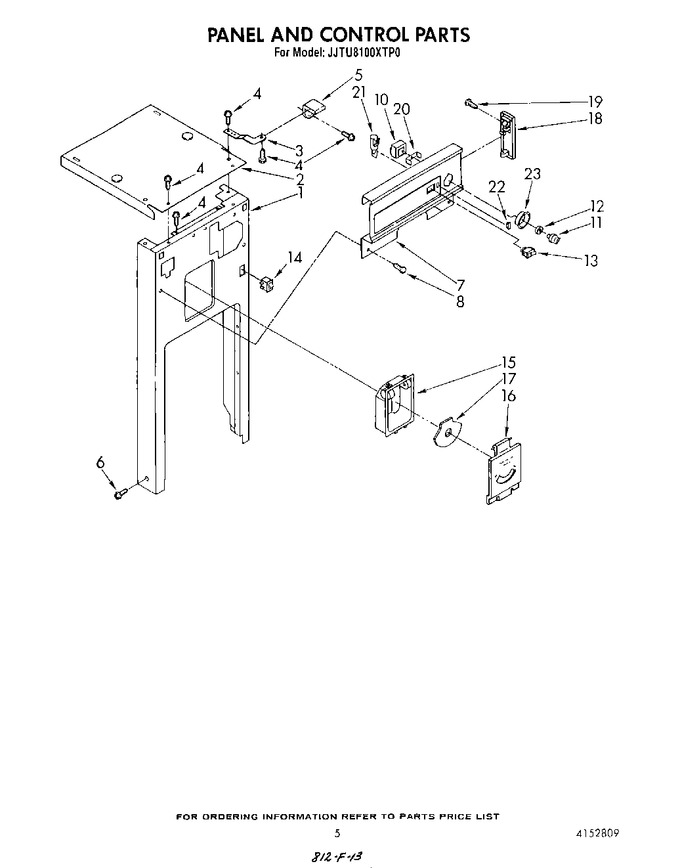

SELECT A DIAGRAM

01 - Motor And Drive , Lit/optional


02 - Frame


03 - Power Screw And Ram


04 - Container


05 - Panel And Control


06 - Accessory


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4152069		Panel, Front Frame		Appelez-nous	-
2	W11684543		Cover, Top   (Replaces: 608572)		Appelez-nous	-
3	W11729437		Bracket, Retainer (l.h.)   (Replaces: 780465)			Immediately	$ 24.48
3	W11729437		Bracket, Retainer (r.h.)   (Replaces: 780464)			Immediately	$ 24.48
4	WP302868		Screw, 8-18 X 1/2   (Replaces: 780138)			Immediately	$ 8.18
5	WP780239		Bracket, Mounting (2) (alternate)   (Replaces: 780239)				$ 28.53
6	WP489069		Screw, 8 X 1/2ab (6)   (Replaces: 776076)			Immediately	$ 8.40
7	882678		Escutcheon, Control (optional-white)		Appelez-nous	-
7	4152837		Escutcheon, Control		Appelez-nous	-
8	776559		Screw, 6-20 X 3/8 (2)		Appelez-nous	-
10	675382		Switch, Rotary Start-run   (Replaces: 608824)				$ 246.48
11	776594		Knob, Switch   (Replaces: 780392)				$ 30.27
12	WP777383		Nut, Switch   (Replaces: 777383)				$ 12.83
13	WP4314961		Switch, Rocker   (Replaces: 780398)				$ 93.95
14	WP4387911		Switch, Drawer Tilt   (Replaces: 4152058)			Immediately	$ 41.64
15	777642		Compartment, Air Flow		Appelez-nous	-
16	608783		Cover, Air Flow		Appelez-nous	-
17	608782		Dail, Air Flow		Appelez-nous	-
18	4151458		End Cap, L.h.		Appelez-nous	-
18	4151457		End Cap, R.h.		Appelez-nous	-
19	WP489069		Screw, 8-18 X 1/2   (Replaces: 780230)			Immediately	$ 8.40
20	780417		Bracket, Switch		Appelez-nous	-
21	4147718		Light, Indicator		Appelez-nous	-
22	4147746		Lens, Indicator		Appelez-nous	-
23	780387		Bezel		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
