SELECT A DIAGRAM

Diagram for 01 - Cabinet, Door And Liner, Lit/optional
01 - Cabinet, Door And Liner, Lit/optional

Diagram for 02 - Evaporator, Grid And Pump
02 - Evaporator, Grid And Pump

Diagram for 03 - Pump
03 - Pump

Diagram for 04 - Escutcheon And Control Panel
04 - Escutcheon And Control Panel

Diagram for 05 - Unit
05 - Unit

Diagram for 06 - Drain Pump
06 - Drain Pump


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 758309 Transformer Appelez-nous -
3 756664 Escutcheon, Panel Appelez-nous -
4 593139 Switch, Service Appelez-nous -
5 756341 Bracket, Control Appelez-nous -
6 WP965173 Screw, 8-15 X 3/8   (Replaces: 595431) In-Stock Immediately $ 11.87

7 WP486579 Screw, 8-32 X 1/4   (Replaces: 595005) Special Order $ 7.89

9 758728 Escutcheon Appelez-nous -
10 2165567 Decal, Escutcheon Appelez-nous -
11 759308 Thermostat, Evaporator Special Order $ 107.45

12 759309 Thermostat, Bin Control Special Order $ 126.04

15 681036 Screw, Appelez-nous -
19 757464 Harness, Grid Appelez-nous -
20 758725 Knob Appelez-nous -
21 759007 Latch Appelez-nous -
22 680964 Screw, 8-32 X 1/2 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

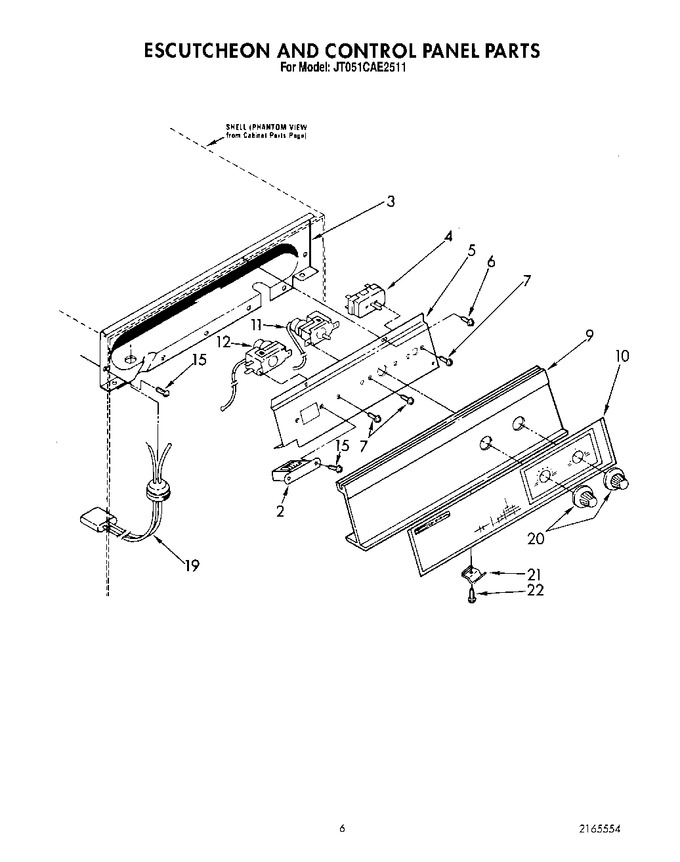

Diagram for JT051CAE2511
