SELECT A DIAGRAM

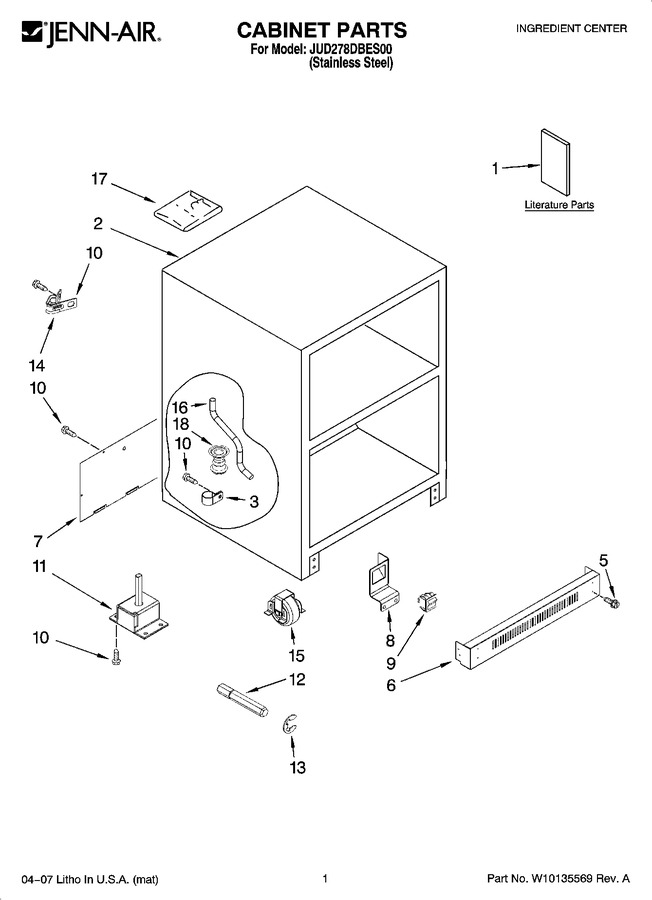

01 - Cabinet Parts


02 - Liner Parts


03 - Drawer Parts


04 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10122766		Use & Care Guide		Appelez-nous	-
1	2258088		Temperature Guide		Appelez-nous	-
1	W10122769		Service & Wiring Sheet		Appelez-nous	-
1	W10122764		Energy Guide		Appelez-nous	-
3	2258085		Clamp, Drain Tube		Appelez-nous	-
5	W10113774		Screw		Appelez-nous	-
6	2258378		Grille		Appelez-nous	-
7	2257885		Cover, Unit		Appelez-nous	-
8	2257923		Bracket, Switch		Appelez-nous	-
9	WP2266802		Switch, Power   (Replaces: 2266802)				$ 109.08
10	WP489478		Screw   (Replaces: 489478)				$ 8.18
11	2005032		Leveler Asm (4)			Immediately	$ 200.07
12	2257892		Rod, Leveler (rear (2))		Appelez-nous	-
12	2257893		Rod, Leveler (front (2))		Appelez-nous	-
13	2006841		Ring, Retaining				$ 92.66
14	549193		Clamp, Power Cord				$ 14.06
15	WPW10138054		Roller (4)   (Replaces: 1112023)				$ 45.34
16	2257916		Tube, Drain		Appelez-nous	-
17	2258203		Kit, Mounting (4 Brackets & 16 Screws)		Appelez-nous	-
18	W11566763		Drain Fitting   (Replaces: 940139)			Immediately	$ 53.45

    View Diagram in Separate Window       Print Part List
