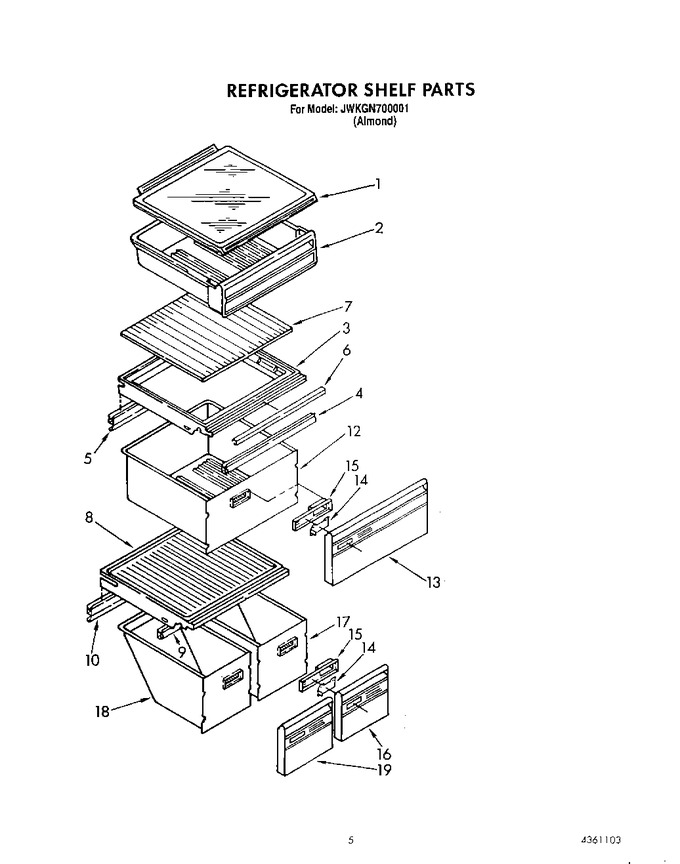

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1124826 | Shelf Assembly, Glass Sliding (3) |
|
- | |||||
| 2 | 1124829 | Snack Bin |
|
- | |||||
| 3 | WP1126289 | Cover, Crisper (Replaces: 1124822) |
|
$ 190.80 | |||||
| 4 | 1115291 | Gasket, Crisper (front) |
|
- | |||||
| 5 | 1121385 | Gasket, Crisper (rear) |
|
- | |||||
| 6 | 1119190 | Trim, Crisper Cover |
|
- | |||||
| 7 | 1114687 | Glass, Crisper Cover |
|
$ 88.24 | |||||
| 8 | 1124812 | Cover, Meat Pan |
|
- | |||||
| 9 | 1115292 | Gasket (front) |
|
- | |||||
| 10 | 1121384 | Gasket (rear) |
|
- | |||||
| 12 | WP2148279 | Pan, Crisper (Replaces: 1114682) |
|
$ 144.08 | |||||
| 13 | 1124817 | Front, Crisper Pan |
|
- | |||||
| 14 | 1124819 | Slide, Humidity Control |
|
- | |||||
| 15 | 1124820 | Housing, Humidity Control |
|
- | |||||
| 16 | 1124825 | Front, Meat Pan |
|
- | |||||
| 17 | 1114690 | Pan, Crisper |
|
- | |||||
| 18 | 1114691 | Meat Pan |
|
- | |||||
| 19 | 1124814 | Front, Meat Pan |
|
- |
