Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP681414 Screw,10-16 X 1/2   (Replaces: 343641) In-Stock Immediately $ 8.47

2 345396 Clip, Air Duct To Bulkhead Appelez-nous -
3 696547 Air Duct & Bracket Appelez-nous -
4 WP90767 Screw, 8a X 3/8 (hex Head)   (Replaces: 90767) In-Stock Immediately $ 8.25

5 WP694674 Thermostat, Operating (140 Of) (60.0 Oc) 342812 (alt.)   (Replaces: 660040) In-Stock Immediately $ 50.51

7 279320 Block, Terminal   (Replaces: 690261) In-Stock Immediately $ 68.25

8 279769 Fuse, Thermal   (Replaces: 3389946) In-Stock Immediately $ 62.85

9 WP681414 Screw, 10-16 X 1/2   (Replaces: 687128) In-Stock Immediately $ 8.47

10 279771 Clip, Heater Box To Bulkhead   (Replaces: 337272) Special Order $ 15.05

11 695547 Heater Box (120/240 Volts) Appelez-nous -
12 696632 Element, Heater Appelez-nous -
13 WP339956 Seal, Air Duct To Bulkhead   (Replaces: 339956) In-Stock Immediately $ 9.06

14 WP696426 Wheel, Blower   (Replaces: 696426) In-Stock Immediately $ 136.69

15 WP308685 Screw, 10-16 X 1/2 (3) (fan Scroll To Bulkhead)   (Replaces: 9416643) In-Stock Immediately $ 7.87

16 696658 Seal, Fan Scroll Appelez-nous -
17 WP696418 Fan Scroll   (Replaces: 696418) Special Order $ 121.99

18 WP488729 Screw   (Replaces: 695240) In-Stock Immediately $ 8.28

19 696818 Thermostat, Heater Box (225 Of) (107.2 Oc) Special Order $ 39.82

20 3388777 Harness, Thermostat & Heater (includes Illus. 20a) Appelez-nous -
21 WPW10359269 Shaft, Drum Roller (r.h.)   (Replaces: 339489) In-Stock Immediately $ 47.30

22 3391834 Drum, Dryer   (Replaces: 695943) Special Order $ 372.51

23 WP3394508 Bearing, Ring   (Replaces: 297936) Special Order $ 131.86

24 00685207 Baffle, Drum (3)   (Replaces: 685207) Special Order $ 326.00

25 690372 Screw, Baffle Mounting (6) (11-16 X 7/8) Appelez-nous -
26 279735 Seal, Drum Rear   (Replaces: 345648) In-Stock Immediately $ 66.71

27 279848 Bulkhead   (Replaces: 695931) Special Order $ 364.78

28 W10828351 Screen, Lint   (Replaces: 348399) In-Stock Immediately $ 56.24

29 W10828351 Cover, Lint Screen Outlet   (Replaces: 685273) In-Stock Immediately $ 56.24

30 WPW10512946 Tri Ring (4)   (Replaces: 690997) In-Stock Immediately $ 8.80

31 WPW10359270 Shaft, Drum Roller (l.h.)   (Replaces: 347364) In-Stock Immediately $ 72.71

32 349241T Roller, Support (2)   (Replaces: 349241) In-Stock Immediately $ 29.53

33 WP348197 Washer, Support (4)   (Replaces: 348197) Special Order $ 7.55

34 120377 Nut, 3/8-16 (2) Appelez-nous -
35 WP3390631 Screw, Tapping (4) (bulkhead To Base)   (Replaces: 342202) Special Order $ 8.25

36 3388225 Harness, Main Dryer Wiring (includes Illus. 36a, 36b & 36c) Appelez-nous -
37 693141 Clip, Wiring Harness (3) Appelez-nous -
38 3390602 Cord, Power Appelez-nous -
39 279457 Terminal Wire Kit (for Heater Element Wiring Harness Repair) In-Stock Immediately $ 7.92

40 WP3388703 Washer-support   (Replaces: 3388703) Special Order $ 7.85

41 279393 Screw Kit (for Terminal Block) In-Stock Immediately $ 55.66

42 279318 Terminal, Tinned & Brass (3) (includes Illus. 41) In-Stock Immediately $ 106.04

43 WP681414 Screw, Ground (2) (10-32 X 1/2)   (Replaces: 690989) In-Stock Immediately $ 8.47

44 3389665 Clip, Harness Appelez-nous -
45 61894 Heater, Thermostat Special Order $ 37.38

46 WP488729 Screw, 8-18 X 1/2 (2)   (Replaces: 695240) In-Stock Immediately $ 8.28

47 WP3392519 Fuse, Thermal   (Replaces: 694511) In-Stock Immediately $ 24.95

48 W10491983 Cap, Screw   (Replaces: 359702) Appelez-nous -
49 488946 Clip, Strain Relief   (Replaces: 255563) Special Order $ 21.47

50 WP3400935 Clip, Harness To Duct (2)   (Replaces: 697439) Special Order $ 10.20

51 312147 Washer Appelez-nous -
20A 692997 Plug, Multi-terminal (connects With Main Dryer Harness) Appelez-nous -
36A 717252 Receptacle, Terminal (2-way) (connects With Door Switch Harness) Appelez-nous -
36B 692998 Receptacle, Multi-terminal (connects With Thermostat & Heater Harness) Appelez-nous -
36C 717315 Receptacle, Terminal (2-way) (connects With Automatic Console Harness) Appelez-nous -
38A 687000 Strain-relief (power Cord) Special Order $ 82.70


    View Diagram in Separate Window     Print Icon   Print Part List

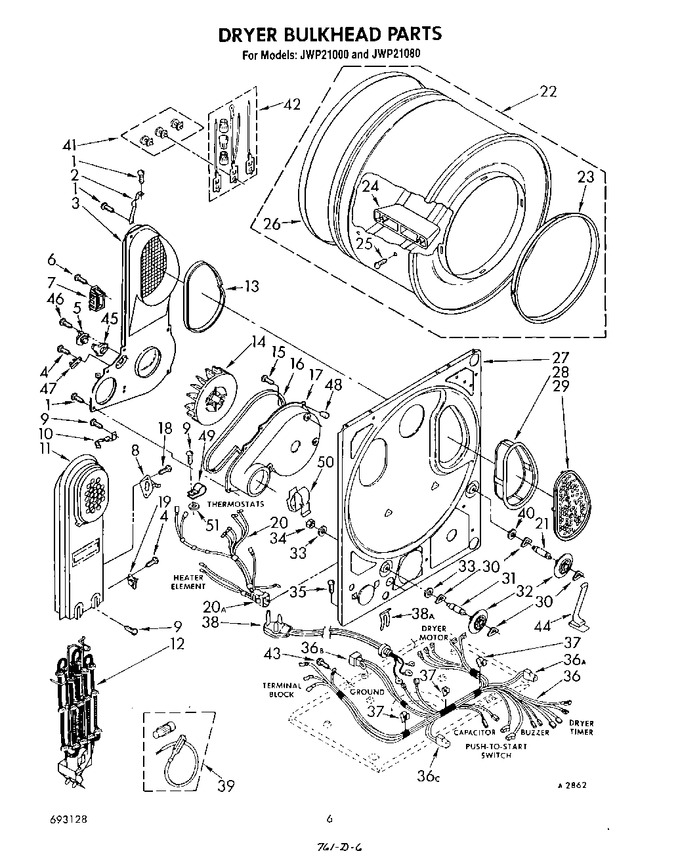

Diagram for JWP21000
