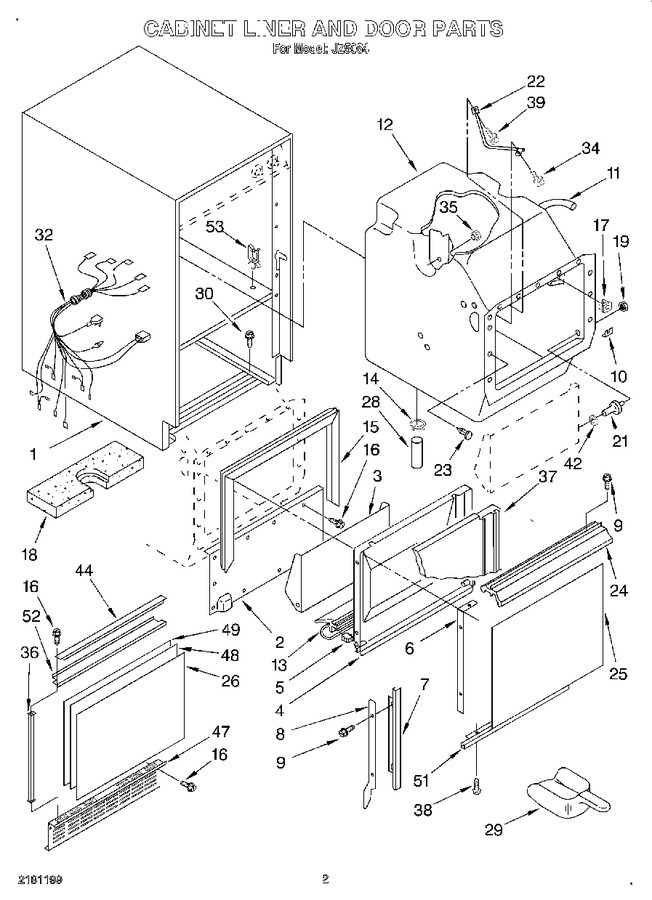

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2175636		Shell		Appelez-nous	-
2	2175619		Front, Shell		Appelez-nous	-
3	756330		Door, Inner Bin		Appelez-nous	-
4	758655		Liner, Door		Appelez-nous	-
5	593192		Plug, Hinge		Appelez-nous	-
6	593104		Strip, Tapping (2)		Appelez-nous	-
7	755676		Trim, Door (left Side)		Appelez-nous	-
7	755675		Trim, Door (right Side)		Appelez-nous	-
8	593184		Rail, Door (right Side)		Appelez-nous	-
8	593185		Rail, Door (left Side)		Appelez-nous	-
9	681459		Screw, 8-32 X 5/8 (6)		Appelez-nous	-
10	758492		Washer (2)		Appelez-nous	-
11	759213		Tube, Water Fill		Appelez-nous	-
12	756350		Liner (includes Nos. 10, 11, 17, 19, 21, And 35)		Appelez-nous	-
13	555555		Gasket, Bottom   (Replaces: 2172898)				$ 168.82
14	596023		Clamp (2)		Appelez-nous	-
15	758921		Gasket		Appelez-nous	-
16	WP488729		Screw, No.8 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
17	596807		Grommet		Appelez-nous	-
18	756891		Insulation, Bottom, Foam		Appelez-nous	-
19	681542		Nut		Appelez-nous	-
21	758220		Stud (2)		Appelez-nous	-
22	593183		Well, Bin Thermostat		Appelez-nous	-
23	596812		Clip, Panel (12)		Appelez-nous	-
24	758902		Pull, Door		Appelez-nous	-
25	758888		Panel, Exterior		Appelez-nous	-
26	758889		Panel, Exterior		Appelez-nous	-
28	593577		Connector, Hose		Appelez-nous	-
29	W11420408		Scoop   (Replaces: 585158)				$ 28.61
30	680811		Screw, 10-32 X 3/8		Appelez-nous	-
32	2174781		Wiring Harness, Cabinet		Appelez-nous	-
34	680930		Thumbscrew, 10-1/2		Appelez-nous	-
35	596715		Well Nut (3)		Appelez-nous	-
36	758713		Trim Side (2)		Appelez-nous	-
37	758754		Insulation, Door		Appelez-nous	-
38	681196		Screw		Appelez-nous	-
39	681419		Thumbscrew		Appelez-nous	-
42	681613		Washer		Appelez-nous	-
44	758716		Trim, Top And Bottom		Appelez-nous	-
47	758769		Grill, Front		Appelez-nous	-
48	758770		Panel, Filler		Appelez-nous	-
49	758771		Panel, Inner		Appelez-nous	-
51	755677		Trim, Door (lower)		Appelez-nous	-
52	2175604		Support, Front		Appelez-nous	-
53	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
53	978026		Valve, Access (5/16``)			Immediately	$ 134.49
53	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
53	978028		Valve, Access (1/2)		Appelez-nous	-
53	978029		Valve Access (5/8``)				$ 93.85
53	978030		Valve, Access (3/4``)				$ 137.25
53	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
53	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
53	489482		Retainer, Wire		Appelez-nous	-
53	WP279368		Cement, Insulation (1 Oz.)   (Replaces: 797403)			Immediately	$ 116.46
53	212643		Sealer, Gum (22 Pcs. 3/16`` X 7``)			Immediately	$ 82.13
53	876370		Kit, Insulation (5 Pcs. 3`` X 24`` X 48)   (Replaces: 479976)				$ 243.14
	LIT2180911		Instructions, Installation		Appelez-nous	-
	LIT2181199		Repair Parts List		Appelez-nous	-
	LIT2180830		Service And Wiring Sheet		Appelez-nous	-
	LIT758887		Use & Care Guide		Appelez-nous	-
