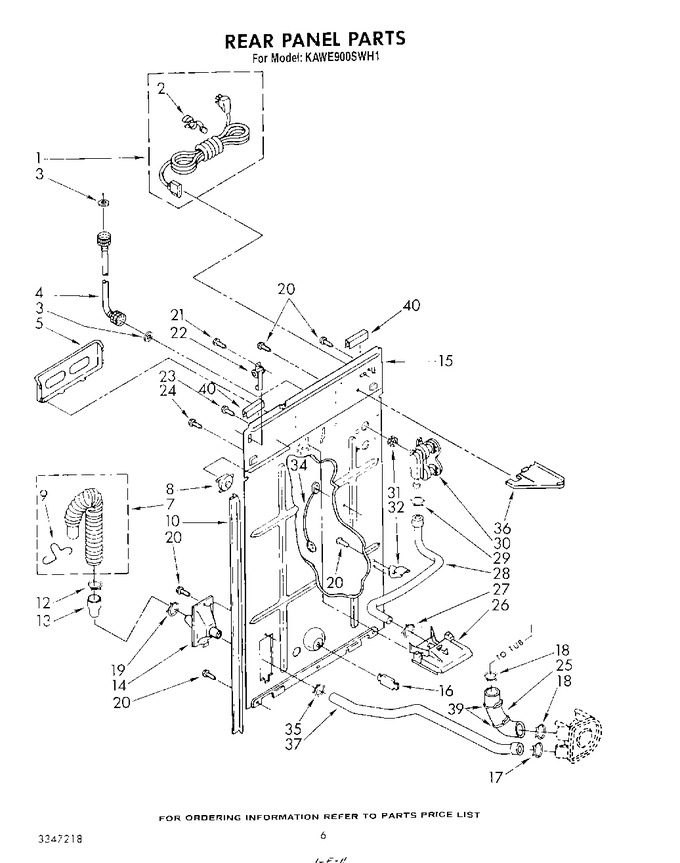

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10820044		Cord, Power   (Replaces: 62734)				$ 149.87
2	W11733005		Clip, Strain Relief   (Replaces: 63848)				$ 13.58
3	WP16123		Washer, Water Inlet Hose (4)   (Replaces: 16123)				$ 8.16
4	WP89503		Hose, Water   (Replaces: 660028)			Immediately	$ 24.09
5	63020		Rack, Literature				$ 30.32
7	285664		Hose, Corrugated Plastic Drain (5-1/2 Ft.)   (Replaces: 387325)			Immediately	$ 36.89
7	285666		Hose, Corrugated Plastic Drain (10 Ft.) (not Included)   (Replaces: 388418)			Immediately	$ 62.34
8	3347694		Speaker		Appelez-nous	-
9	357247		Retainer, Wire		Appelez-nous	-
10	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 27.57
12	WP616099		Clamp, Hose   (Replaces: 371504)			Immediately	$ 8.58
13	WP384496		Coupling, Hose   (Replaces: 384496)				$ 90.39
14	WPW10358149		Connector, Drain   (Replaces: 3349018)			Immediately	$ 48.16
15	3348430		Panel, Rear		Appelez-nous	-
16	WP8519200		Support, Rear Panel   (Replaces: 63290)			Immediately	$ 19.85
17	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 8.52
18	WP285655		Clamp, Hose   (Replaces: 272858)			Immediately	$ 8.81
19	WP356138		Clamp, Hose   (Replaces: 272856)			Immediately	$ 8.52
20	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 8.25
21	WP308685		Screw, 10-16 X 1/2   (Replaces: 9416643)			Immediately	$ 7.87
22	387402		Hinge, Console (2)				$ 5.84
23	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
24	WP681414		Screw, 10-16 X 1/2   (Replaces: 359262)			Immediately	$ 8.47
25	285871		Hose, Pump To Tub   (Replaces: 62731)			Immediately	$ 28.99
26	WP3360977		Vacuum Break   (Replaces: 387606)			Immediately	$ 50.46
27	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 8.82
28	WP3357328		Hose, Vacuum Break   (Replaces: 62662)			Immediately	$ 24.78
29	WP596669		Clamp, Hose   (Replaces: 272846)			Immediately	$ 8.82
30	285805		Valve, Mixing   (Replaces: 358992)			Immediately	$ 55.08
31	WP96160		Screen, Filter   (Replaces: 96160)				$ 12.30
32	63162		Pin, Cabinet Guide (2)		Appelez-nous	-
34	364089		Wire, Ground		Appelez-nous	-
35	WP356138		Clamp, Hose   (Replaces: 272856)			Immediately	$ 8.52
36	3348424		Sheild, Suds		Appelez-nous	-
37	WP3348552		Hose, Pump To Drain Connector   (Replaces: 3348552)				$ 89.09
39	WP371502		Clamp Hose (2)   (Replaces: 371502)				$ 12.31
40	303294		Protector (2)		Appelez-nous	-
