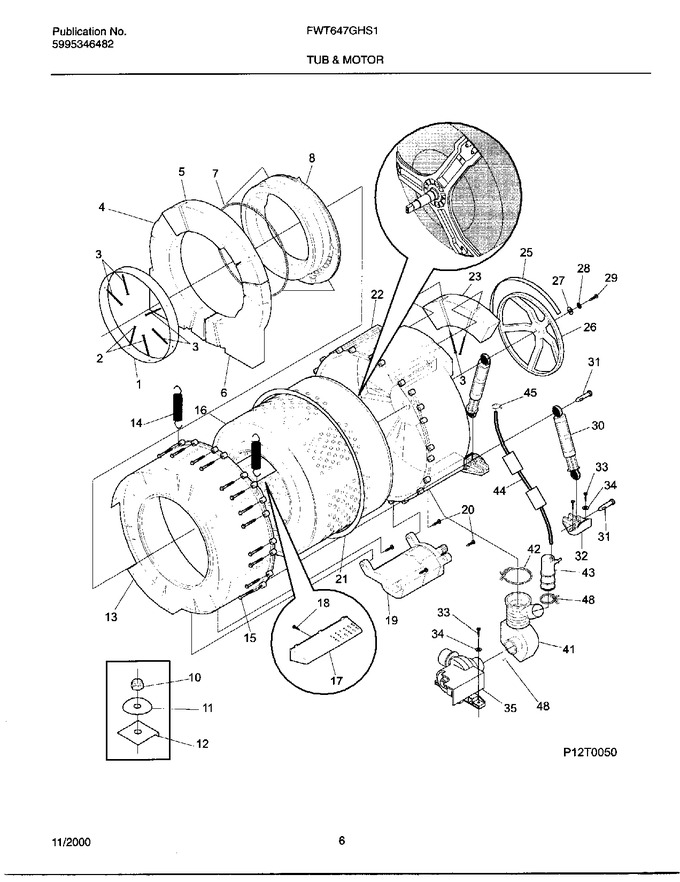

06 - Wshr Tub,motor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131793400		Ring-weight				$ 35.07
2	131793301		Bolt-carriage 1/4-20x4.5				$ 9.14
3	131793300		Bolt-carriage 1/4-20x4.15		Appelez-nous	-
4	131276500		Weight-lwr Left		Appelez-nous	-
5	131276600		Weight-top Front		Appelez-nous	-
6	131851900		Counterweight-lower Right		Appelez-nous	-
7	131277300		Spring-boot				$ 48.39
8	5303937187		Bellows   (Replaces: 131277100)			Immediately	$ 149.03
10	131304700		Nut				$ 8.14
11	131276900		Washer-spring				$ 24.10
12	131793500		Plate-weight				$ 11.76
13	131618600		Shell-front Tub				$ 482.76
14	134144700		Spring/sleeve   (Replaces: 131663600)			Immediately	$ 66.94
15	131303900		Screw,hxwhd A ,1/4-10x2.165				$ 17.33
16	131618500		Tub-spin				$ 787.77
17	131274600		Vane			Immediately	$ 75.51
18	131302800		Screw-vane,quad Ph Ab `10-16x.375			Immediately	$ 29.53
19	131722800		Motor-siemens (950 Rpm Spin)				$ 455.35
20	131303500		Screw-motor,hwhd Ab ,12-14x1.50				$ 13.39
21	134146100		Seal-shell   (Replaces: 131275900)			Immediately	$ 79.53
22	131525500		Shell-rear/bearing   (Replaces: 131462800)			Immediately	$ 634.00
23	131709300		Weight-upper Back		Appelez-nous	-
27	131304400		Washer .41x1.500x.120				$ 32.52
28	131304500		Washer-lock,3/8				$ 12.53
29	131303700		Screw-pulley,m10x.92				$ 17.67
30	5304485917		Level-shock   (Replaces: 131268200)			Immediately	$ 50.49
31	131268300		Pin-level			Immediately	$ 14.18
32	131268100		Bracket-shock				$ 59.90
33	131303100		Screw,hwhd Ab ,10-16x.625		Appelez-nous	-
34	131304300		Washer .21x.71x.06`.21x.71x.06		Appelez-nous	-
35	137108000		Pump-drain H Axis Wshr 40mm   (Replaces: 131889800)			Immediately	$ 238.57
41	131784700		Hose-coin Trap-tub To Pump			Immediately	$ 129.30
42	134737300		Clamp   (Replaces: 131333101)				$ 22.37
43	131277500		Chamber-air				$ 51.41
44	131277600		Tube-pressure		Appelez-nous	-
45	131306202		Clamp				$ 11.63
48	5304536802		Clamp-pump   (Replaces: 131306234)			Immediately	$ 4.46
F25	134051000		Belt   (Replaces: 131276300)			Immediately	$ 43.31
F26	131632500		Pulley-drum		Appelez-nous	-
NI	131560000		Sleeve-lower Spring,tub				$ 14.89
NI	131592200		Sleeve-upper Spring,tub				$ 40.01
