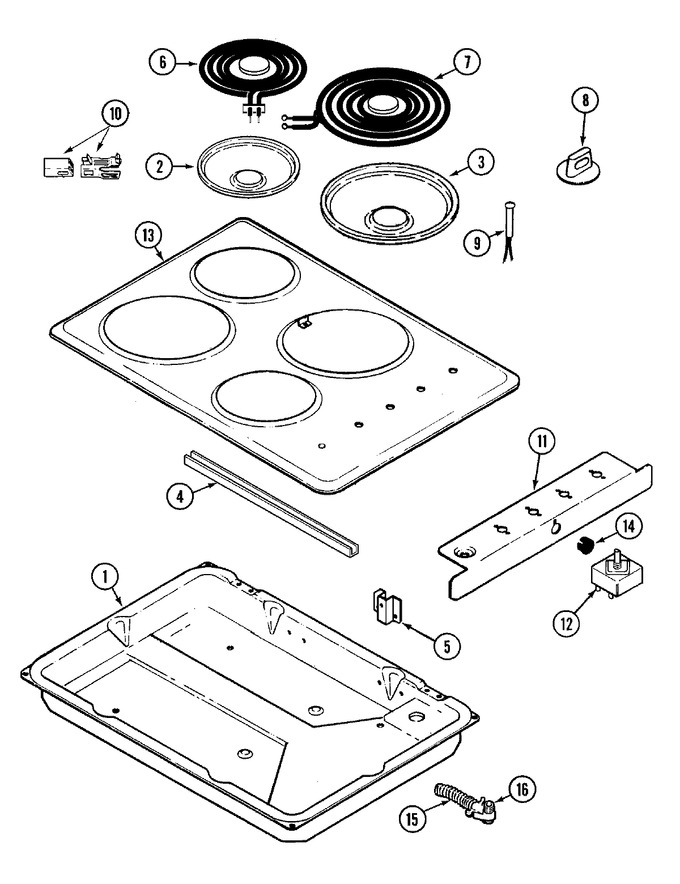

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4011F143-80		Bottom, Burner Box	10	Appelez-nous	-
2	WPW10196406		Bowl, Drip (6``-chr)   (Replaces: 74001212)	10		Immediately	$ 13.39
3	WPW10196405		Bowl, Drip (8``-chr)   (Replaces: 74001213)	10		Immediately	$ 17.29
4	3802F070-51		Brace, Top	10	Appelez-nous	-
5	WP4159193		Screw   (Replaces: 7118P004-60)	10			$ 4.77
5	3801F183-45		Bracket, Main Top Support	10	Appelez-nous	-
5	7111P002-60		Clamp, Wire 3/4	10	Appelez-nous	-
6	WPW10259868		Element, Surface (6``)   (Replaces: 74007157)	10		Immediately	$ 124.76
7	WPW10345410		Element, Surface (8``)   (Replaces: 74007156)	10		Immediately	$ 184.40
8	WP74003373		Knob, Switch (wht)   (Replaces: 74003373)	10			$ 18.01
9	W11690131		Lens, Indicator Light   (Replaces: 7730P012-60)	10			$ 7.48
9	W10852510		Light, Indicator   (Replaces: 7407P102-60)	10			$ 117.90
10	WP74004005		Screw   (Replaces: 7101P042-60)	10			$ 7.72
10	12001676		Receptacle Assy.	10		Immediately	$ 31.61
11	74004488		Shield, Switch Wiring	10	Appelez-nous	-
12	WP7403P239-60		Switch, Infinite (lrg Element)   (Replaces: 7403P239-60)	10		Immediately	$ 39.00
12	WP7403P238-60		Switch, Infinite (sml Element)   (Replaces: 7403P238-60)	10		Immediately	$ 64.20
12	910187		Screw	10			$ 5.83
13	74009997		Top Assembly (wht)	10	Appelez-nous	-
14	8008P014-60		Grommet, Nylon	10	Appelez-nous	-
15	5700P840-60		Cable, Conduit Assy   (Replaces: 74004486)	10	Appelez-nous	-
16	7417P004-60		Connector, Right Ang	10	Appelez-nous	-
17	74007831		Grommet, Angle Connector	10	Appelez-nous	-
17	74005433		Tubing, Conduit	10	Appelez-nous	-
