SELECT A DIAGRAM

01 - Bulkhead/felt Seal/cyl Roller & Term Blk


02 - Cabinet Top And Control Hood Rear Panel


03 - Cabinet, Exhaust Duct And Base


04 - Fr Blkhd, Air Duct, Felt Seal & Cylinder


05 - Gas Valve, Igniter & Gas Conversion Kits


06 - Graphic Panel, Control Hood And Controls


07 - Graphic Panel, Control Hood And Controls


08 - Heater Duct And Element Assy


09 - Heater Duct Replacement


10 - Loading Door


11 - Lower Access Panel, Front Panel And Seal


12 - Motor Conn Block/term Extractor Tools


13 - Motor, Exhaust Fan And Belt


14 - Power Cord


15 - Terminals


16 - Terminals

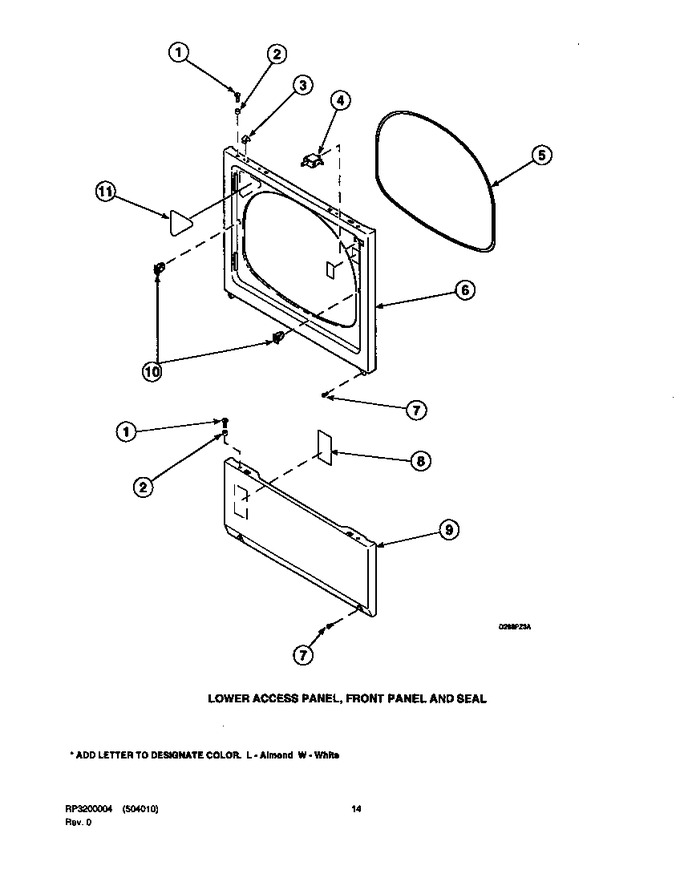

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	39733		Screw, Tapping   (Replaces: 32671)				$ 7.72
2	56079		Locater, Panel			Immediately	$ 7.72
3	WP22001650		Clip, Spring   (Replaces: 56080)			Immediately	$ 8.57
4	W10169313		Switch, Door   (Replaces: Y504570)			Immediately	$ 35.24
5	504005		Seal, Front Panel				$ 49.57
6	503656		Front Panel		Appelez-nous	-
7	285394		Screw, 10-16x.44 Uns   (Replaces: 503661)		Appelez-nous	-
9	503796		Lower Access Panel		Appelez-nous	-
10	LA-1003		Catch, Door   (Replaces: 54660)			Immediately	$ 28.59
11	500281		Sticker		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
