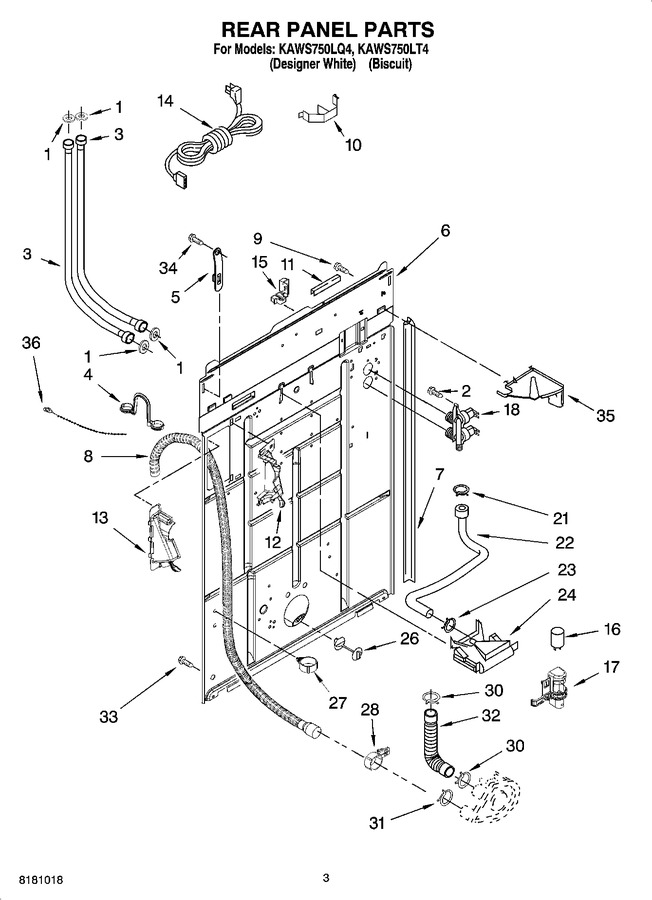

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP16123 | Washer, Water Inlet Hose (4) 1-1/16 X 5/8 (Replaces: 3976300) |
|
$ 8.16 | |||||
| 2 | WP9740848 | Screw, 8-18 X 1/2 (Replaces: 9740848) |
|
Immediately | $ 8.58 | ||||
| 3 | WP89503 | Hose, Water Inlet (red Coupler) (Replaces: 8571378) |
|
Immediately | $ 24.09 | ||||
| 3 | WP89503 | Hose, Water Inlet (blue Coupler) (Replaces: 8571377) |
|
Immediately | $ 24.09 | ||||
| 4 | WP8577378 | U-bend, Drain Hose (Replaces: 8541672) |
|
$ 8.37 | |||||
| 5 | WP8568314 | Strap, Console (2) (Replaces: 8568314) |
|
$ 8.17 | |||||
| 6 | 8318015 | Panel, Rear |
|
$ 148.59 | |||||
| 7 | WP62747 | Pad, Rear Panel (Replaces: 62747) |
|
$ 27.57 | |||||
| 8 | WPW10096921 | Drain Hose Assembly (includes Items 27 & 28) (Replaces: 8559373) |
|
Immediately | $ 67.38 | ||||
| 9 | WP3351614 | Screw, Ground (Replaces: 3351614) |
|
Immediately | $ 7.30 | ||||
| 10 | 8055003 | Clip, Harness & Pressure Hose |
|
$ 36.24 | |||||
| 11 | 303294 | Edge Protector |
|
- | |||||
| 12 | WPW10096921 | Bucket, Drain Hose (Replaces: 8541669) |
|
Immediately | $ 67.38 | ||||
| 13 | WPW10096921 | Bucket, Drain Hose (Replaces: 8541658) |
|
Immediately | $ 67.38 | ||||
| 14 | 661661 | Cord, Power (includes Item 15) |
|
$ 25.46 | |||||
| 15 | 8559349 | Strain Relief, Power Cord |
|
- | |||||
| 16 | WP8572720 | Capacitor, Motor Start (Replaces: 8572720) |
|
$ 134.20 | |||||
| 17 | 8318046 | Clip, Capacitor |
|
$ 79.31 | |||||
| 18 | 285805 | Valve, Water Mixing (Replaces: 3955673) |
|
Immediately | $ 55.08 | ||||
| 21 | WP596669 | Clamp, Hose (Replaces: 301958) |
|
Immediately | $ 8.82 | ||||
| 22 | WP3357328 | Hose, Vacuum Break (Replaces: 8541607) |
|
Immediately | $ 24.78 | ||||
| 23 | WP596669 | Clamp, Hose (Replaces: 370450) |
|
Immediately | $ 8.82 | ||||
| 24 | WP3360977 | Break, Vacuum (Replaces: 387606) |
|
Immediately | $ 50.46 | ||||
| 26 | WP8519200 | Support, Rear Panel (Replaces: 8519200) |
|
Immediately | $ 19.85 | ||||
| 27 | 8541667 | Clamp, Hose |
|
$ 5.86 | |||||
| 28 | 8541668 | Clamp, Hose |
|
$ 22.32 | |||||
| 30 | WP616099 | Clamp, Hose (Replaces: 3363366) |
|
Immediately | $ 8.58 | ||||
| 31 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 8.81 | ||||
| 32 | 285871 | Hose, Pump To Tub (includes Item 30) (Replaces: 3951449) |
|
Immediately | $ 28.99 | ||||
| 33 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 8.25 | |||||
| 34 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 35 | 8539874 | Shield, Suds |
|
$ 7.01 | |||||
| 36 | N/A | Following Parts Not Illustrated |
|
- | |||||
| 36 | 3957361 | Miscellaneous Parts Bag |
|
- | |||||
| 36 | WPW10339879 | Cable Tie (Replaces: 3347868) |
|
$ 8.30 |
