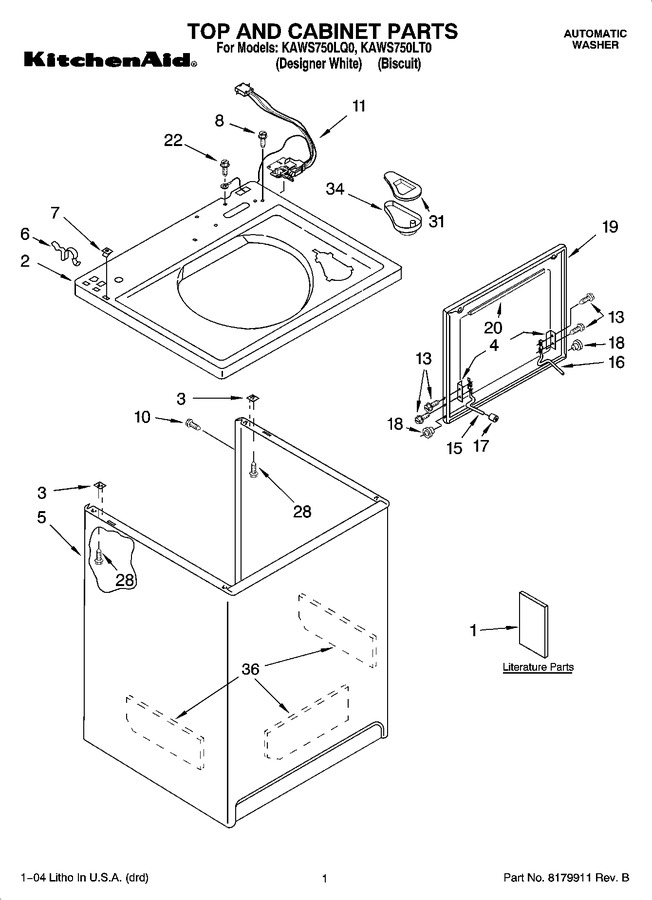

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT3955912 | Literature Parts (feature Sheet) |
|
- | |||||
| 1 | LIT3955764 | Literature Parts (wiring Diagram) |
|
- | |||||
| 1 | LIT3955576 | Energy Guide |
|
- | |||||
| 1 | LIT3955871 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT3956025 | Literature Parts (installation Instructions) |
|
- | |||||
| 2 | 3955790 | Top (biscuit) |
|
- | |||||
| 2 | 3955789 | Top (white) |
|
- | |||||
| 3 | WP62750 | Spacer, Cabinet To Top (4) (Replaces: 62750) |
|
Immediately | $ 7.69 | ||||
| 4 | WP21097 | Pad, Hinge (2) (Replaces: 21097) |
|
$ 7.80 | |||||
| 5 | 63424 | Cabinet (white) |
|
$ 370.02 | |||||
| 5 | 3954357 | Cabinet (biscuit) |
|
$ 268.04 | |||||
| 6 | WP62780 | Clip, Top & Cabinet & Rear Panel (2) (Replaces: 62780) |
|
Immediately | $ 7.80 | ||||
| 7 | WP357213 | Nut, Push-in (2) (Replaces: 357213) |
|
$ 7.39 | |||||
| 8 | 3400611 | Screw, Lid Switch (2) |
|
- | |||||
| 10 | WP308685 | Screw,10-16 X 1/2 (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 11 | WP8054980 | Switch, Lid (Replaces: 8054980) |
|
Immediately | $ 154.77 | ||||
| 13 | WPW10119828 | Screw, Lid Hinge Mounting (4) (Replaces: 355274) |
|
Immediately | $ 7.19 | ||||
| 15 | 8055257 | Hinge, Lid (l.h.) |
|
$ 6.31 | |||||
| 16 | 8055256 | Hinge, Lid (r.h.) |
|
$ 23.30 | |||||
| 17 | 19119 | Bumper, Lid Hinge |
|
$ 5.75 | |||||
| 18 | 8319539 | Bearing, Lid Hinge (2) |
|
$ 5.51 | |||||
| 19 | 3956149 | Lid (white) |
|
- | |||||
| 19 | 3956150 | Lid (biscuit) |
|
- | |||||
| 20 | 8054939 | Seal, Lid |
|
$ 50.57 | |||||
| 22 | WP3351614 | Screw, Ground (Replaces: 3351614) |
|
Immediately | $ 6.95 | ||||
| 28 | WP3390631 | Screw, 10-16 X 3/8 (4) (Replaces: 3390631) |
|
$ 7.82 | |||||
| 31 | 8055325 | Cover, Dispenser |
|
$ 20.18 | |||||
| 34 | 8519517 | Dispenser, Bleach |
|
$ 93.87 | |||||
| 36 | 3976348 | Sound-damper (cabinet) |
|
$ 37.92 |
