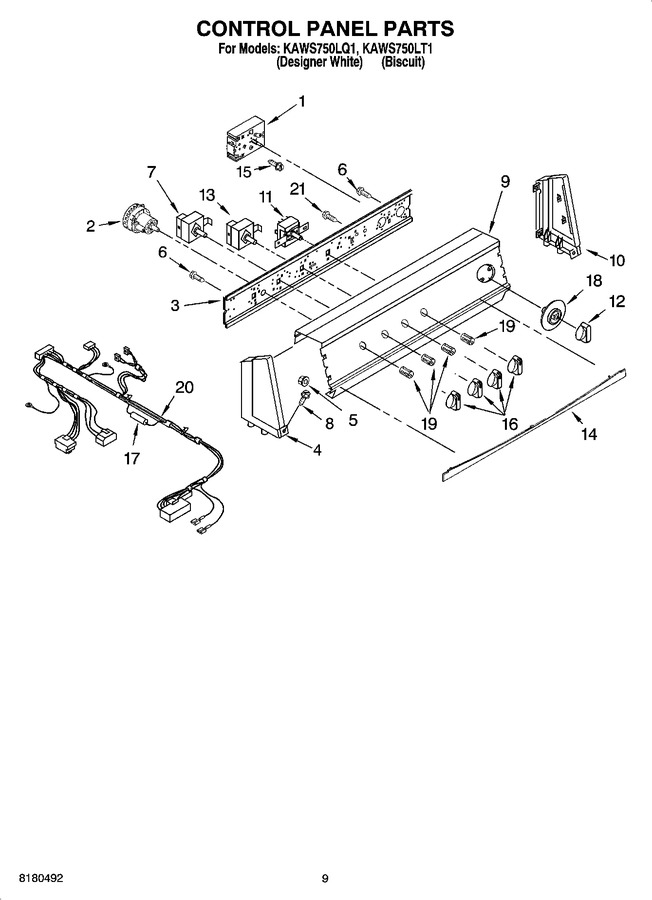

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8563594 | Timer, Control (60 Hz.) (motor Not Serviced) |
|
$ 205.60 | |||||
| 2 | W10339326 | Switch, Water Level (Replaces: 3950420) |
|
Immediately | $ 87.97 | ||||
| 3 | WP3948608 | Bracket, Control (Replaces: 3948608) |
|
$ 116.19 | |||||
| 4 | 8274353 | Cap, End (l.h.) (white) |
|
- | |||||
| 4 | 8274355 | Cap, End (l.h.) (biscuit) |
|
- | |||||
| 5 | 8533828 | Nut (2) |
|
- | |||||
| 6 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.82 | ||||
| 7 | 661614 | Switch, Water Temperature |
|
$ 56.07 | |||||
| 8 | WP388326 | Screw, 8-18 X 1.25 (Replaces: 388326) |
|
$ 8.11 | |||||
| 9 | 3956120 | Console, Panel (includes Illus. 5 & 14) (white) |
|
- | |||||
| 9 | 3956121 | Console, Panel (includes Illus. 5 & 14) (biscuit) |
|
- | |||||
| 10 | 8274351 | Cap End (r.h.) (biscuit) |
|
- | |||||
| 10 | 8274349 | Cap End (r.h.) (white) |
|
- | |||||
| 11 | 3952577 | Switch, Rotary |
|
$ 93.48 | |||||
| 12 | 3956180 | Knob, Timer (biscuit) |
|
$ 7.89 | |||||
| 12 | 3956179 | Knob, Timer (white) |
|
$ 24.41 | |||||
| 13 | WPW10168257 | Switch-rotary (Replaces: 3949180) |
|
$ 133.33 | |||||
| 14 | 8536942 | Spacer, Console (biscuit) |
|
- | |||||
| 14 | 8536941 | Spacer, Console (white) |
|
- | |||||
| 15 | WP3400818 | Screw, Timer (Replaces: 3400818) |
|
$ 7.96 | |||||
| 16 | 3956182 | Knob, Control (includes 19) (white) |
|
$ 7.41 | |||||
| 16 | 3956183 | Knob, Control (includes 19) (biscuit) |
|
- | |||||
| 17 | 8317387 | Fuse (in Harness) |
|
- | |||||
| 18 | 3956230 | Dial, Timer (white) |
|
- | |||||
| 18 | 3956231 | Dial, Timer (biscuit) |
|
- | |||||
| 19 | WP8536939 | Clip, Knob (Replaces: 8536939) |
|
Immediately | $ 7.81 | ||||
| 20 | 3957193 | Harness, Wire (for Detail See Pages 13 & 14) |
|
- | |||||
| 21 | 3400073 | Screw, Ground |
|
- |
