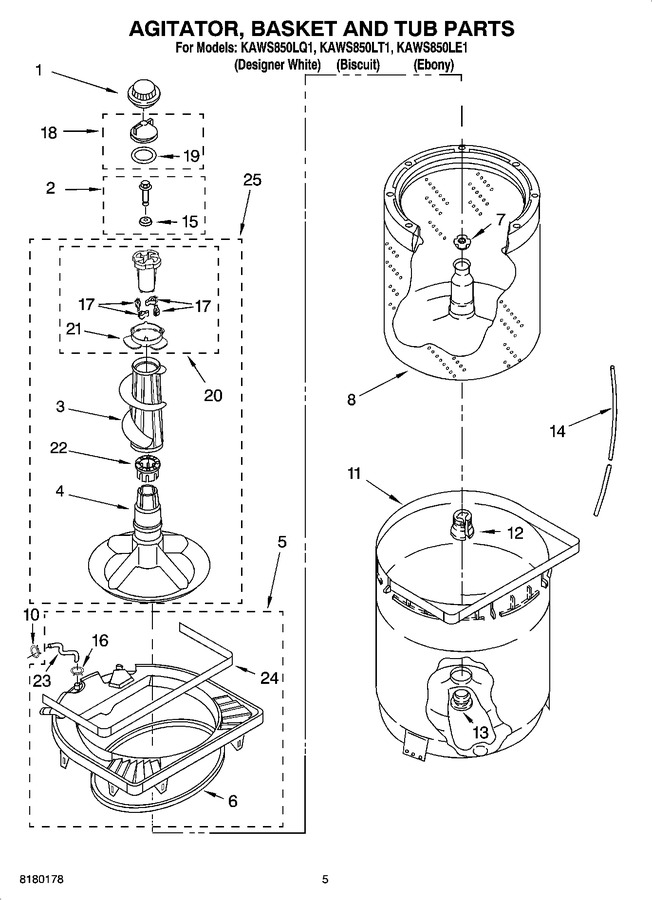

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3355758 | Cap, Agitator (Replaces: 3355758) |
|
Immediately | $ 9.00 | ||||
| 2 | WP358237 | Screw & Washer (5-16-24 X 1) (Replaces: 358237) |
|
Immediately | $ 8.86 | ||||
| 3 | 3950581 | Clothes Mover |
|
$ 14.82 | |||||
| 4 | 3950580 | Agitator |
|
- | |||||
| 5 | 8271852 | Tub Ring |
|
- | |||||
| 6 | 8054355 | Gasket, Tub Ring |
|
$ 6.92 | |||||
| 7 | WP21366 | Nut, Spanner (Replaces: 21366) |
|
Immediately | $ 11.56 | ||||
| 8 | W10389328 | Basket & Balance Ring (Replaces: 3951983) |
|
$ 424.81 | |||||
| 10 | WP596669 | Clamp, Hose (Replaces: 3955674) |
|
Immediately | $ 8.82 | ||||
| 11 | 8055061 | Tub |
|
$ 60.27 | |||||
| 12 | WP389140 | Block, Basket Drive (Replaces: 389140) |
|
Immediately | $ 27.49 | ||||
| 13 | W10814296 | Gasket, Center Post (Replaces: 383727) |
|
Immediately | $ 9.98 | ||||
| 14 | WP353244 | Hose, Pressure Switch (Replaces: 3347780) |
|
Immediately | $ 59.93 | ||||
| 15 | WP3949550 | Washer (Replaces: 3949550) |
|
Immediately | $ 11.09 | ||||
| 16 | WP596669 | Clamp, Hose (Replaces: 301958) |
|
Immediately | $ 8.82 | ||||
| 17 | 80040 | Dog, Agitator Clutch (4) (Replaces: 3366877) |
|
Immediately | $ 3.64 | ||||
| 18 | WPW10074580 | Cap, Barrier (Replaces: 3354733) |
|
Immediately | $ 13.02 | ||||
| 19 | WPW10072840 | Seal, Inner Auger (Replaces: 3348855) |
|
Immediately | $ 8.72 | ||||
| 20 | 285811 | Cam Driven (Replaces: 3363663) |
|
Immediately | $ 32.59 | ||||
| 21 | WP3363661 | Bearing, Driven Cam (Replaces: 3363661) |
|
$ 8.23 | |||||
| 22 | 285587 | Spacer, Thrust (Replaces: 3350389) |
|
Immediately | $ 4.42 | ||||
| 23 | 8526793 | Hose, Bleach Outlet |
|
$ 20.50 | |||||
| 24 | 8054357 | Shield, Splash |
|
- | |||||
| 25 | 3950579 | Agitator (complete) |
|
$ 125.01 |
