SELECT A DIAGRAM

01 - Top And Cabinet Parts

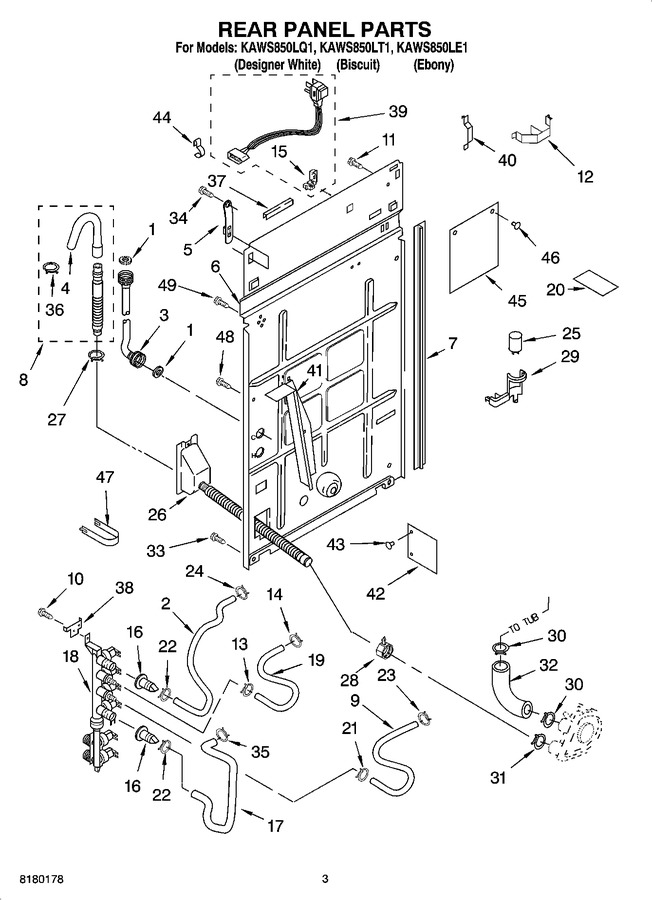

02 - Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Control Panel Parts


07 - Water System Parts


08 - Gearcase Parts


09 - Brake And Drive Tube Parts


10 - Wiring Harness Parts


11 - Miscellaneous Parts Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP16123		Washer, Water Inlet Hose (4) 1-1/16 X 5/8   (Replaces: 3976300)				$ 8.16
2	8271984		Hose, Bleach				$ 8.09
3	WP89503		Hose, Water Inlet ((red Coupler))   (Replaces: 3949375)			Immediately	$ 24.09
3	WP89503		Hose, Water Inlet ((blue Coupler))   (Replaces: 3949374)			Immediately	$ 24.09
4	WP3357027		Nozzle-drain Hose   (Replaces: 3357027)				$ 97.86
5	WP8568314		Strap, Console (2)   (Replaces: 8318255)				$ 8.17
6	8282493		Panel, Rear		Appelez-nous	-
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 27.57
8	285666		Hose, Drain (9 Ft.) (not Included)   (Replaces: 661577)			Immediately	$ 62.34
8	285664		Hose, Drain (4 Ft.)   (Replaces: 3951609)			Immediately	$ 36.89
8	285702		Extension, Drain Hose (21 Inches) (not Included)   (Replaces: 3357090)			Immediately	$ 63.94
9	8271982		Hose, Detergent				$ 8.45
10	WP9740848		Screw, 8-18 X 1/2   (Replaces: 8318499)			Immediately	$ 8.58
11	WP3351614		Screw, Ground   (Replaces: 3351614)			Immediately	$ 7.30
12	8055003		Clip, Harness & Pressure Hose				$ 36.24
13	WP596669		Clamp, Hose   (Replaces: 8318491)			Immediately	$ 8.82
14	WP596669		Clamp, Hose   (Replaces: 8318495)			Immediately	$ 8.82
15	3952821		Strain Relief, Power Cord		Appelez-nous	-
16	8055306		Check Valve, Duck Bill				$ 13.67
17	8318496		Hose, Fresh Fill		Appelez-nous	-
18	8542063		Valve, Inlet		Appelez-nous	-
19	8271983		Hose, Fabric Softener				$ 8.25
20	3976286		Shield, Capacitor		Appelez-nous	-
21	WP596669		Clamp, Hose   (Replaces: 8318490)			Immediately	$ 8.82
22	WP596669		Clamp, Hose   (Replaces: 8318493)			Immediately	$ 8.82
23	WP596669		Clamp, Hose   (Replaces: 8318492)			Immediately	$ 8.82
24	WP596669		Clamp, Hose   (Replaces: 8318494)			Immediately	$ 8.82
25	WP8572720		Capacitor, Motor Start   (Replaces: 3949170)				$ 134.20
26	WPW10358151		Drain Hose Assembly   (Replaces: 8317959)				$ 111.23
27	WP356138		Clamp, Hose   (Replaces: 3366912)			Immediately	$ 8.52
28	3976395		Clamp, Hose				$ 11.96
29	8318201		Clip, Capacitor		Appelez-nous	-
30	WP616099		Clamp, Hose   (Replaces: 371504)			Immediately	$ 8.58
31	WP285655		Clamp, Hose   (Replaces: 8317496)			Immediately	$ 8.81
32	8055063		Hose, Pump To Tub		Appelez-nous	-
33	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 8.25
34	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 8.25
35	WP285655		Clamp, Hose   (Replaces: 8318497)			Immediately	$ 8.81
36	WP3357331		Clamp, Drain Hose   (Replaces: 3366913)				$ 8.19
37	303294		Edge Protector		Appelez-nous	-
38	8271909		Bracket, Valve		Appelez-nous	-
39	661661		Cord, Power				$ 25.46
40	8054658		Clip, Harness		Appelez-nous	-
41	8280536		Shield, Upper Valve (incl. 42 & 43)		Appelez-nous	-
42	8272150		Shield, Splash Valve		Appelez-nous	-
43	WP356907		Rivet, Plastic   (Replaces: 356907)				$ 7.77
44	8528351		Clip, Harness   (Replaces: 3347812)		Appelez-nous	-
45	8282565		Drape, Rear Panel		Appelez-nous	-
46	8282566		Clip, Drape				$ 12.83
47	8272128		Restraint, Hose		Appelez-nous	-
48	WP693995		Screw 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.55
49	WP9740848		Screw, 8-18 X 1/2   (Replaces: 9740848)			Immediately	$ 8.58

    View Diagram in Separate Window       Print Part List
