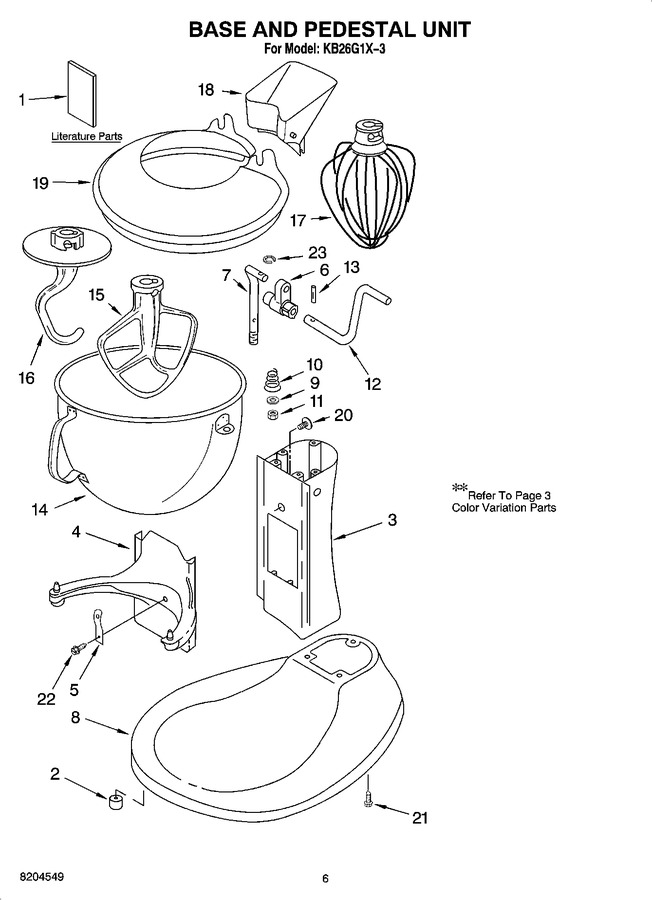

03 - Base, Pedestal Unit And Accessory Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8204549 | Literature Parts (repair Parts List) |
|
- | |||||
| 1 | LIT9707946 | Literature Parts (use & Care Guide) |
|
- | |||||
| 2 | 8211628 | Foot, Rubber (5) (Replaces: 9703414) |
|
$ 7.71 | |||||
| 5 | WPW10504114 | Latch, Bowl Spring (Replaces: 9703474) |
|
Immediately | $ 5.14 | ||||
| 6 | WP9706885 | Arm, Bowl Lift (Replaces: 9706885) |
|
Immediately | $ 5.17 | ||||
| 7 | W11775238 | Rod, Bowl Lift (Replaces: 9706787) |
|
$ 5.73 | |||||
| 9 | W11708395 | Washer (Replaces: 9703439) |
|
$ 4.47 | |||||
| 10 | 4159622 | Spring (Replaces: 9237) |
|
Immediately | $ 4.70 | ||||
| 11 | 8533907 | Nut (Replaces: 4159092) |
|
$ 24.83 | |||||
| 12 | W11778321 | Handle, Bowl Lift (Replaces: 9706788) |
|
$ 24.01 | |||||
| 13 | WP9703442 | Roll Pin (Replaces: 9703442) |
|
$ 4.28 | |||||
| 14 | W11770849 | Bowl (6 Qt) (Replaces: 9703687) |
|
Immediately | $ 91.11 | ||||
| 15 | WPW10672616 | Beater, Flat (Replaces: 9707674) |
|
Immediately | $ 29.21 | ||||
| 16 | WPW10674620 | Dough Hook (Replaces: 9707676) |
|
Immediately | $ 25.18 | ||||
| 17 | WP9703491 | Wire Whip (Replaces: 9703491) |
|
Immediately | $ 43.13 | ||||
| 18 | WPW10617049 | Pouring Spout (Replaces: 9703534) |
|
$ 63.02 | |||||
| 19 | WPW10617049 | Pouring Shield (Replaces: 9703533) |
|
$ 63.02 | |||||
| 20 | W11721849 | Cam, Adjusting (Replaces: 9703426) |
|
$ 6.08 | |||||
| 21 | W10913677 | Screw (3) 1/4 - 20 X 3/4 (Replaces: 3400200) |
|
$ 4.64 | |||||
| 22 | W10861883 | Screw, 10-24 X 1/2 (Replaces: 3400018) |
|
Immediately | $ 4.94 | ||||
| 23 | W11200218 | Grease, Planetary (Replaces: 4160588) |
|
Immediately | $ 86.08 | ||||
| 23 | RVSA | Rotor Slicer/shredder (with 4 Standard Cones) Fine Shredder, Coarse Shredder, Thick Slicer, And Thin (Replaces: 4164750) |
|
$ 115.50 | |||||
| 23 | 4164824 | Pasta Maker Plates Snpa |
|
- | |||||
| 23 | 4164774 | Fruit/vegetable Strainer And Food Grinder, Fvs/fga |
|
- | |||||
| 23 | 4162838 | Food Tray (ft) |
|
- | |||||
| 23 | 4164748 | Juicer, Je |
|
- | |||||
| 23 | 4164747 | Can Opener, Co |
|
- | |||||
| 23 | 4164803 | Sausage Stuffer, Kit, Ssa |
|
- | |||||
| 23 | WP9703307 | Clip Refer To Page 3 Color Variation Parts (Replaces: 9703307) |
|
Immediately | $ 4.42 | ||||
| 23 | 4164778 | Mixer Attachment Pak (includes Food Grinder (fg-a), Food Strainer (fvsp), And Vegetable Slicer, (rvs |
|
- | |||||
| 23 | 4164749 | Food Grinder (fg-a) |
|
- | |||||
| 23 | 4164751 | Grain Mill (gm-a) |
|
- | |||||
| 23 | 4164768 | Pasta Maker And Food Grinder (includes Snp Pasta Maker Plates) (sn/fg-a) |
|
- | |||||
| 23 | FVSP | Fruit/vegetable Strainer Parts (use With Fg-a Model Only) (fvsp) (Replaces: 4164775) |
|
$ 117.81 |
