SELECT A DIAGRAM

01 - Cabinet Parts

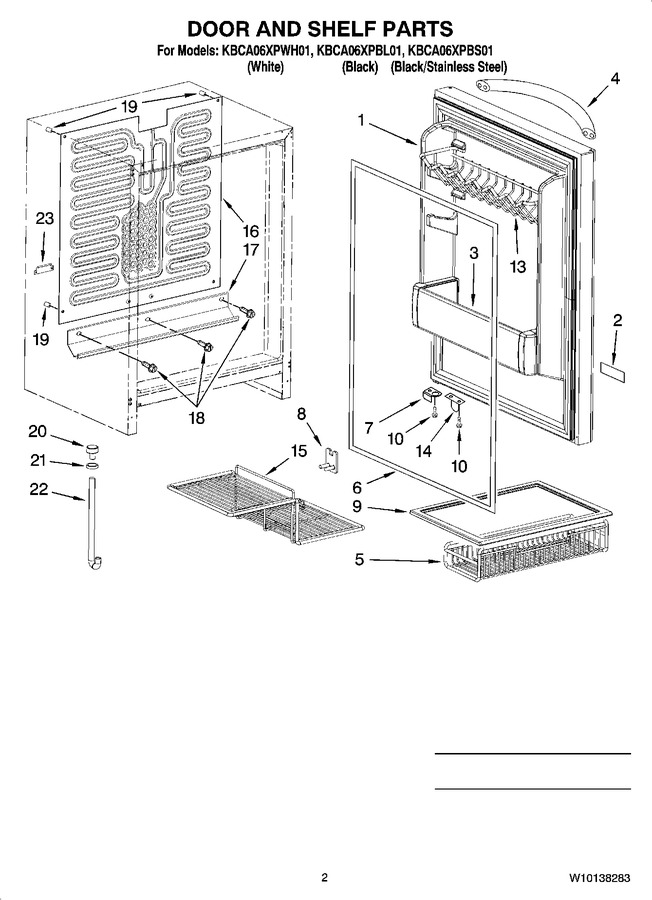

02 - Door And Shelf Parts


03 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4344704		Door Assembly (includes Gasket And Handle) (white)		Appelez-nous	-
1	4344706		Door Assembly (includes Gasket And Handle) (black)		Appelez-nous	-
1	4344707		Door Assembly (includes Gasket And Handle) (stainless Steel)		Appelez-nous	-
2	2217214W		Nameplate (white)		Appelez-nous	-
2	2217214B		Nameplate (black)		Appelez-nous	-
3	W10323599		Bin, Door   (Replaces: 2222773)				$ 146.61
4	8524416		Handle, Door (white)		Appelez-nous	-
4	8524415		Handle, Door (stainless Steel)		Appelez-nous	-
4	8524418		Handle, Door (black)		Appelez-nous	-
5	4344713		Basket, Crisper		Appelez-nous	-
6	4344685		Gasket, Door (white)		Appelez-nous	-
6	4344705		Gasket, Door (grey)		Appelez-nous	-
6	4344696		Gasket, Door (black)		Appelez-nous	-
7	4344712		Plate, Pivot (black)		Appelez-nous	-
7	4344711		Plate, Pivot (white)		Appelez-nous	-
8	4344714		Retainer, Shelf		Appelez-nous	-
9	4344715		Shelf, Crisper		Appelez-nous	-
10	WP8281227		Screw   (Replaces: 4344710)				$ 10.96
13	4344708		Rack, Can		Appelez-nous	-
14	4344709		Bracket, Door Switch		Appelez-nous	-
15	4344716		Shelf, Wire		Appelez-nous	-
16	4344717		Evaporator		Appelez-nous	-
17	4344718		Channel		Appelez-nous	-
18	4344719		Rivet, Plastic		Appelez-nous	-
19	4344720		Spacer		Appelez-nous	-
20	4344611		Funnel, Drain		Appelez-nous	-
21	4344722		Washer, Foam		Appelez-nous	-
22	4344723		Tube, Drain		Appelez-nous	-
23	8171420		Cleaner, Stainless Steel (12 Oz.)		Appelez-nous	-
23	4344724		Clamp		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
