SELECT A DIAGRAM

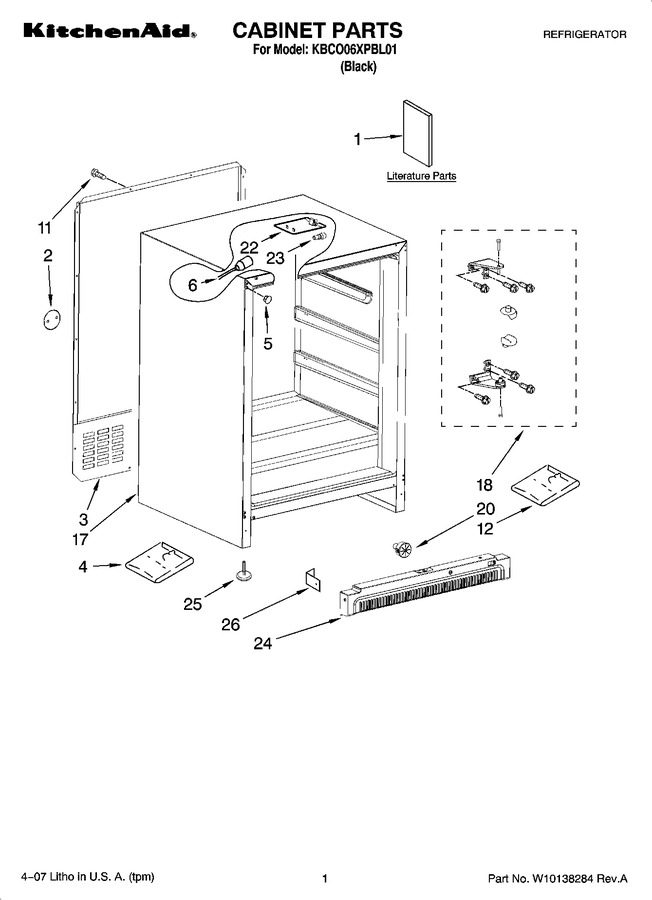

01 - Cabinet Parts


02 - Door And Shelf Parts


03 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2300260		Use & Care Guide		Appelez-nous	-
1	4344738		Wiring Diagram		Appelez-nous	-
1	4344666		Energy Guide		Appelez-nous	-
2	4344664		Cover, Back Panel		Appelez-nous	-
3	4344662		Panel, Back		Appelez-nous	-
4	4344736		Kit, Hinges (custom Wood Door)		Appelez-nous	-
5	4344702		Plug, Hole (6)		Appelez-nous	-
6	4344678		Socket, Light		Appelez-nous	-
11	WP8281196		Screw   (Replaces: 4344663)			Immediately	$ 7.55
12	4344737		Kit, Spacers (custom Wood Door)		Appelez-nous	-
18	4344727		Hinge Assembly (top & Bottom)		Appelez-nous	-
20	4344672		Knob, Control		Appelez-nous	-
22	4344667		Lens, Light		Appelez-nous	-
23	WP22002263		Light Bulb   (Replaces: 4344602)			Immediately	$ 14.85
24	4344670		Grille		Appelez-nous	-
25	4344635		Foot, Leveling (4)		Appelez-nous	-
26	4344673		Clip, Grille		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
