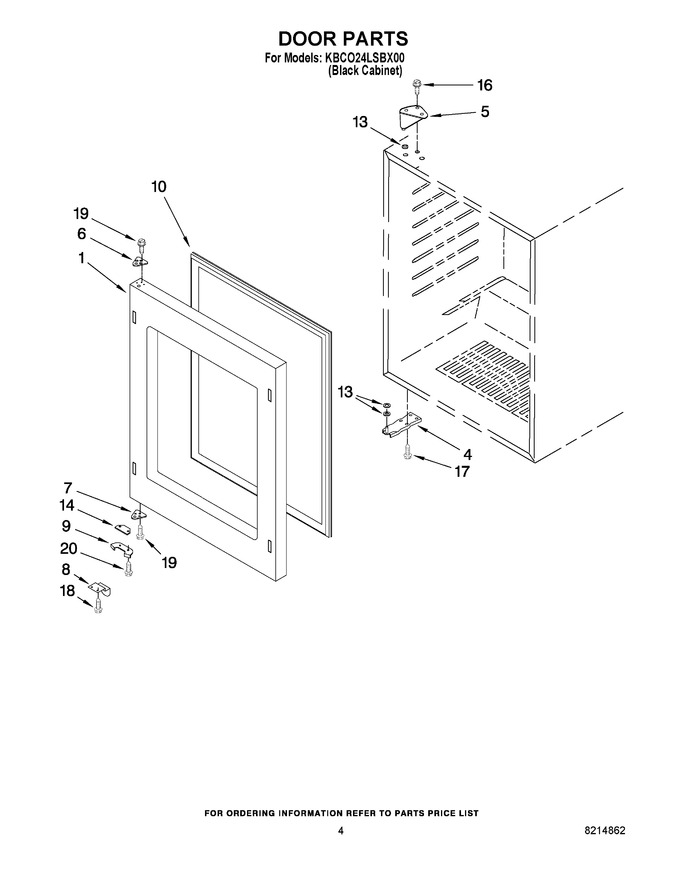

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4344891		Door Assembly (includes Gasket)		Appelez-nous	-
4	4344787		Hinge, Bottom				$ 217.36
5	4344754		Hinge, Top				$ 89.01
6	4344804		Spacer, Top Hinge				$ 20.03
7	4344798		Spacer, Bottom Hinge				$ 20.03
8	4344757		Actuator, Switch				$ 154.08
9	4344802		Door Stop				$ 21.98
10	WPW10238068		Door Gasket   (Replaces: 4344852)				$ 347.01
13	4344760		Washer				$ 15.91
14	4344803		Spacer, Door				$ 175.49
16	4344796		Screw				$ 16.82
17	4344797		Screw, Lower Hinge (quantity 3)		Appelez-nous	-
17	4344906		Screw, Lower Hinge (quantity 1)		Appelez-nous	-
18	4344827		Screw		Appelez-nous	-
19	4344800		Screw		Appelez-nous	-
20	4344801		Screw				$ 16.82
NI	4344818		Installation Kit, Door Panel				$ 129.52
