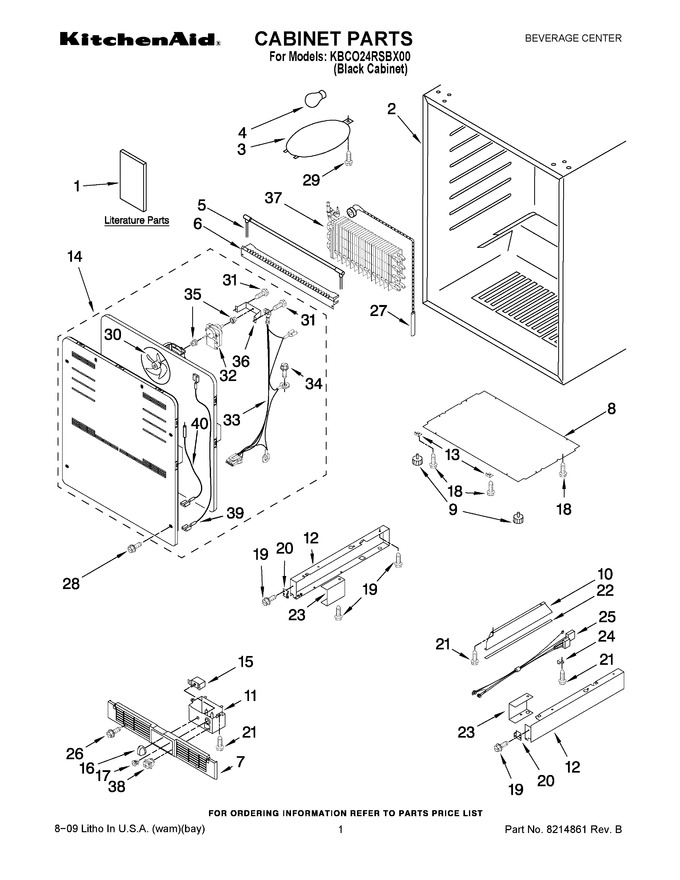

01 - Cabinet Parts
02 - Shelf Parts
03 - Door Parts
04 - Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4344901 | Wiring Diagram |
|
- | |||||
| 1 | 2300277 | Use & Care Guide |
|
- | |||||
| 2 | N/P | Cabinet (not A Service Part) |
|
- | |||||
| 3 | 4344739 | Lens, Light |
|
- | |||||
| 4 | WP22002263 | Bulb, Light (Replaces: 4344740) |
|
Immediately | $ 14.85 | ||||
| 5 | W11230119 | Heater, Defrost (Replaces: 4344746) |
|
$ 145.69 | |||||
| 6 | 4344747 | Heat Shield |
|
$ 78.49 | |||||
| 7 | 4344761 | Grille |
|
- | |||||
| 8 | 4344762 | Plate, Bottom |
|
- | |||||
| 9 | W11106296 | Foot, Leveling (Replaces: 4344763) |
|
$ 19.03 | |||||
| 10 | 4344764 | Brace, Support |
|
- | |||||
| 11 | 4344898 | Control Box |
|
$ 84.83 | |||||
| 12 | 4344770 | Frame, Side (right Side) |
|
- | |||||
| 12 | 4344769 | Frame, Side (left Side) |
|
- | |||||
| 13 | 4344771 | Bracket, Grille |
|
$ 104.76 | |||||
| 14 | 4344841 | Evaporator Fan Assembly |
|
- | |||||
| 15 | W11211930 | Thermostat (Replaces: 4344860) |
|
Immediately | $ 245.44 | ||||
| 16 | WP3402573 | Knob, Thermostat (Replaces: 4344768) |
|
$ 106.51 | |||||
| 17 | WP4344767 | Switch, Plunger (Replaces: 4344767) |
|
$ 59.62 | |||||
| 18 | 4344826 | Screw |
|
$ 16.70 | |||||
| 19 | 4344797 | Screw |
|
- | |||||
| 20 | 4344819 | Clip, Grille |
|
- | |||||
| 21 | 4344825 | Screw |
|
- | |||||
| 22 | 4344823 | Seal |
|
$ 101.83 | |||||
| 23 | 4344820 | Frame, Support (left) |
|
- | |||||
| 23 | 4344821 | Frame, Support (right) |
|
- | |||||
| 24 | W11456069 | Clip, Harness (Replaces: 4344824) |
|
Immediately | $ 22.40 | ||||
| 25 | 4344857 | Harness, Wire |
|
- | |||||
| 26 | 4344827 | Screw |
|
- | |||||
| 27 | 4344792 | Thermal Fuse |
|
$ 119.25 | |||||
| 28 | 4344793 | Screw |
|
- | |||||
| 29 | 4344791 | Screw |
|
- | |||||
| 30 | 4344783 | Fan Blade |
|
- | |||||
| 31 | 4344878 | Screw |
|
- | |||||
| 32 | 4344865 | Evaporator Fan Motor |
|
- | |||||
| 33 | 4344877 | Harness, Wire |
|
- | |||||
| 34 | 4344832 | Screw, Ground |
|
- | |||||
| 35 | 4344778 | Grommet, Fan Motor |
|
- | |||||
| 36 | 4344899 | Bracket, Motor |
|
- | |||||
| 37 | N/P | Evaporator (not Serviced) |
|
- | |||||
| 38 | 4344858 | Switch, Light |
|
$ 110.66 | |||||
| 39 | 4344917 | Transformer Cable |
|
- | |||||
| 40 | 4344918 | Temperature Sensor |
|
$ 82.18 |
