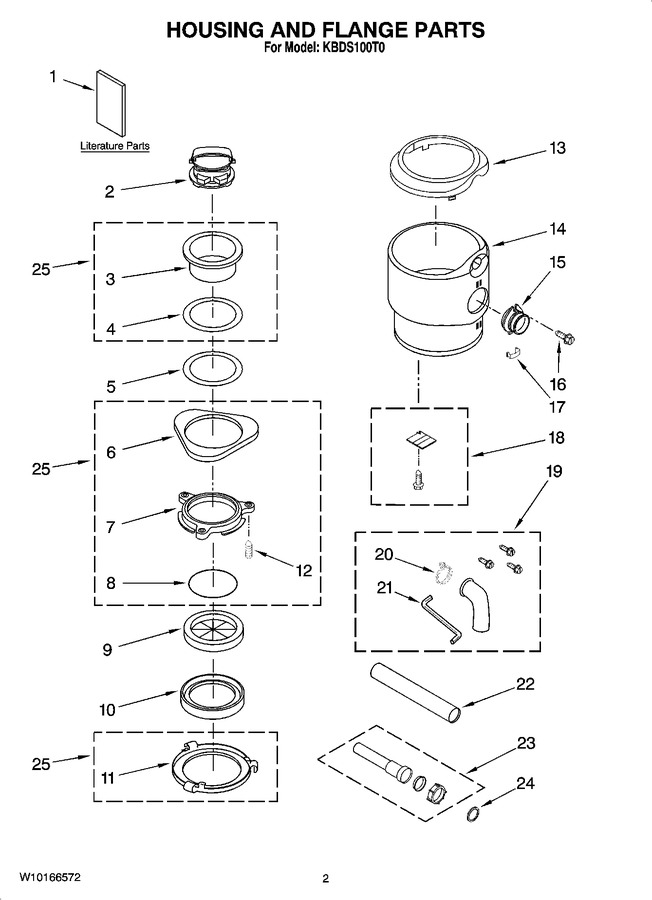

01 - Housing And Flange Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10171476 | Guide, Use & Care |
|
- | |||||
| 1 | W10166572 | Repair Parts List |
|
- | |||||
| 2 | W10171477A | Stopper Assembly (Replaces: W10171477) |
|
Immediately | $ 84.98 | ||||
| 3 | W10171101 | Flange, Sink |
|
- | |||||
| 4 | 4211606 | Gasket, Fiber |
|
$ 22.21 | |||||
| 5 | WP4211302 | Seal, Sink Flange (Replaces: 4211302) |
|
$ 8.58 | |||||
| 6 | W10171102 | Flange, Backup |
|
- | |||||
| 7 | 4211304 | Flange, Mounting |
|
$ 137.21 | |||||
| 8 | 4211306 | Ring, Snap |
|
$ 10.56 | |||||
| 9 | W10171478 | Baffle, Sink Guard |
|
- | |||||
| 10 | W10171105 | Gasket, Mounting |
|
$ 47.57 | |||||
| 11 | 4211308 | Flange, Body |
|
- | |||||
| 12 | W10171103 | Screw, Backup |
|
$ 6.47 | |||||
| 13 | W10171483 | Trim, Shell (cap) |
|
- | |||||
| 14 | W10171484 | Shell, Trim |
|
- | |||||
| 15 | W10352995 | Coupler, Flex (Replaces: W10171109) |
|
$ 93.25 | |||||
| 16 | W10171108 | Screw |
|
- | |||||
| 17 | 8174342 | Clip |
|
- | |||||
| 18 | 8174315 | Cover, Terminal |
|
- | |||||
| 19 | W10171110A | Installation Kit (Replaces: W10171110) |
|
$ 35.15 | |||||
| 20 | W11622908 | Clamp, Spring (Replaces: W10171111) |
|
$ 23.33 | |||||
| 21 | WP8174310 | Wrench (Replaces: 8174310) |
|
$ 22.35 | |||||
| 22 | W10171112 | Tube, Discharge |
|
$ 35.75 | |||||
| 23 | W10171480 | Tube, Extension Assembly |
|
$ 85.17 | |||||
| 24 | W10171481 | Flange, Backup |
|
$ 140.05 | |||||
| 25 | W10179031A | Mounting Assembly (Replaces: W10179031) |
|
$ 86.00 | |||||
| W10175941 | Flange, Extended |
|
$ 92.26 | ||||||
| W11735293 | Disposer, Complete (Replaces: W10168269) |
|
Immediately | $ 930.20 |
