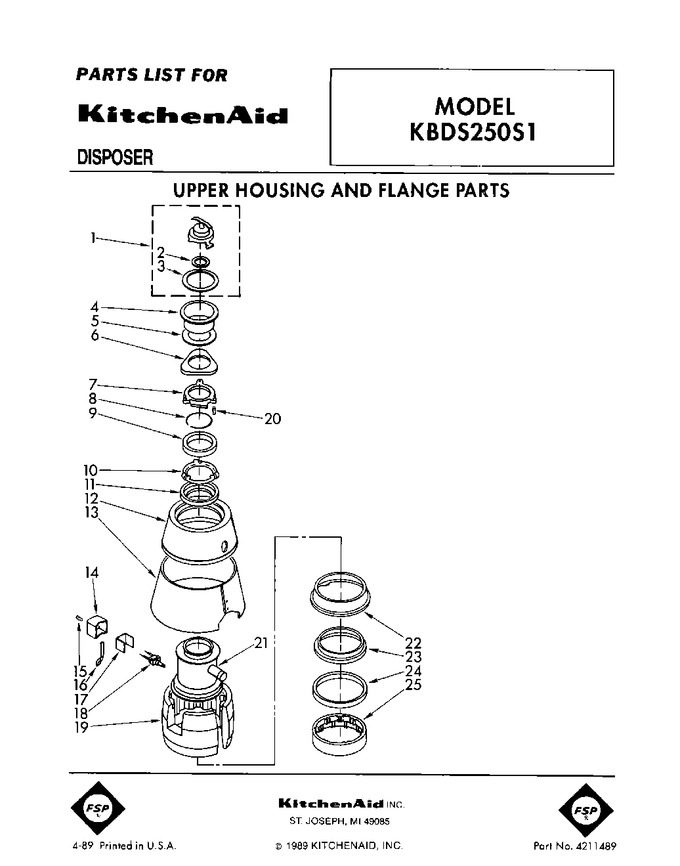

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4211409		Lock Stopper Assembly		Appelez-nous	-
2	4211355		Gasket, Stopper (inner)			Immediately	$ 7.17
3	4211410		Gasket, Stopper (outer)		Appelez-nous	-
4	4211301		Flange, Strainer				$ 81.01
5	WP4211302		Gasket, Strainer   (Replaces: 4211302)				$ 8.58
6	4211303		Flange, Backup		Appelez-nous	-
7	4211304		Flange, Mounting				$ 137.21
8	4211306		Ring, Retaining				$ 10.56
9	4211411		Gasket, Mounting				$ 16.16
10	4211308		Flange, Body		Appelez-nous	-
11	4211359		Gasket, Body		Appelez-nous	-
12	4211443		Shell Assembly, Trim (top)		Appelez-nous	-
13	4211413		Band Assembly, Trim		Appelez-nous	-
14	4211417		Cover, Switch		Appelez-nous	-
15	4211418		Screw, Tapping (switch Cover)		Appelez-nous	-
16	4211419		Bracket, Wire Cover		Appelez-nous	-
17	4211416		Insulation, Switch Cover		Appelez-nous	-
18	4211415		Switch, Pushbutton		Appelez-nous	-
19	4211420		Insulation, Top		Appelez-nous	-
20	4211305		Screw, Backup (3)				$ 14.11
21	4211414		Container, Body Assembly (includes Sound Insulation)		Appelez-nous	-
22	4211421		Body, Lower		Appelez-nous	-
23	4211365		Gasket, Shredder		Appelez-nous	-
24	4211366		Insulation, Sound		Appelez-nous	-
25	4211367		Shredder, Stationary		Appelez-nous	-
	LIT4211451		Guide, Use And Care		Appelez-nous	-
	LIT4211489		Repair Parts List		Appelez-nous	-
	LIT4211452		Instructions, Installation		Appelez-nous	-
