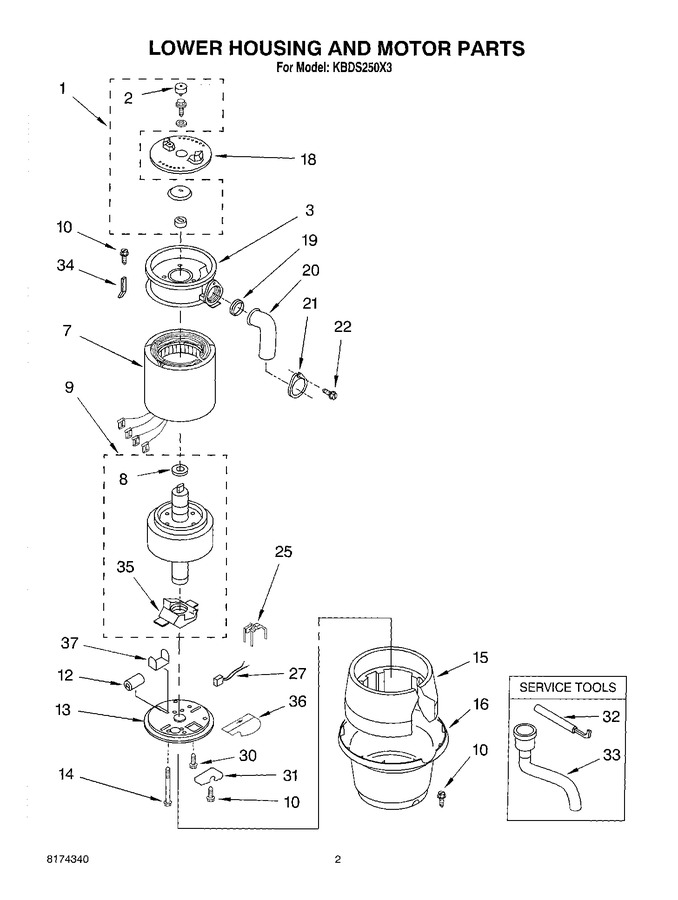

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4211578		Kit, Sleeve And Seal (includes Plug, Bolt, Washer, Slinger And Sleeve)				$ 124.78
2	4211578		Plug   (Replaces: 4211341)				$ 124.78
3	4211492		End Bell Assembly, Upper				$ 164.46
7	4211375		Stator Assembly		Appelez-nous	-
8	4211321		Washer		Appelez-nous	-
9	4211632		Shaft Assembly (includes 8 & 35)		Appelez-nous	-
10	WP98008545		Screw (4)   (Replaces: 4211612)				$ 18.60
12	4211385		Capacitor		Appelez-nous	-
13	4211635		End Frame, Assembly (lower)		Appelez-nous	-
14	4211348		Bolt, Thru (2)		Appelez-nous	-
15	4211393		Insulation, Bottom		Appelez-nous	-
16	8174321		Trim, Shell Assembly		Appelez-nous	-
18	4211631		Shredder Assembly, Rotating				$ 133.32
19	4211344		Gasket, Tailpipe				$ 5.83
20	4211317		Tailpipe   (Replaces: 4211370)				$ 82.65
21	4211345		Flange, Tailpipe				$ 6.40
22	WP8204624		Screw, Tailpipe   (Replaces: 4211346)				$ 17.48
25	4211633		Switch Assembly, Start & Reverse				$ 136.86
27	8174298		Overload, Protector				$ 17.26
30	4211330		Screw, Ground		Appelez-nous	-
31	4211611		Cover, Terminal		Appelez-nous	-
32	WP8174310		Wrench Holder Assembly   (Replaces: 4211435)				$ 22.35
33	4211396		Adapter, Sink		Appelez-nous	-
34	4211422		Shield, Wire Cover		Appelez-nous	-
35	4211322		Actuator Switch Centrifugal				$ 103.67
36	4211326		Shield, Wire		Appelez-nous	-
37	8174299		Clip, Capacitor		Appelez-nous	-
