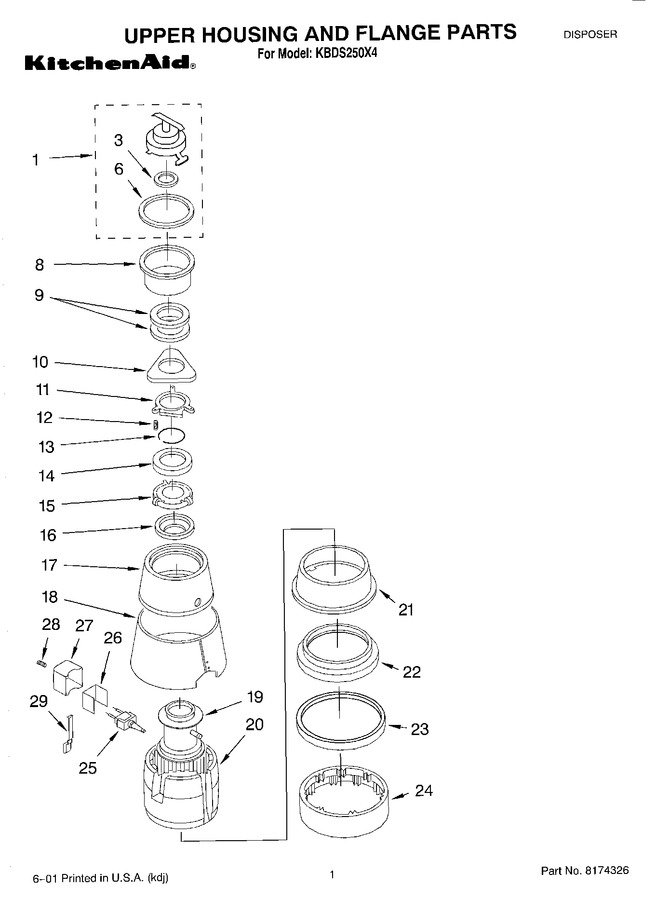

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4211409		Stopper Assembly		Appelez-nous	-
3	4211355		Gasket, Stopper (inner)			Immediately	$ 7.17
6	4211410		Gasket, Stopper (outer)		Appelez-nous	-
8	4211301		Flange, Strainer   (Replaces: 4211553)				$ 81.01
9	WP4211302		Gasket, Sink Flange (2)   (Replaces: 4211302)				$ 8.58
10	4211303		Flange, Backup		Appelez-nous	-
11	4211304		Flange, Mounting				$ 137.21
12	4211305		Screw, Backup (3)				$ 14.11
13	4211306		Ring, Retaining				$ 10.56
14	4211411		Gasket, Mounting				$ 16.16
15	4211308		Flange, Body		Appelez-nous	-
16	4211359		Gasket, Body		Appelez-nous	-
17	4211443		Shell Assembly, Trim (top)		Appelez-nous	-
18	4211413		Band, Trim Assembly		Appelez-nous	-
19	8174295		Container, Body Assembly (includes Sound Insulation)				$ 278.20
20	8174296		Insulation, Top		Appelez-nous	-
21	8174297		Body, Lower		Appelez-nous	-
22	4211365		Gasket, Shredder		Appelez-nous	-
23	4211366		Insulation, Sound		Appelez-nous	-
24	4211630		Shredder, Stationary		Appelez-nous	-
25	8174292		Switch, Pushbutton				$ 116.11
26	4211416		Insulation, Switch Cover		Appelez-nous	-
27	4211417		Cover, Switch		Appelez-nous	-
28	4211418		Screw, Tapping		Appelez-nous	-
29	4211419		Bracket, Wire Cover		Appelez-nous	-
	LIT4211563		Guide, Use And Care		Appelez-nous	-
	LIT4211562		Instructions, Installation (english)		Appelez-nous	-
