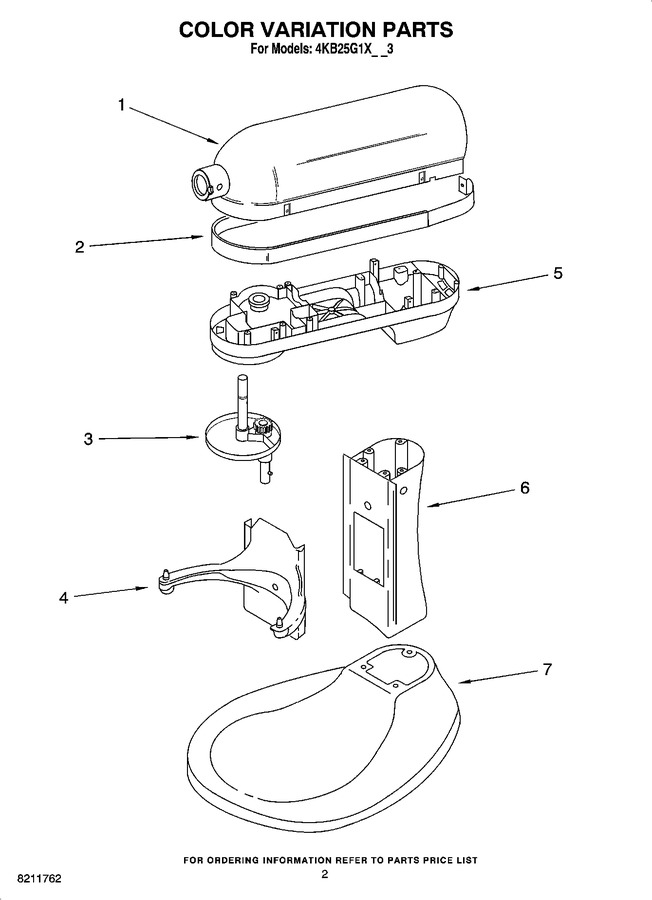

01 - Color Variation Parts
02 - Case, Gearing And Planetary Unit
03 - Base And Pedestal Unit And Accessory Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9703311 | Motor Housing (white) |
|
$ 88.20 | |||||
| 1 | 9705380 | Motor Housing (cobalt Blue) |
|
- | |||||
| 1 | 9705300 | Motor Housing (empire Red) |
|
$ 88.20 | |||||
| 1 | 9708063 | Motor Housing (tangerine) |
|
- | |||||
| 1 | 9705296 | Motor Housing (onyx Black) |
|
$ 88.20 | |||||
| 2 | 9708420 | Trim Band (grey/white) |
|
- | |||||
| 2 | 9708418 | Trim Band (black/silver) |
|
- | |||||
| 3 | WP9708172 | Planetary (white) (Replaces: 9708172) |
|
Immediately | $ 73.84 | ||||
| 3 | 9708189 | Planetary (tangerine) |
|
$ 83.93 | |||||
| 3 | WP9708176 | Planetary (onyx Black) (Replaces: 9708176) |
|
Immediately | $ 73.38 | ||||
| 3 | 9708182 | Planetary (cobalt Blue) |
|
$ 65.90 | |||||
| 3 | WP9708180 | Planetary (empire Red) (Replaces: 9708180) |
|
Immediately | $ 71.94 | ||||
| 4 | 9703674 | Bowl Support & Pin (white) |
|
$ 74.91 | |||||
| 4 | 9705390 | Bowl Support & Pin (cobalt Blue) |
|
- | |||||
| 4 | 9705360 | Bowl Support & Pin (empire Red) |
|
- | |||||
| 4 | 9708074 | Bowl Support & Pin (tangerine) |
|
- | |||||
| 4 | 9705356 | Bowl Support & Pin (onyx Black) |
|
- | |||||
| 5 | 9706047 | Lower Gearcase (white) |
|
$ 41.51 | |||||
| 5 | 9706341 | Lower Gearcase (cobalt Blue) |
|
- | |||||
| 5 | 9706331 | Lower Gearcase (empire Red) |
|
$ 92.72 | |||||
| 5 | 9708070 | Lower Gearcase (tangerine) |
|
- | |||||
| 5 | 9706311 | Lower Gearcase (onyx Black) |
|
$ 92.72 | |||||
| 6 | 9703673 | Column-white |
|
$ 81.26 | |||||
| 6 | 9705384 | Column-cobalt Blue |
|
- | |||||
| 6 | 9705324 | Column-empire Red |
|
- | |||||
| 6 | 9708077 | Column (tangerine) |
|
- | |||||
| 6 | 9705320 | Column-onyx Black |
|
- | |||||
| 7 | 9703690 | Base & Foot Assembly (white) |
|
- | |||||
| 7 | 9705388 | Base & Foot Assembly (cobalt Blue) |
|
- | |||||
| 7 | 9705348 | Base & Foot Assembly (empire Red) |
|
- | |||||
| 7 | 9708080 | Base & Foot Assembly (tangerine) |
|
- | |||||
| 7 | 9705344 | Base & Foot Assembly (onyx Black) |
|
- |
