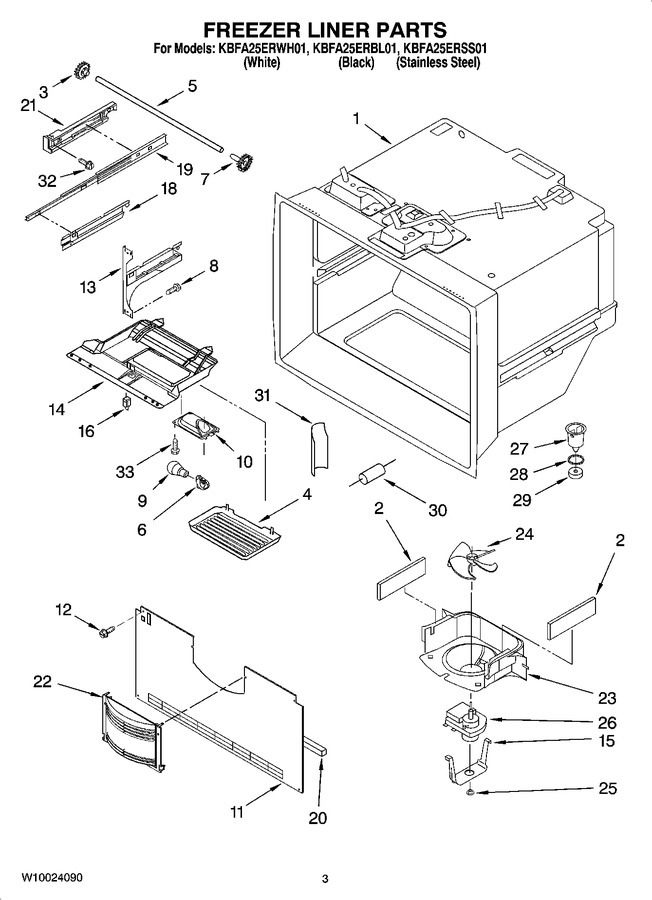

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Seviceable Part) |
|
- | |||||
| 2 | W10856123 | Gasket, Foam (Replaces: 8170897) |
|
Immediately | $ 8.06 | ||||
| 3 | 12002497 | Gear (Replaces: 8171237) |
|
Immediately | $ 22.51 | ||||
| 4 | 8208205 | Cover, Light |
|
- | |||||
| 5 | W11028221 | Shaft (Replaces: 8171278) |
|
$ 33.24 | |||||
| 6 | W11447232 | Socket, Light (Replaces: 8170839) |
|
Immediately | $ 13.87 | ||||
| 7 | 12002497 | Gear (Replaces: 8171236) |
|
Immediately | $ 22.51 | ||||
| 8 | WP98165 | Screw (Replaces: 4343675) |
|
$ 8.57 | |||||
| 9 | W11679940 | Bulb, Light (Replaces: 8208190) |
|
Immediately | $ 11.30 | ||||
| 10 | 8170838 | Housing, Light |
|
- | |||||
| 11 | W11727809 | Cover, Evaporator (Replaces: 8208288) |
|
$ 94.02 | |||||
| 12 | 4344167 | Screw |
|
- | |||||
| 13 | 8171233 | Bracket, Door (right) |
|
- | |||||
| 13 | 8171232 | Bracket, Door (left) |
|
- | |||||
| 14 | 8208206 | Housing, Lighting |
|
- | |||||
| 15 | 8208343 | Clip, Evap Motor |
|
- | |||||
| 16 | W11396033 | Switch, Light (Replaces: 8170842) |
|
Immediately | $ 37.30 | ||||
| 18 | WPW10280613 | Bracket, Basket (right) (Replaces: 8171235) |
|
$ 92.15 | |||||
| 18 | WPW10280608 | Bracket, Basket (left) (Replaces: 8171234) |
|
$ 92.15 | |||||
| 19 | 8208214 | Slide, Drawer (2) |
|
- | |||||
| 20 | W11159728 | Gasket, Bottom (Replaces: 8171083) |
|
Immediately | $ 28.86 | ||||
| 21 | 8208216 | Bracket, Slide (right) |
|
- | |||||
| 21 | 8208215 | Bracket, Slide (left) |
|
- | |||||
| 22 | WPW10175909 | Cover, Fan Shroud (Replaces: 8170881) |
|
Immediately | $ 85.72 | ||||
| 23 | 8171153 | Shroud, Evap.fan |
|
- | |||||
| 24 | 8208344 | Blade, Fan (evaporator) |
|
$ 10.42 | |||||
| 25 | WP67002780 | Grommet (2) (Replaces: 8171086) |
|
$ 8.20 | |||||
| 26 | 12002744 | Motor, Evaporator (Replaces: 8208342) |
|
Immediately | $ 126.26 | ||||
| 27 | W10815413 | Funnel, Drain (incl 28 & 29) (Replaces: 4344385) |
|
Immediately | $ 51.50 | ||||
| 28 | WPM0500703 | Seal (Replaces: 4344311) |
|
$ 11.47 | |||||
| 29 | WPB8381501 | Gasket (Replaces: 4344310) |
|
$ 7.78 | |||||
| 30 | 12002355 | Thermistor (Replaces: 8208278) |
|
Immediately | $ 49.00 | ||||
| 31 | WP67003924 | Cover, Thermistor (Replaces: 8208202) |
|
$ 8.21 | |||||
| 32 | WP489474 | Screw (Replaces: 4343690) |
|
Immediately | $ 8.55 | ||||
| 33 | WPW10139210 | Screw (Replaces: 4343670) |
|
$ 8.03 | |||||
| 33 | 8208199 | Harness, Lights (freezer) |
|
- | |||||
| 33 | N/A | Following Parts Not Illustrated |
|
- |
